8X28AWG+4X28AWG+1PX30AWG

8X28AWG+4X28AWG+1PX30AWG

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Quantity SP30-010-462 REV.1
Type Medical Wire
Material Silver plated copper
Color Black
AWG specification 28
OD 6.00±0.25
Jacket PVC
Characteristic impedance 100±10
138-1629-4533
Attachment Download

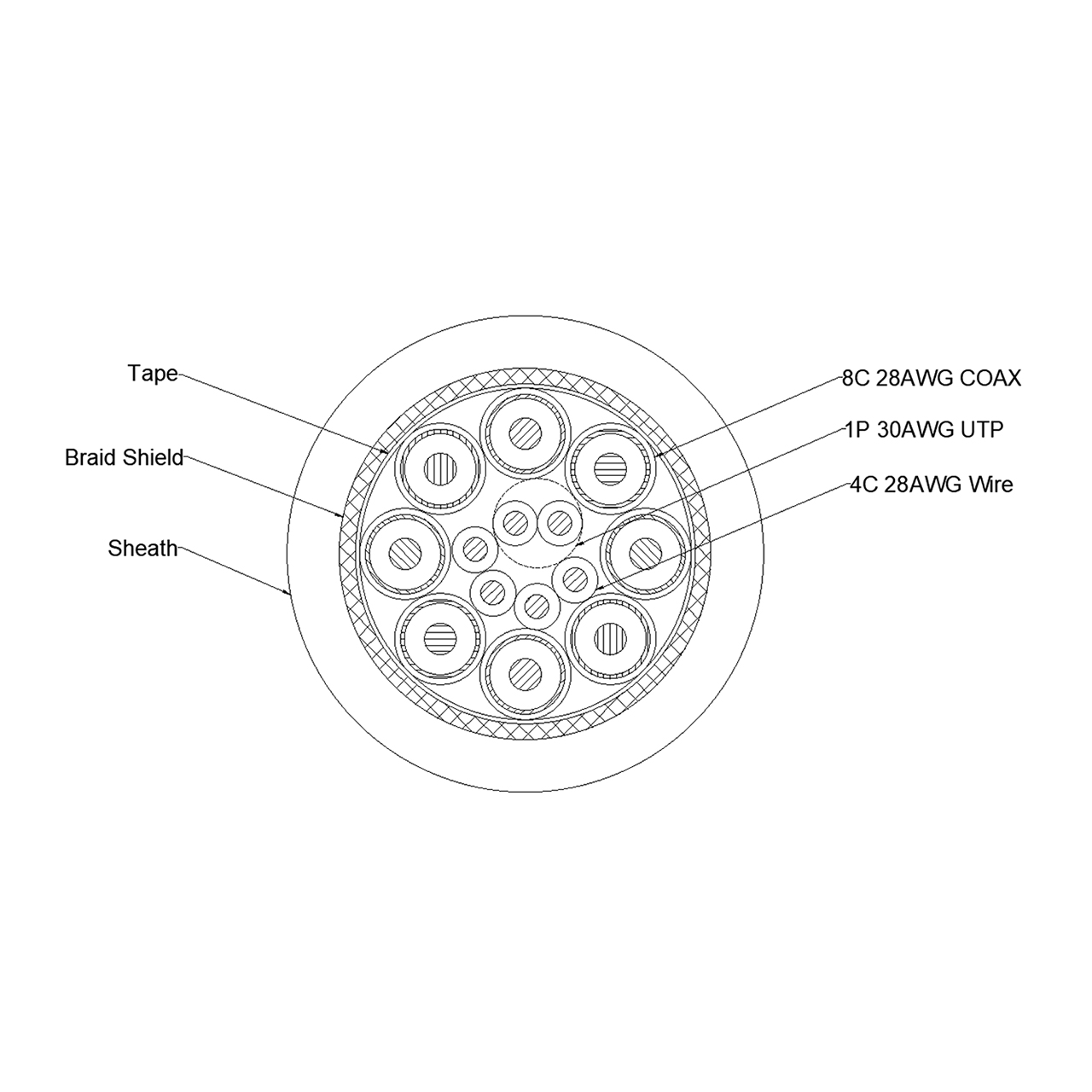

DetailDocument


Conductor

        AWG:            8x28                              4x28                       1Px30

        Material :      Silver plated copper     Tinned copper        Tinned copper

        Stranding:     19/0.08 No./mm          19/0.08 No./mm     7/0.10 No./mm





Insulation

        Material:      ePTFE/PET       FEP                   FEP

        Diameter:    0.98 mm          0.54 mm          0.56 mm




Braid Shield

        Material:    Tinned copper

        Strand :         0.08 mm

        Coverage :    Min.90%




Outer Jacket

        Material:       PVC

        Thickness:     0.65 mm

        Diameter :       6.00±0.25 mm


Approximate specification product
