4PX28AWG

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-212 REV.2

Type Medical Wire

Material Tinned copper

Color White

AWG specification 28

OD 5.0±0.3

Jacket Medical PVC

Characteristic impedance 100±10

138-1629-4533

Attachment Download

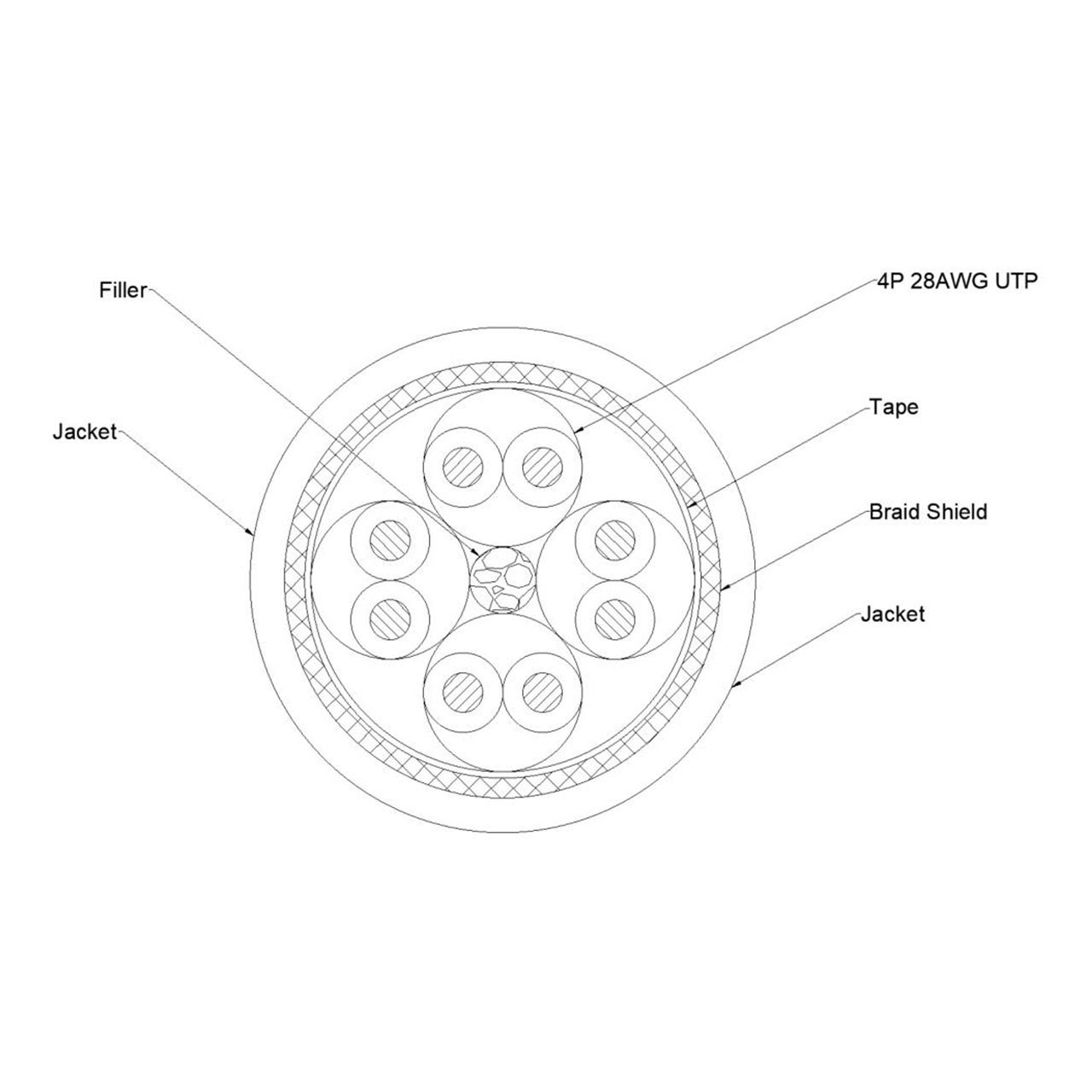

DetailDocument

Conductor

AWG： 4Px28

Material ： Tinned copper

Stranding : 19/0.08 No./mm

Insulation

Material： HDPE

Thickness： 0.20 mm

Diameter : 0.80 mm

Braid Shield

Material： Tinned copper

Strand： 0.08 mm

Coverage： Min.90 %

Jacket

Material： PVC

Thickness(Nom) : 0.6 mm

Diameter : 5.0±0.3 mm
