1PX40AWG+2CX42AWG+1CX38AWG

QR code
Quantity SP30-010-511
Type Medical Wire
Material Tinned copper alloy
Color Ivory
AWG specification 40
OD 1.08±0.08
Jacket Medical PVC
Characteristic impedance 100±10
138-1629-4533
Attachment Download
DetailDocument

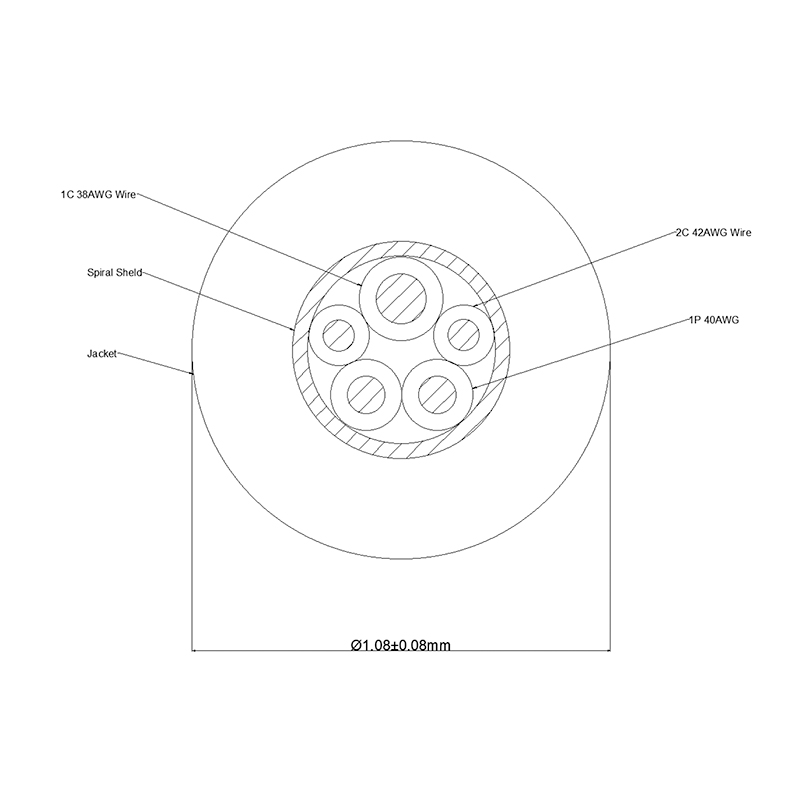

Conductor

        AWG:            1Px40                             2Cx42                          1Cx38

        Material:       Tinned copper alloy     Silver plated copper alloy

        Stranding:     7/0.03 No./mm      7/0.025 No./mm         7/0.04 No./mm





Insulation

        Material:      Fluoropolymer

        Thickness:    0.038 mm        0.033 mm      0.08 mm

        Diameter:     0.165 mm        0.14 mm        0.28 mm




Jacket

        Material:       Medical PVC

        Thickness:     0.26 mm

        Diameter :       1.08±0.08 mm


Approximate specification product
