3PX28AWG

1/1

3PX28AWG

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-376 Rev.1

Type Medical Wire

Material Tinned copper

Color Gray

AWG specification 28

OD 4.4±0.2

Jacket TPV

Characteristic impedance 100±10

138-1629-4533

Attachment Download

DetailDocument

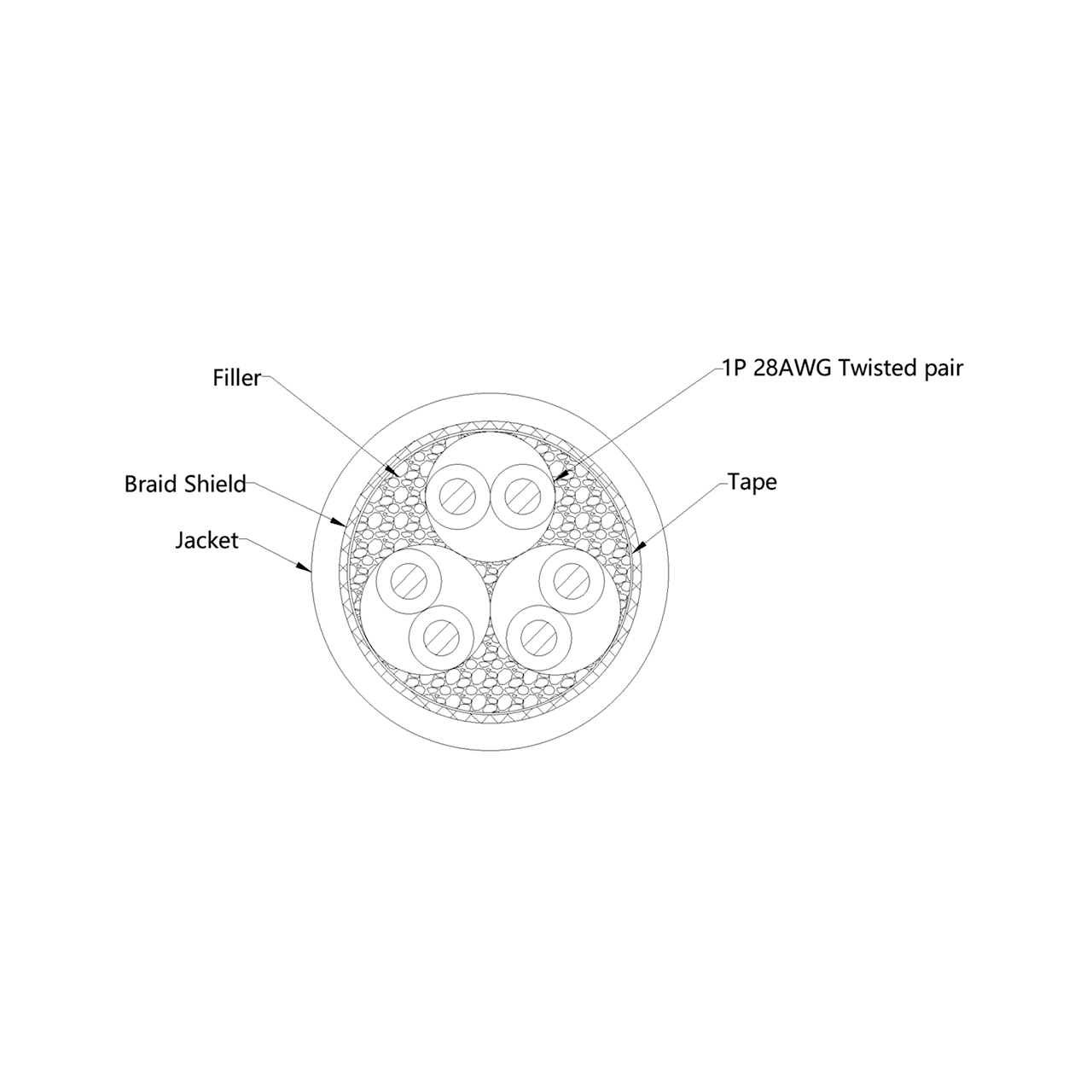

Conductor

AWG： 3Px28

Material ： Tinned copper

Stranding : 19/0.08 No./mm

Insulation

Material： HDPE

Thickness： 0.20 mm

Diameter : 0.80 mm

Jacket

Material： TPV(Color: Cool Gray)

Thickness(Nom) : 0.5 mm

Diameter : 4.4±0.2 mm
