7X42AWG+5X38AWG

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-115 REV.1

Type Medical Wire

Material Tinned copper

Color Black

AWG specification 42

OD 1.50±0.08

Jacket FEP

Characteristic impedance 50±5

138-1629-4533

Attachment Download

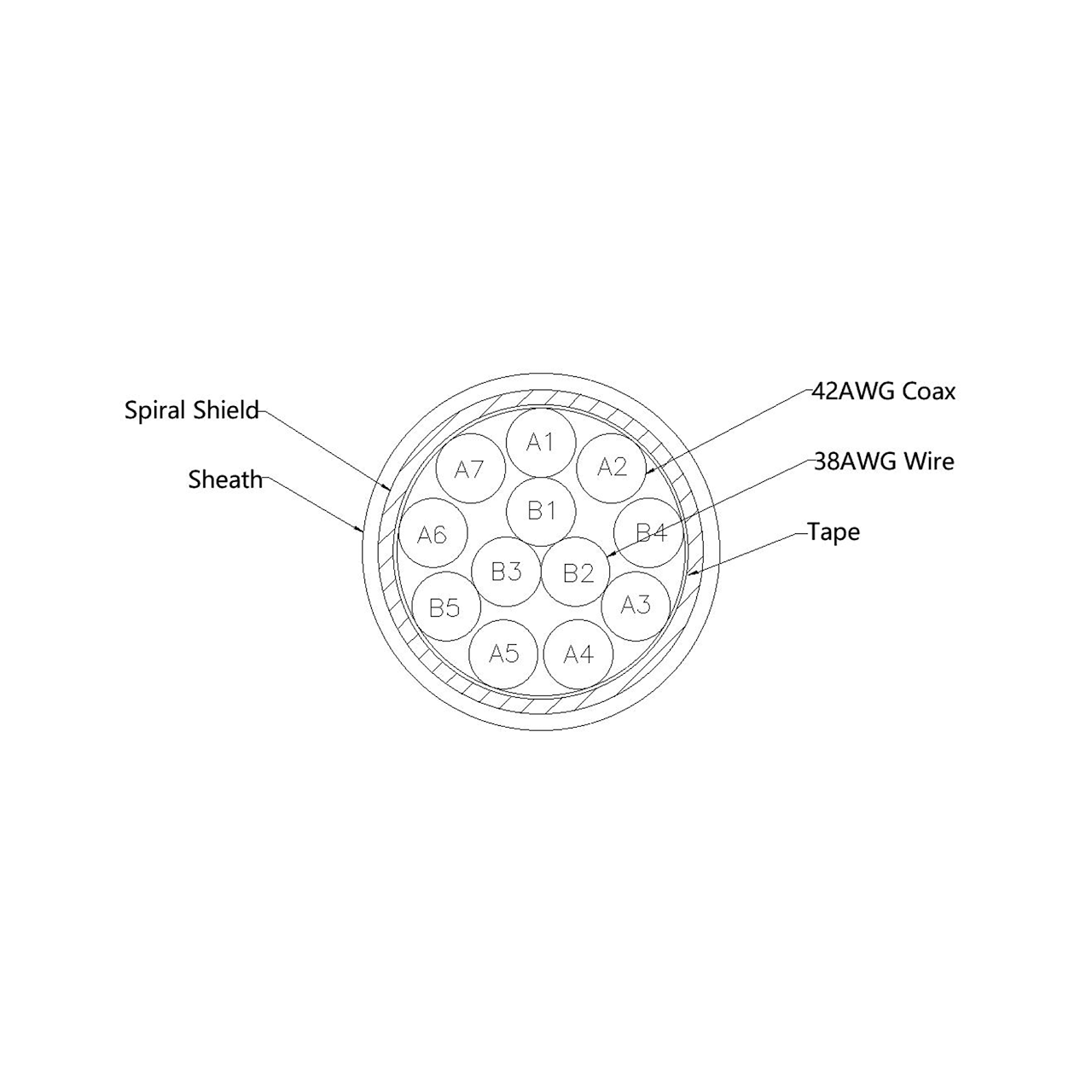

DetailDocument

Conductor

AWG： 7X42 5x38

Material ： Silver plated copperalloy Tinned copper alloy

Stranding： 7/0.025 No./mm 7/0.04 No./mm

Insulation

Material： PFA FEP

Thickness： 0.06 mm 0.09 mm

Diameter： 0.20 mm 0.30 mm

Jacket

Material： FEP

Thickness： 0.06 mm

Diameter : 1.50±0.08 mm
