Composite cable

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-529 Rev.1

Type Medical Wire

Material Tinned Copper

Color Black

AWG specification 24

OD 8.6±0.3

Jacket Medical TPU

Characteristic impedance NA

138-1629-4533

Attachment Download

DetailDocument

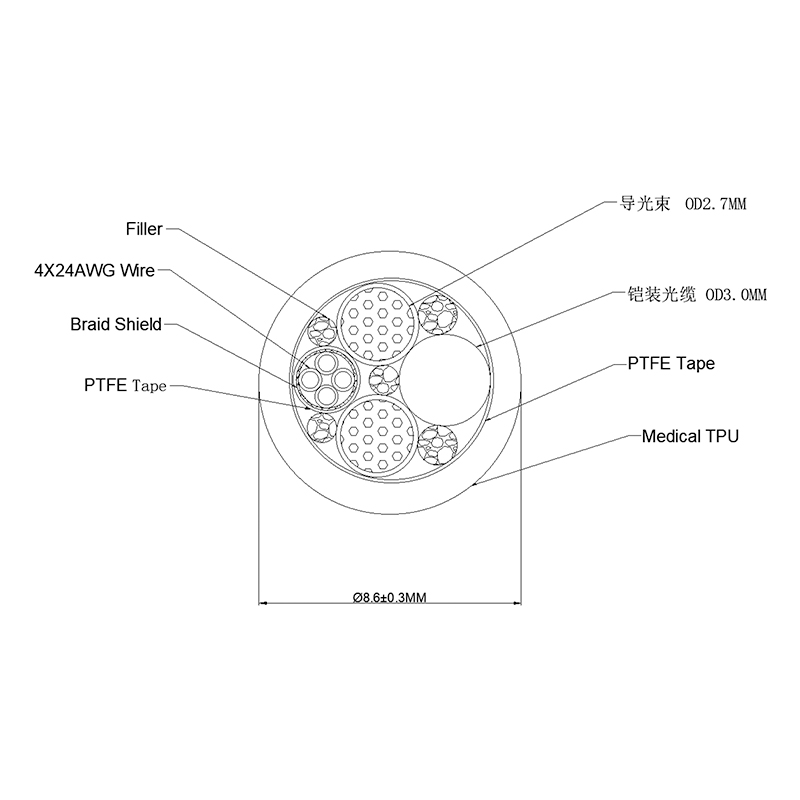

Conductor

AWG： 4x24

Material ： Tinned Copper

Stranding : 37/0.08 No./mm

Insulation

Material： Fluoroploymer

Thickness： 0.10 mm

Diameter : 0.76 mm

Jacket

Material： Medical TPU

Thickness(Nom) : 0.95 mm

Diameter : 8.6±0.3 mm
