4PX26AWG CAT 6A

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-602 Rev.1

Type Medical Wire

Material Tinned copper

Color Black

AWG specification 26

OD 6.8±0.3

Jacket Medical TPU

Characteristic impedance 100±10

138-1629-4533

Attachment Download

DetailDocument

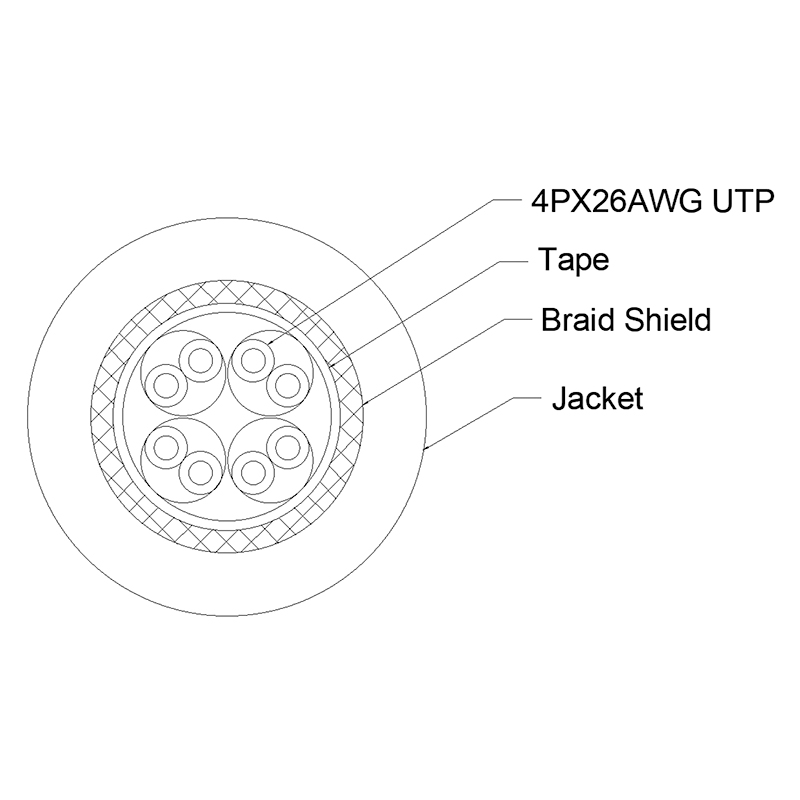

Conductor

AWG： 4Px26

Material ： Tinned copper

Stranding : 19/0.10 No./mm

Insulation

Material： HDPE

Thickness： 0.24 mm

Diameter : 0.98 mm

Sheath

Material： TPU

Thickness(Nom) : 0.8 mm

Diameter : 6.8±0.3 mm
