1/1

(28AWG2P+B)+22AWG6C+PTFE+B

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-603 REV.1

Type Medical Wire

Material Tinned copper

Color Black

AWG specification 28

OD 6.3±0.3

Jacket TPU

Characteristic impedance NA

138-1629-4533

Attachment Download

DetailDocument

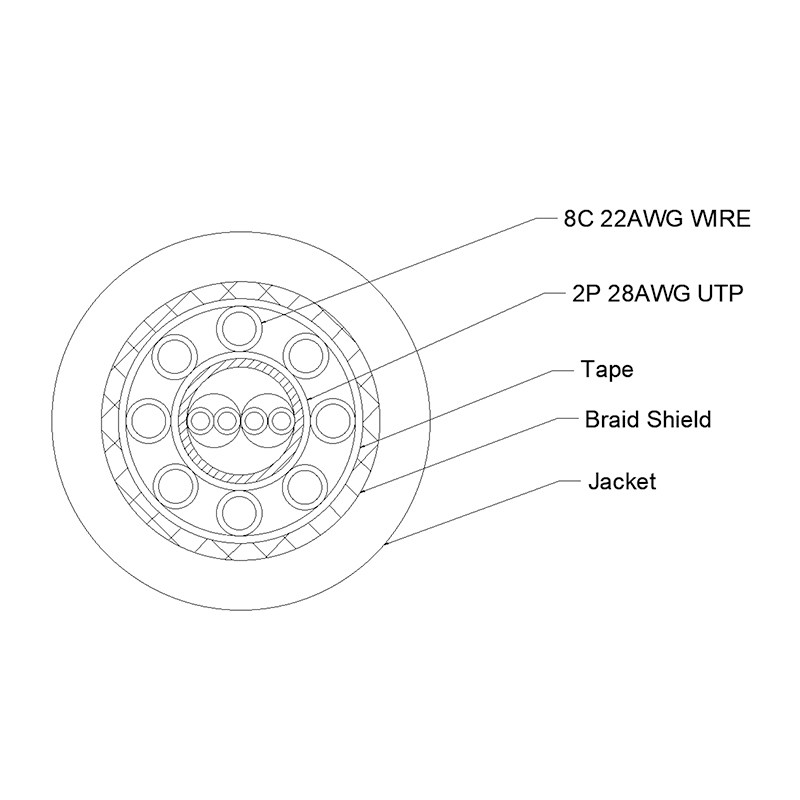

Conductor

AWG： 2Px28 8x22

Material ： Tinned coper

Stranding： 19/0.08 No./mm 65/0.08 No./mm

Insulation

Material： Fluoropolymer

Thickness： 0.08 mm 0.13 mm

Diameter： 0.56 mm 1.00 mm

Jacket

Material： TPU

Thickness： 0.7 mm

Diameter : 6.3±0.3 mm
