1/1

22AWG10C+（30AWG1P(120ohm)+B）

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-605 REV.1

Type Medical Wire

Material Tinned copper

Color Black

AWG specification 22

OD 6.8±0.3

Jacket TPU

Characteristic impedance 120

138-1629-4533

Attachment Download

DetailDocument

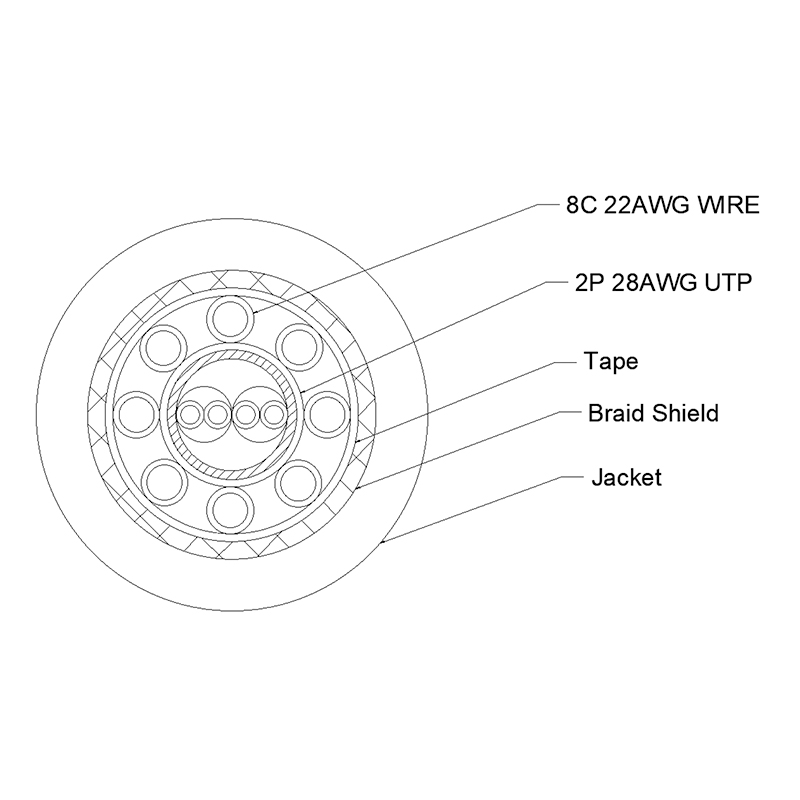

Conductor

AWG： 1Px30 10x22

Material ： Tinned coper

Stranding： 7/0.10 No./mm 65/0.08 No./mm

Insulation

Material： Fluoropolymer

Thickness： 0.42 mm 0.13 mm

Diameter： 1.15 mm 1.00 mm

Jacket

Material： TPU

Thickness： 0.8 mm

Diameter : 6.8±0.3 mm
