1/1

28AWG5P+24AWG2P+B

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-606 REV.1

Type Medical Wire

Material Tinned copper

Color Black

AWG specification 28

OD 5.6±0.3

Jacket TPU

Characteristic impedance 70

138-1629-4533

Attachment Download

DetailDocument

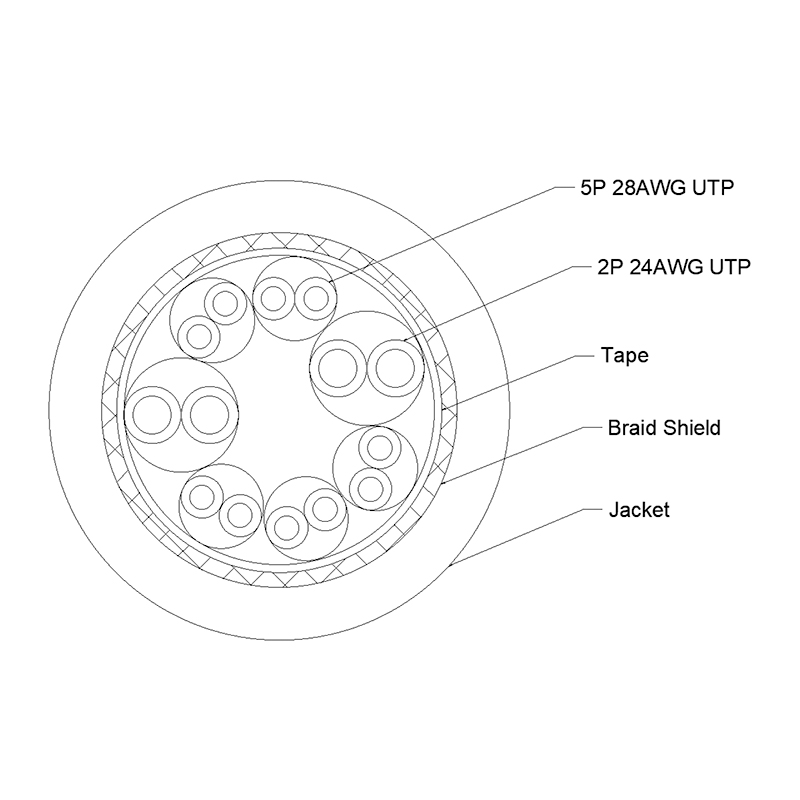

Conductor

AWG： 5Px28 2Px24

Material ： Tinned coper

Stranding： 19/0.08 No./mm 37/0.08 No./mm

Insulation

Material： Fluoropolymer

Thickness： 0.08 mm 0.10 mm

Diameter： 0.56 mm 0.76 mm

Jacket

Material： TPU

Thickness： 0.7 mm

Diameter : 5.6±0.3 mm
