5CX20AWG（ETFE）UL10584 +2CX24AWG+B

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-607 REV.1

Type Medical Wire

Material Tinned copper

Color Black

AWG specification 20

OD 5.2±0.2

Jacket TPU

Characteristic impedance NA

138-1629-4533

Attachment Download

DetailDocument

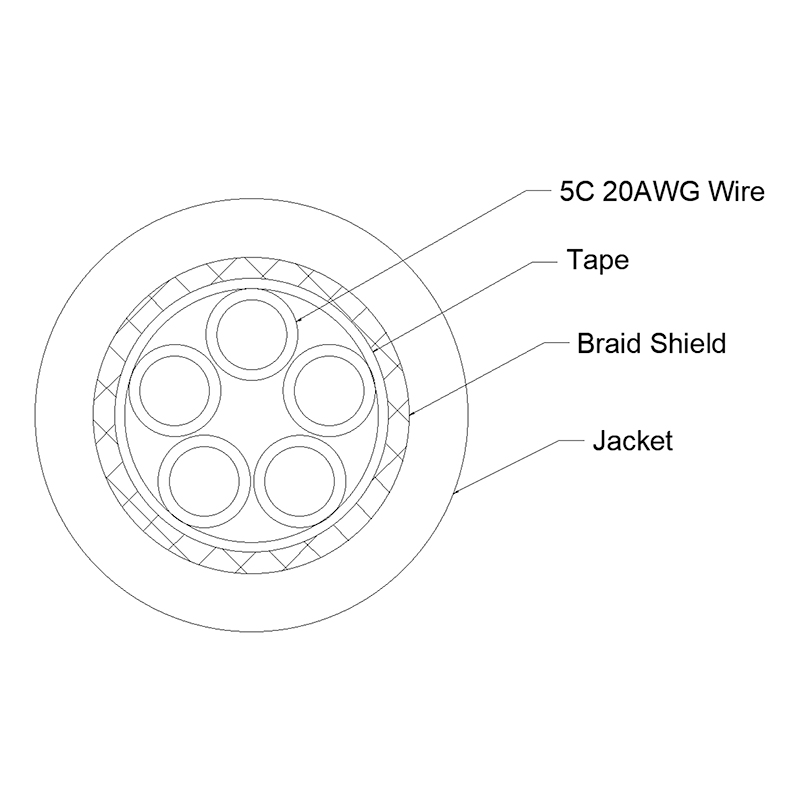

Conductor

AWG： 5Cx20

Material ： Tinned coper

Stranding： 65/0.10 No./mm

Insulation

Material： Fluoropolymer

Thickness： 0.13 mm

Diameter： 1.20 mm

Jacket

Material： TPU

Thickness： 0.7 mm

Diameter : 5.2±0.2 mm
