UL2464 10AWGX2C+FB

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-608 REV.1

Type Medical Wire

Material Tinned Copper

Color Black

AWG specification 10

OD 11.2±0.2

Jacket Medical TPU

Characteristic impedance NA

138-1629-4533

Attachment Download

DetailDocument

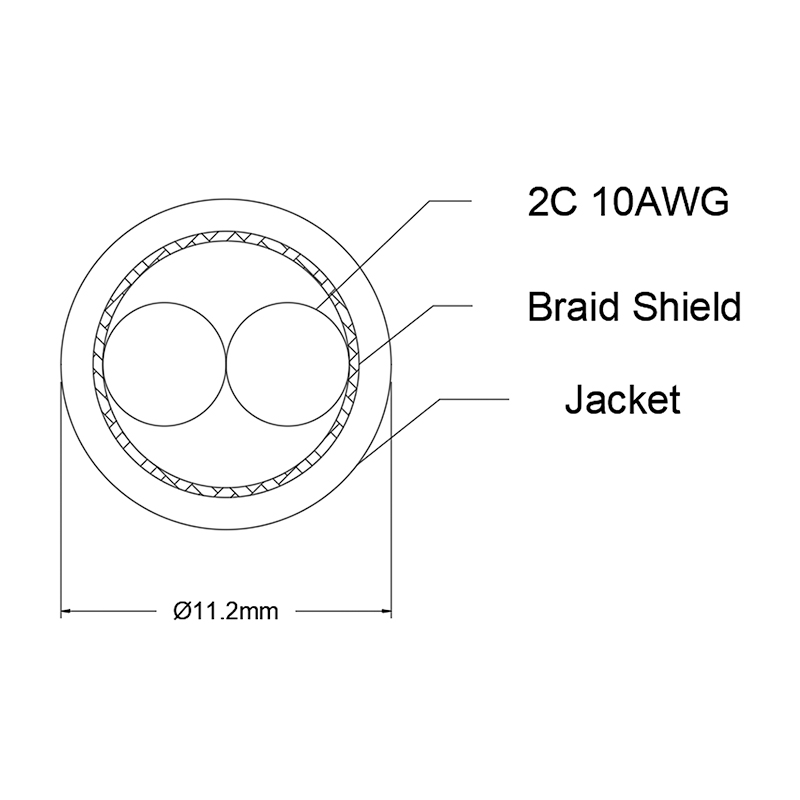

Conductor

AWG： 2Cx10

Material ： Tinned copper

Stranding : 262/0.16 No./mm

Insulation

Material： 45P 105℃ PVC

Thickness： 0.26 mm

Diameter : 4.1 mm

Sheath

Material： TPU

Thickness(Nom) : 0.9 mm

Diameter : 11.2±0.2 mm
