1PX22AWG+B

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-613REV.1

Type Medical Wire

Material Tinned Copper

Color Black

AWG specification 22

OD 3.8±0.2

Jacket Medical PVC

Characteristic impedance NA

138-1629-4533

Attachment Download

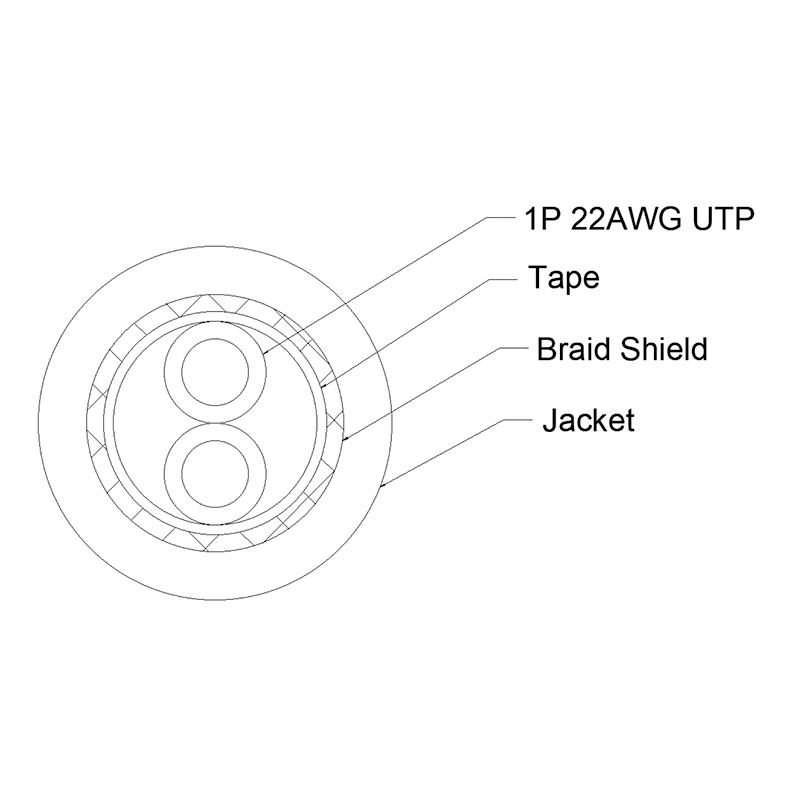

DetailDocument

Conductor

AWG： 1Px22

Material ： Tinned copper

Stranding : 65/0.08 No./mm

Insulation

Material： Fluoropolymer

Thickness： 0.13 mm

Diameter : 1.00 mm

Sheath

Material： TPU

Thickness(Nom) : 0.6 mm

Diameter : 3.8±0.2 mm
