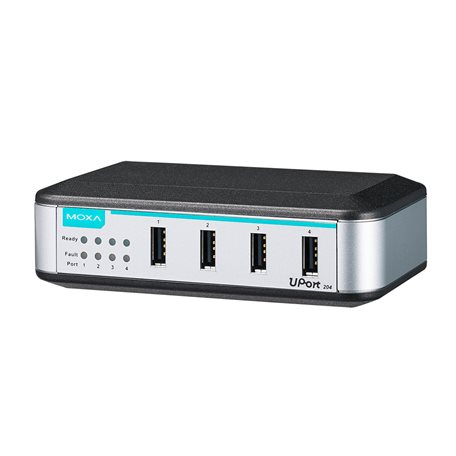

Quantity UPort 204/207 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument

  • Speed

    12 Mbps, 480 Mbps

  • USB Connector

    USB Type B

  • USB Standards

    USB 1.1/2.0 compliant

  • No. of USB Ports

    UPort 204: 4
    UPort 207: 7

  • Input Voltage

    12 to 40 VDC

  • Input Current

    UPort 204: 1.21 A @ 12 VDC
    UPort 207: 2.17 A @ 12 VDC

  • Housing

    Polycarbonate (PC)

  • Dimensions

    UPort 204: 70 x 35 x 120 mm (2.76 x 1.38 x 4.72 in)
    UPort 207: 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in)

  • Weight

    Packaged
    UPort 204: 805 g (1.77 lb)
    UPort 207: 890 g (1.96 lb)
    Product only:
    UPort 204: 800 g (1.76 lb)
    UPort 207: 875 g (1.93 lb)

  • Operating Temperature

    0 to 60°C (32 to 140°F)

  • Storage Temperature (package included)

    -20 to 75°C (-4 to 167°F)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV
    IEC 61000-4-5 Surge: Power: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-3

  • Freefall

    IEC 60068-2-34

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    UPort 204: 1,577,573 hrs
    UPort 207: 1,059,201 hrs

  • Standards

    Telcordia (Bellcore), GB


Approximate specification product
