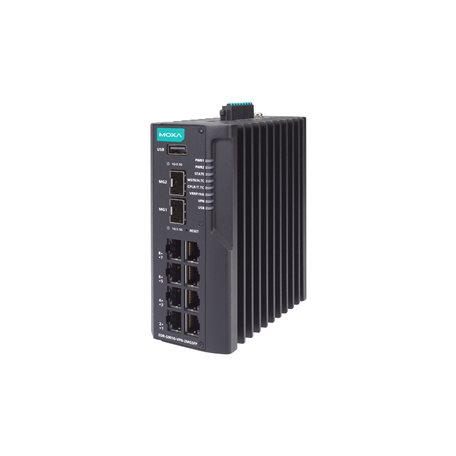

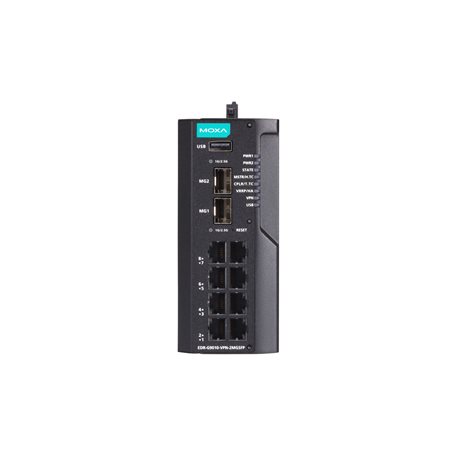

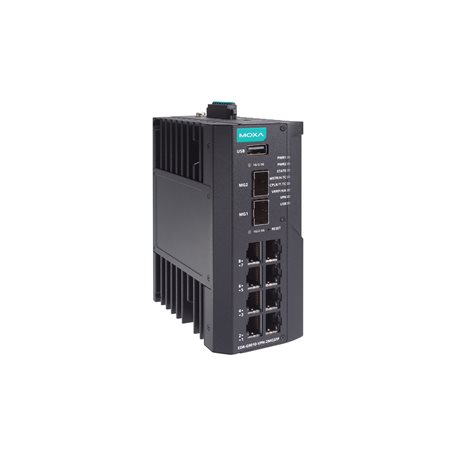

Quantity EDR-G9010 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • Alarm Contact Channels

    Resistive load: 1 A @ 24 VDC

  • Buttons

    Reset button

  • Digital Input Channels

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    8

  • 1000BaseSFP Slots

    2

  • Standards

    IEEE 802.1Q for VLAN Tagging
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    Static Port Trunk
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
    IEEE 802.1X for authentication

  • Broadcast Forwarding

    IP directed broadcast, broadcast forwarding

  • Management

    Back Pressure Flow Control
    DDNS
    DHCP Server/Client
    Web Console (HTTP/HTTPS)
    LLDP
    QoS/CoS/ToS
    SNMPv1/v2c/v3
    Telnet
    TFTP
    HTTPS
    SSH

  • Redundancy Protocols

    RSTP
    STP
    Turbo Ring v2

  • Routing

    Throughput: 350K packets per second (max. 1500 Mbps)

  • Routing Table

    Max. 4K routing rules

  • Concurrent Connections

    Max. 400K

  • Connections Per Second

    Max. 20K

  • Routing Redundancy

    VRRP

  • Security

    Secure Boot
    IPsec
    L2TP (server)
    RADIUS
    Trust access control

  • Time Management

    NTP Server/Client
    SNTP

  • Unicast Routing

    OSPF
    RIPV1/V2
    Static Route

  • Multicast Routing

    Static Route

  • Filter

    IGMP v1/v2/v3

  • VLAN ID Range

    VID 1 to 4094

  • IGMP Groups

    256

  • Max. No. of VLANs

    16

  • LED Indicators

    PWR1, PWR2, STATE, MSTR/H.TC, CPLR/T.TC, VRRP/HA, VPN, USB

  • Technology

    ARP-Flood
    FIN Scan
    ICMP-Death
    NEWWithout-SYN Scan
    NMAP-ID Scan
    NMAP-Xmas Scan
    Null Scan
    SYN/FIN Scan
    SYN/RST Scan
    SYN-Flood
    Xmas Scan

  • Filter

    DDoS
    Ethernet protocols
    ICMP
    IP address
    MAC address
    Ports

  • Stateful Inspection

    Router firewall
    Transparent (bridge) firewall

  • Deep Packet Inspection

    DNP3
    EtherNet/IP
    IEC 60870-5-104
    IEC 61850 MMS
    Modbus TCP
    Modbus UDP
    Omron FINS
    Siemens S7 Comm.
    Additional protocols will be supported through future firmware updates.

  • Intrusion Prevention System

    Requires an additional license.

  • Throughput

    Max. 350K packets per second (max. 1500 Mbps)

  • Authentication

    MD5 and SHA (SHA-256)
    RSA (key size: 1024-bit, 2048-bit)
    X.509 v3 certificate

  • Concurrent VPN Tunnels

    Max. 250 IPsec VPN tunnels

  • Encryption

    DES
    3DES
    AES-128
    AES-192
    AES-256

  • Protocols

    IPsec
    L2TP (server)
    PPTP (client)

  • Throughput

    Max. 300 Mbps (Conditions: AES-256, SHA-256)

  • Features

    1-to-1
    N-to-1
    NAT loopback
    Port forwarding

  • Event Type

    Firewall event
    VPN event

  • Media

    Local storage
    SNMP Trap
    Syslog server

  • Console Port

    RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

  • Connector

    USB Type-C

  • Connection

    Removable terminal block

  • Input Voltage

    EDR-G9010-VPN-2MGSFP(-T) models:
    12/24/48 VDC (DNV-certified for 24 VDC)
    EDR-G9010-VPN-2MGSFP-HV(-T) models:
    120/240 VDC/VAC

  • Operating Voltage

    non-HV(-T) models:
    9.6 to 60 VDC
    -HV(-T) models:
    88 to 300 VDC, 90 to 264 VAC

  • Input Current

    EDR-G9010-VPN-2MGSFP(-T) models:
    1.51 A @ 12 VDC
    0.70 A @ 24 VDC
    0.35 A @ 48 VDC
    EDR-G9010-VPN-2MGSFP-HV(-T) models:
    0.28 A @ 120 VAC
    0.18 A @ 240 VAC
    0.15 A @ 120 VDC
    0.08 A @ 240 VDC

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • Dimensions

    EDR-G9010-VPN-2MGSFP(-T) models:
    58 x 135 x 105 mm (2.28 x 5.31 x 4.13 in)
    EDR-G9010-VPN-2MGSFP-HV(-T) models:
    64 x 135 x 105 mm (2.52 x 5.31 x 4.13 in)

  • Weight

    EDR-G9010-VPN-2MGSFP(-T) models:
    1030 g (2.27 lb)
    EDR-G9010-VPN-2MGSFP-HV(-T) models:
    1150 g (2.54 lb)

  • Installation

    DIN-rail mounting (DNV-certified)
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)
    EDR-G9010-VPN-2MGSFP(-T) models: DNV-certified for -25 to 70°C (-13 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    IEC 62368-1
    UL 62368-1
    IEC 60950-1
    UL 60950-1

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Industrial Cybersecurity

    IEC 62443-4-1
    IEC 62443-4-2

  • Railway

    EDR-G9010-VPN-2MGSFP(-T) models: EN 50121-4

  • Traffic Control

    EDR-G9010-VPN-2MGSFP(-T) models: NEMA TS2

  • Maritime

    EDR-G9010-VPN-2MGSFP(-T) models: IEC 60945, DNV

  • Power Substation

    IEEE 1613
    IEC 61850-3 Edition 2.0

  • Hazardous Locations

    EDR-G9010-VPN-2MGSFP(-T) models: ATEX, Class I Division 2

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Time

    EDR-G9010-VPN-2MGSFP(-T) models:
    1,080,807 hrs
    EDR-G9010-VPN-2MGSFP-HV(-T) models:
    509,714 hrs

  • Standards

    Telcordia (Bellcore), GB
