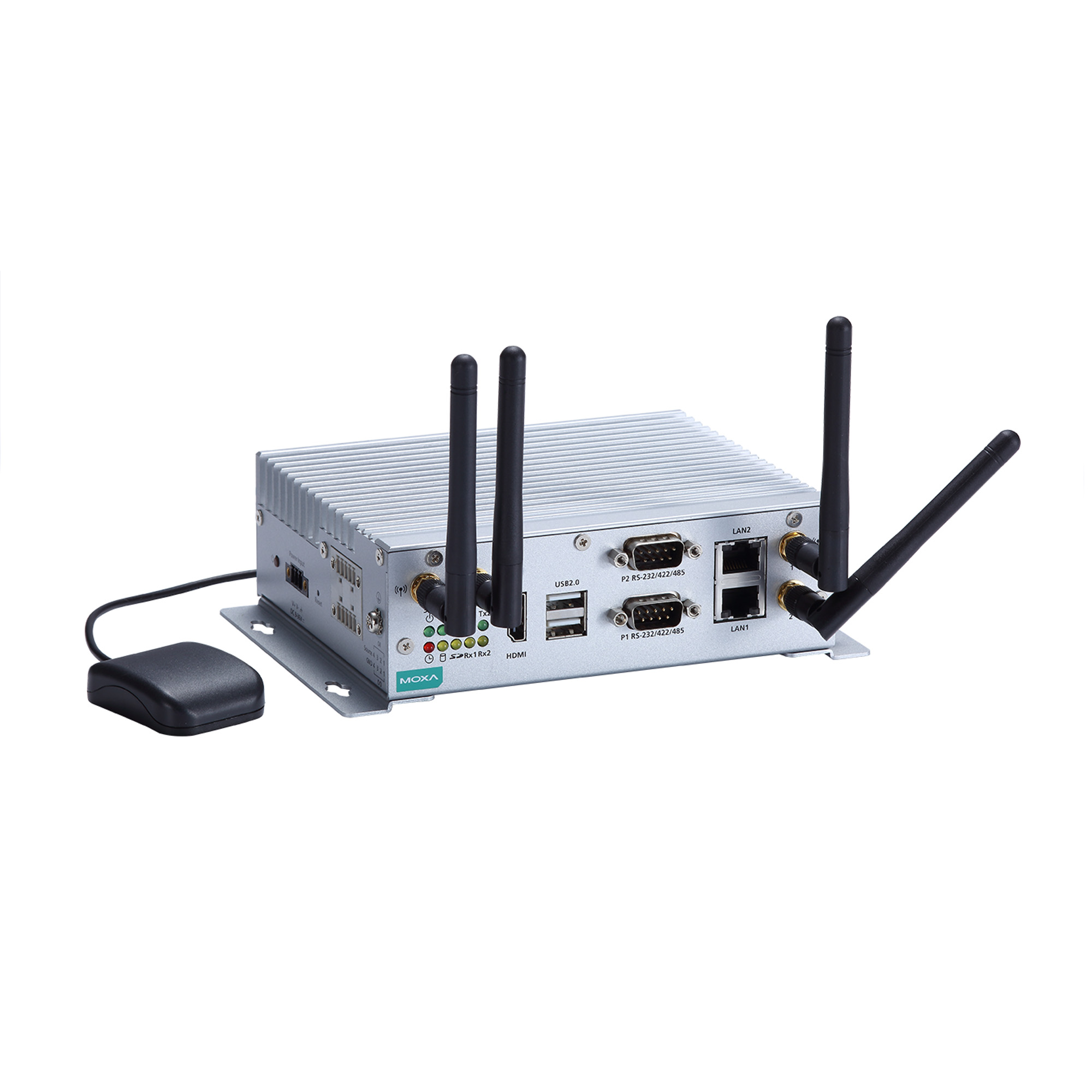

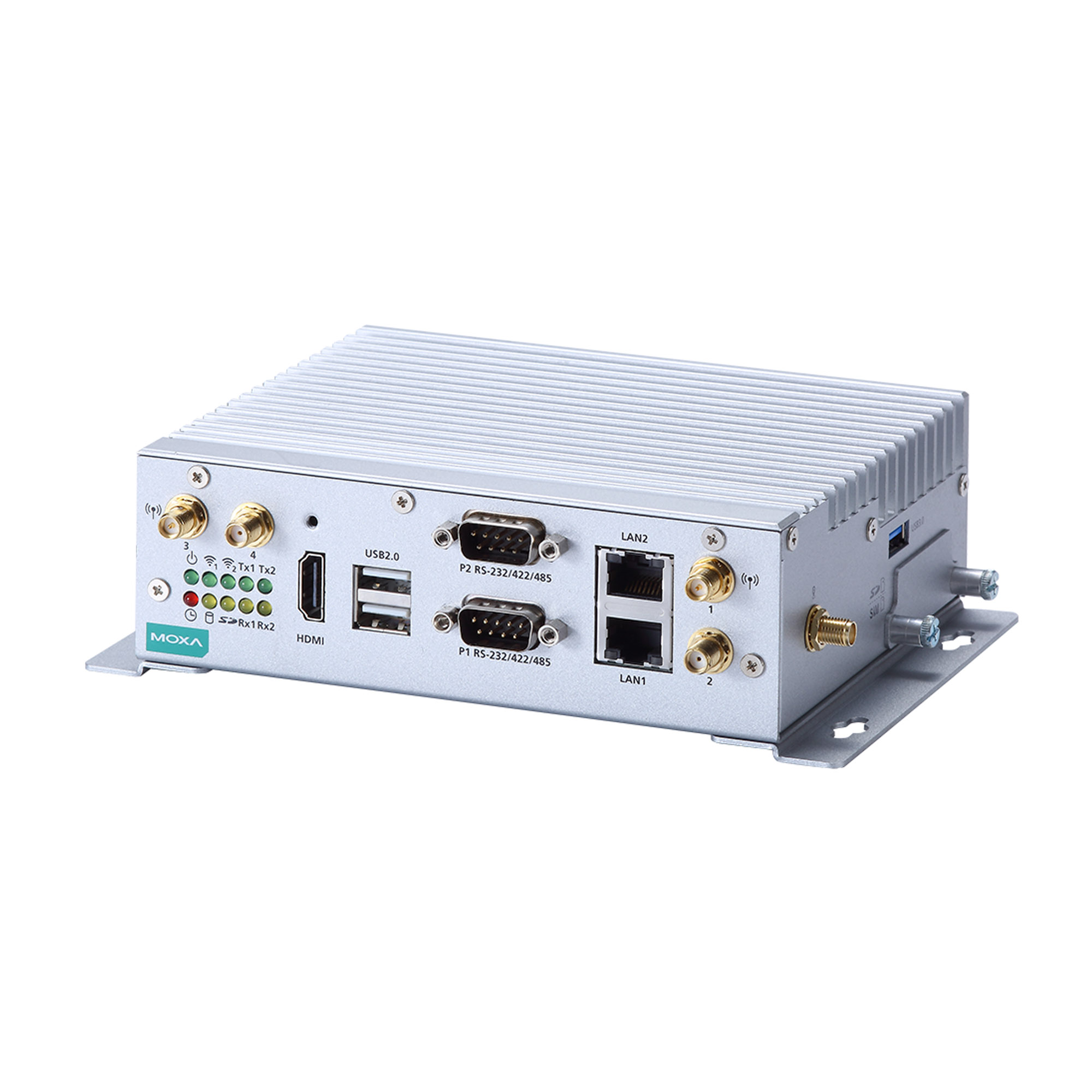

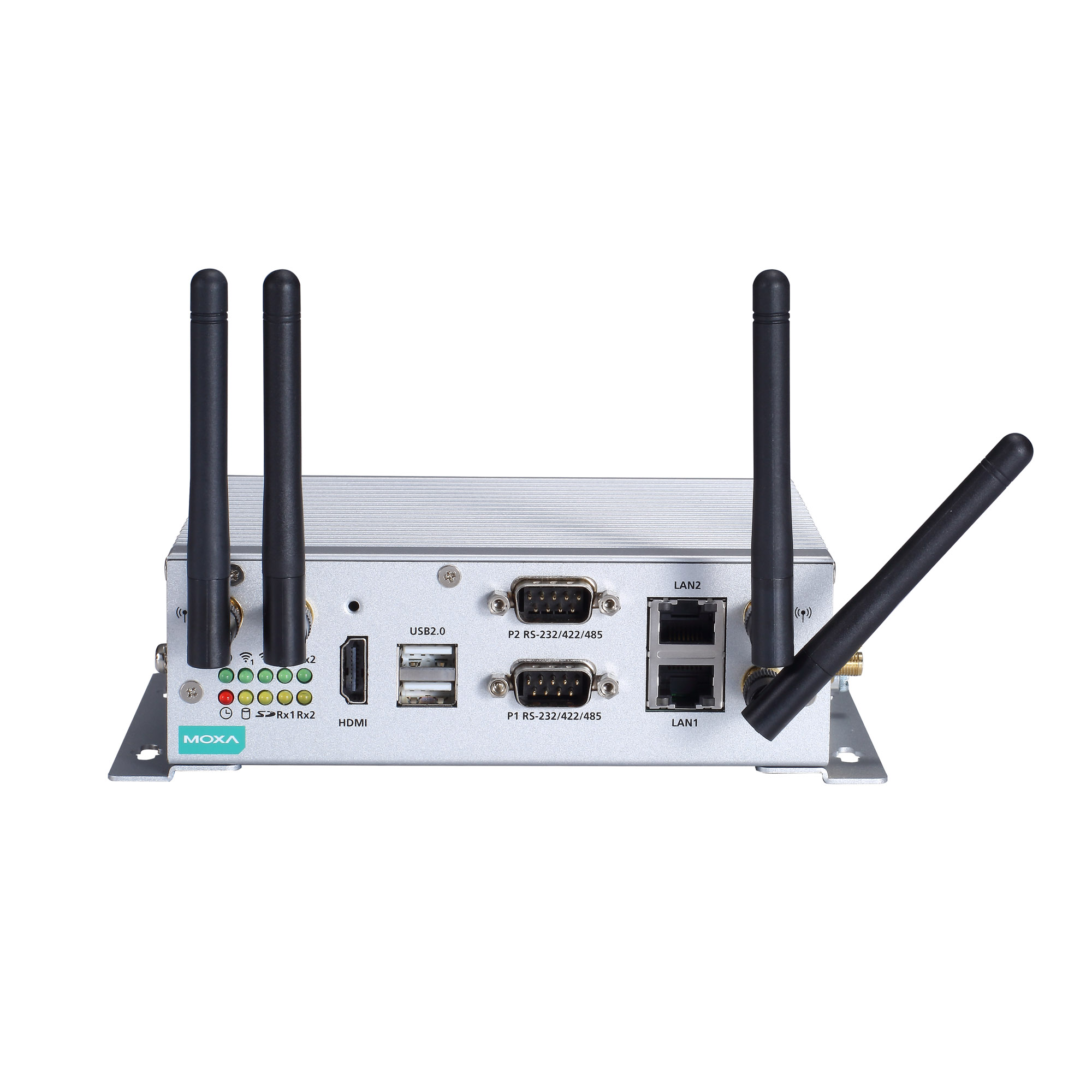

V2201

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Quantity V2201 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument

  • CPU

    E1 Models: Intel Atom® Processor E3815 (Single core, 512 K cache, 1.46 GHz)
    E2 Models: Intel Atom® Processor E3826 (Dual core, 1 M cache, 1.46 GHz)
    E4 Models: Intel Atom® Processor E3845 (Quad core, 2 M cache, 1.91 GHz)

  • System Memory Pre-installed

    4 GB DDR3L

  • System Memory Slot

    SODIMM DDR3/DDR3L slot x 1

  • Supported OS

    Windows Embedded Standard 7 (WS7E) 64-bit
    Windows 10 Embedded IoT Enterprise 2016 LTSB Entry 64-bit
    Windows 10 Embedded IoT Enterprise 2019 LTSC Entry 64-bit
    Windows 10 Embedded IoT Enterprise 2021 LTSC Entry 64-bit
    Linux Debian 9 OS image (Kernel 4.9)
    Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers

  • Storage Slot

    mSATA slots x 1
    SD 3.0 (SDHC/SDXC) socket x 1

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    RS-232/422/485 ports x 2, software selectable (DB9 male)

  • USB 2.0

    USB 2.0 hosts x 2, type-A connectors

  • USB 3.0

    USB 3.0 hosts x 1, type-A connectors

  • Digital Input

    DIs x 4

  • Digital Output

    DOs x 4

  • Expansion Slots

    mPCIe slots x 2

  • Video Output

    HDMI x 1, HDMI connector (type A)

  • Wi-Fi Antenna Connector

    RP-SMA x 2

  • Cellular Antenna Connector

    SMA x 2

  • Number of SIMs

    1

  • SIM Format

    Mini

  • GPS Antenna Connector

    SMA x 1

  • Isolation

    3K VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    24 to 30 VDC

  • System

    SD slots x 1
    Power x 1
    Storage x 1
    Programmable x 1

  • Wireless Signal Strength

    Cellular/Wi-Fi x 2

  • LAN

    1 per port (10/100/1000 Mbps)

  • Serial

    2 per port (Tx, Rx)

  • Baudrate

    50 bps to 115.2 kbps

  • Flow Control

    RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Isolation

    N/A

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    9 to 36 VDC

  • Power Connector

    Terminal block (for DC models)

  • Power Consumption (Max.)

    2000 mA @ 9 VDC

  • Power Consumption

    18 W (max.)

  • Housing

    Aluminum

  • IP Rating

    IP30

  • Dimensions (with ears)

    178 x 52.5 x 120.2 mm (7.01 x 2.07 x 4.73 in)

  • Dimensions (without ears)

    150 x 48.8 x 120.2 mm (5.91 x 1.92 x 4.73 in)

  • Weight

    940 g (2.09 lb)

  • Installation

    V2201-E4-W-T-LX: DIN-rail mounting
    All Other Models: Wall mounting

  • Operating Temperature

    E1/E2 Models: -40 to 85°C (-40 to 185°F)
    E4 Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Safety

    EN 60950-1
    UL 508
    UL 60950-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-64

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    408,275 hrs

  • Standards

    Telcordia (Bellcore), GB


Approximate specification product
