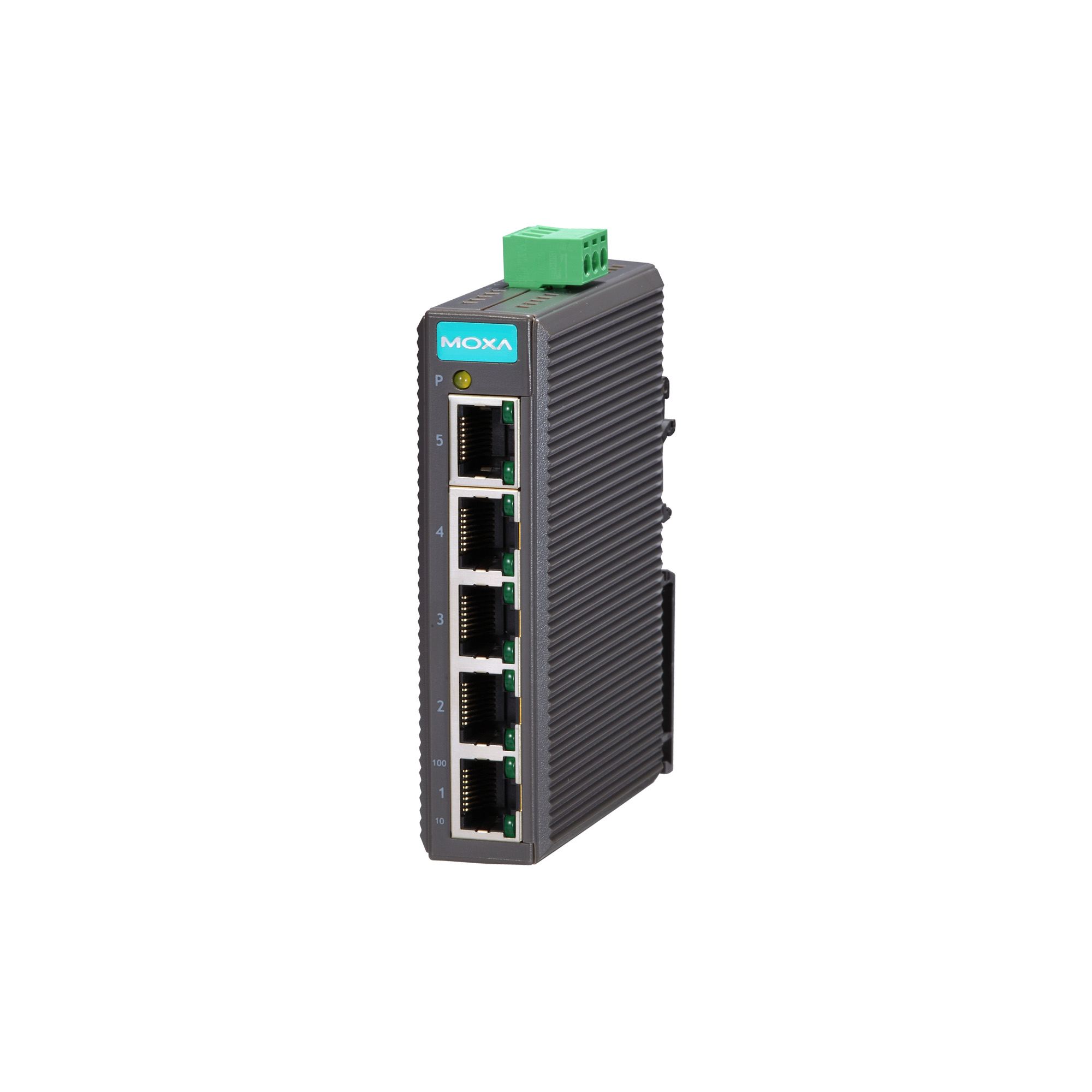

Quantity EDS-205 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control

  • 10/100BaseT(X) Ports (RJ45 connector)

    Full/Half duplex mode
    Auto MDI/MDI-X connection
    Auto negotiation speed

  • Processing Type

    Store and Forward

  • MAC Table Size

    1 K

  • Packet Buffer Size

    512 kbits

  • Input Voltage

    24 VDC

  • Input Current

    0.11 A @ 24 VDC

  • Operating Voltage

    12 to 48 VDC

  • Connection

    1 removable 3-contact terminal block(s)

  • Overload Current Protection

    1.1 A @ 24 VDC

  • Reverse Polarity Protection

    Supported

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions

    24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)

  • Weight

    135 g (0.30 lb)

  • Installation

    DIN-rail mounting

  • Operating Temperature

    -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 60950-1
    UL 508
    EN 62368-1 (LVD)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Freefall

    IEC 60068-2-31

  • Time

    3,915,945 hrs

  • Standards

    Telcordia (Bellcore), GB


Approximate specification product
