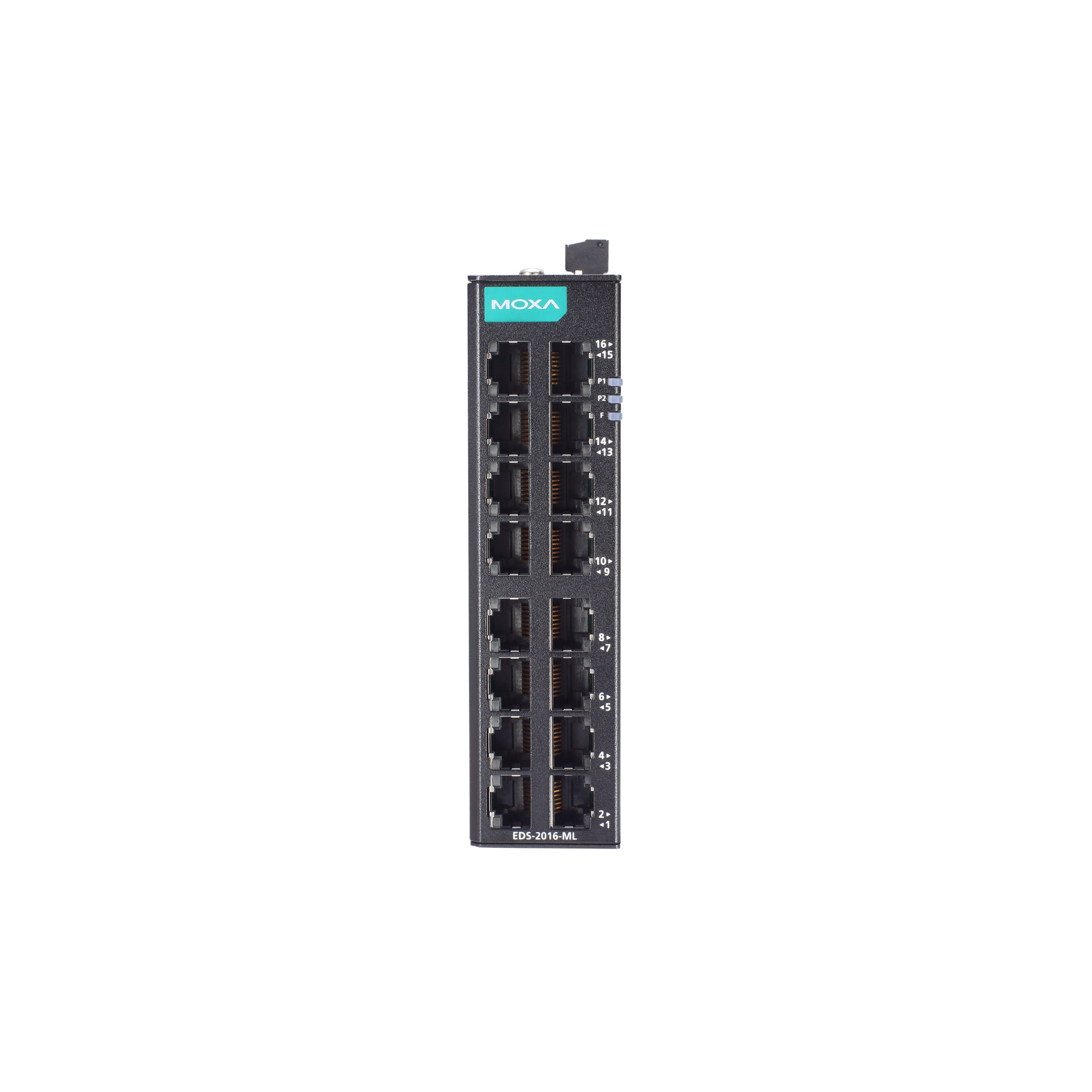

Quantity EDS-2016-ML Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • 10/100BaseT(X) Ports (RJ45 connector)

    EDS-2016-ML(-T): 16
    EDS-2016-ML-MM-SC(-T): 14
    EDS-2016-ML-MM-ST(-T): 14
    EDS-2016-ML-SS-SC(-T): 14
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 100BaseFX Ports (multi-mode SC connector)

    EDS-2016-ML-MM-SC(-T): 2

  • 100BaseFX Ports (multi-mode ST connector)

    EDS-2016-ML-MM-ST(-T): 2

  • 100BaseFX Ports (single-mode SC connector)

    EDS-2016-ML-SS-SC(-T): 2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control
    IEEE 802.1p for Class of Service

  • Optical Fiber



  • Ethernet Interface

    Quality of Service (QoS)
    Broadcast storm protection
    Port break alarm

  • Alarm Contact Channels

    Relay output with current carrying capacity of 1 A @ 24 VDC

  • MAC Table Size

    8 K

  • Packet Buffer Size

    2 Mbits

  • Processing Type

    Store and Forward

  • Connection

    1 removable 6-contact terminal block(s)

  • Input Current

    EDS-2016-ML: 0.088 A @ 24 VDC
    EDS-2016-ML-MM-SC: 0.149 A @ 24 VDC
    EDS-2016-ML-MM-ST: 0.152 A @ 24 VDC
    EDS-2016-ML-SS-SC: 0.163 A @ 24 VDC

  • Input Voltage

    12/24/48 VDC
    Redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    Non-fiber models: 36 x 135 x 95 mm (1.41 x 5.31 x 3.74 in)
    Fiber models: 58 x 135 x 95 mm (2.28 x 5.31 x 3.74 in)

  • Weight

    Non-fiber models: 486 g (1.07 lb)
    Fiber models: 648 g (1.43 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard temp. models: -10 to 60°C (14 to 140°F)
    Wide temp. models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 61010-2-201
    EN 62368-1(LVD)

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    Class I Division 2
    ATEX
    IECEx

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Vibration

    IEC 60068-2-6

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Maritime

    DNV
    LR
    ABS
    NK

  • Time

    Non-fiber models: 2,523,953 hrs
    Fiber models: 2,070,826 hrs

  • Standards

    Telcordia (Bellcore), GB


Approximate specification product
