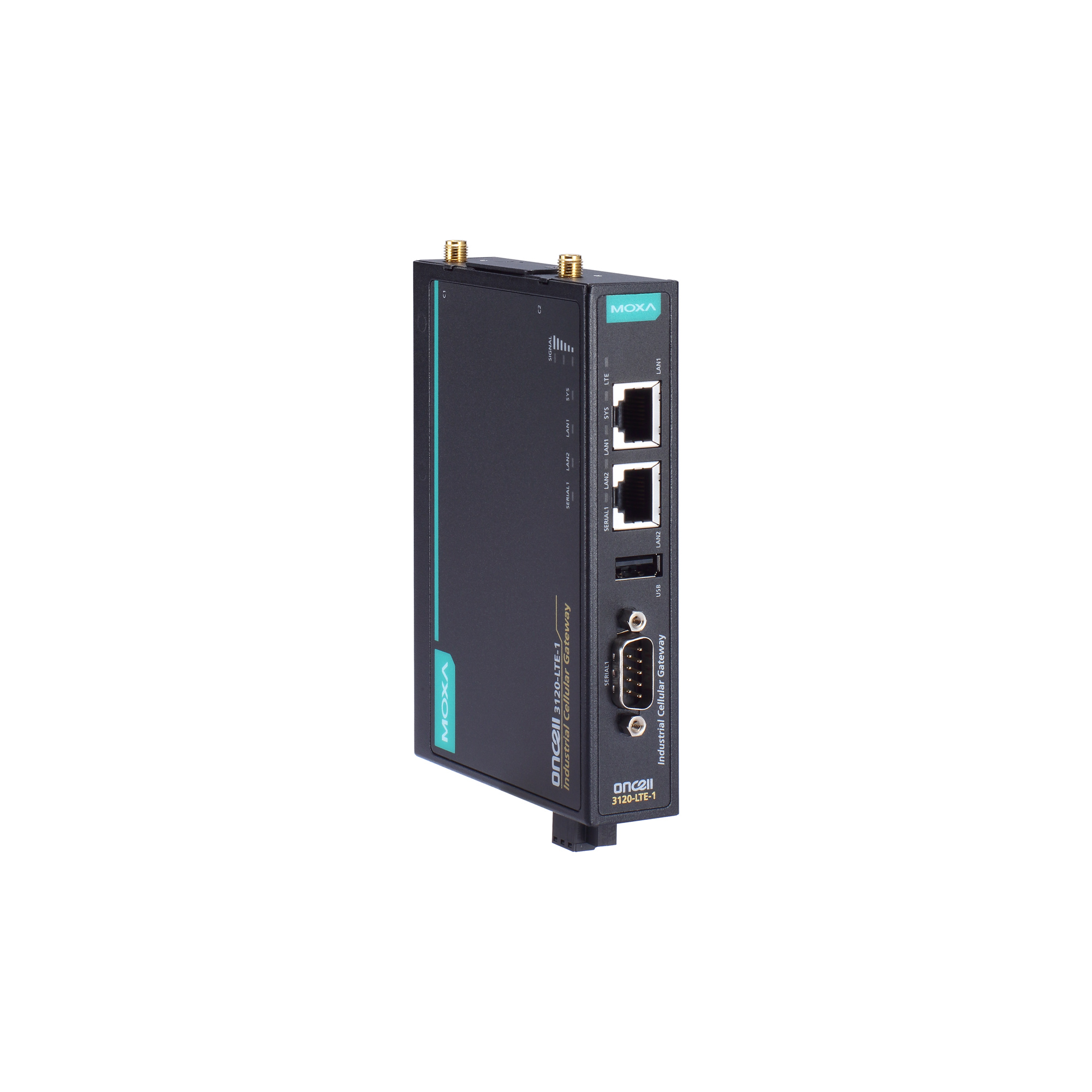

OnCell 3120-LTE-1

QR code
Quantity OnCell 3120-LTE-1 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • Cellular Standards

    LTE Cat. 1
    HSPA
    UMTS
    EDGE
    GPRS
    GSM

  • LTE Data Rate

    10 MHz bandwidth: 10.2 Mbps DL, 5.2 Mbps UL

  • HSPA Data Rates

    7.2 Mbps DL, 5.76 Mbps UL

  • Band Options (EU)

    LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) / LTE Band 28A (700 MHz)
    UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz
    GSM 900 MHz / 1800 MHz

  • Band Options (AU)

    LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 9 (1800 MHz) / LTE Band 18 (850 MHz) / LTE Band 19 (850 MHz) / LTE Band 26 (850 MHz) / LTE Band 28 (700 MHz)
    UMTS/HSPA 2100 MHz / 850 MHz / 800 MHz / 900 MHz

  • Band Options (US)

    LTE Band 2 (1900 MHz) / LTE Band 4 (1700MHz (AWS)) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)
    UMTS/HSPA 1900 MHz / 1700 MHz / 850 MHz

  • No. of SIMs

    2

  • SIM Format

    Nano SIM

  • Cellular Antenna Connectors

    2 SMA female

  • 10/100BaseT(X) Ports (RJ45 connector)

    2

  • No. of USB Ports

    1

  • USB Connector

    USB Type A

  • USB Standards

    USB 2.0

  • No. of Ports

    1

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Baudrate

    75 bps to 921.6 kbps

  • Console Port

    RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Management

    GuaranLink
    DHCP server
    DDNS
    ARP
    Telnet
    TCP/IP
    UDP
    SMTP
    Remote SMS Control
    Power Saving
    Syslog
    SNMPv1/v2c/v3
    Serial Console
    Telnet Console
    Web Console
    Wireless Search Utility

  • Firewall

    Filter: MAC, IP protocol, port-based
    Access IP list

  • Security

    HTTPS

  • Time Management

    SNTP Client

  • Authentication

    PSK/X.509/RSA

  • Encryption

    DES, 3DES, AES, MD5, SHA-1, DH2, DH5

  • Concurrent VPN Tunnels

    5

  • Features

    NAT loopback
    1-to-1
    N-to-1
    Port forwarding

  • OpenVPN

    OpenVPN (client and server), Tunnel mode (routing) and TAP mode (bridge)

  • Encryption

    Blowfish CBC, DES CBC, DES-EDE3 CBC, AES-128/192/256 CBC

  • Concurrent VPN Tunnels

    5

  • Input Current

    0.8 A (max.)

  • Input Voltage

    9 to 36 VDC

  • Power Consumption

    5 W (typ.)

  • Power Connector

    Terminal block

  • Reverse Polarity Protection

    Supported

  • Power Button

    Reset button

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    128.5 x 26 x 89.1 mm (5.06 x 1.02 x 3.51 in)

  • Weight

    550 g (1.22 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -30 to 70°C (-22 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V; 150 kHz to 80 MHz
    IEC 61000-4-8: 30 A/m

  • Freefall

    IEC 60068-2-32

  • Hazardous Locations

    ATEX
    IECEx
    Class I Division 2

  • Radio Frequency

    PTCRB
    FCC ID SLE-LE910CXNF

  • Radio

    RCM
    KC
    JATE
    NCC
    TELEC

  • Carrier Approvals

    Verizon
    AT&T

  • Cellular Standards

    EN 301511
    EN 301908-1
    EN 62311(MPE SAR)
    AS/CA S042
    EN 301489-1/-52

  • Safety

    IEC 60950-1
    IEC 62368-1
    UL 60950-1
    UL 62368-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    585,775 hrs

  • Standards

    Telcordia SR332
