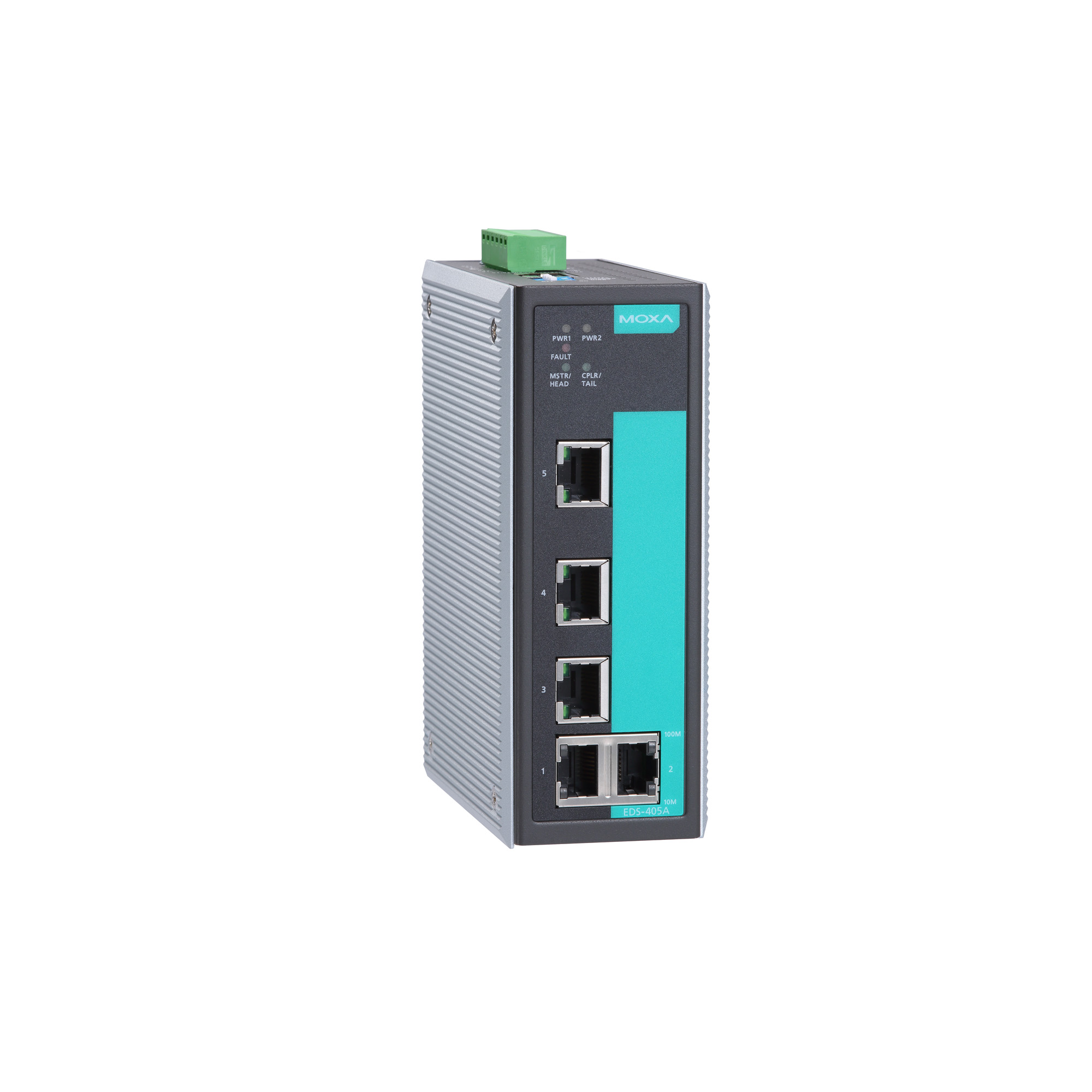

EDS-405A

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Quantity EDS-405A Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument

  • 10/100BaseT(X) Ports (RJ45 connector)

    EDS-405A, 405A-EIP/PN/PTP models: 5
    EDS-405A-MM-SC/MM-ST/SS-SC models: 3

    All models support:
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

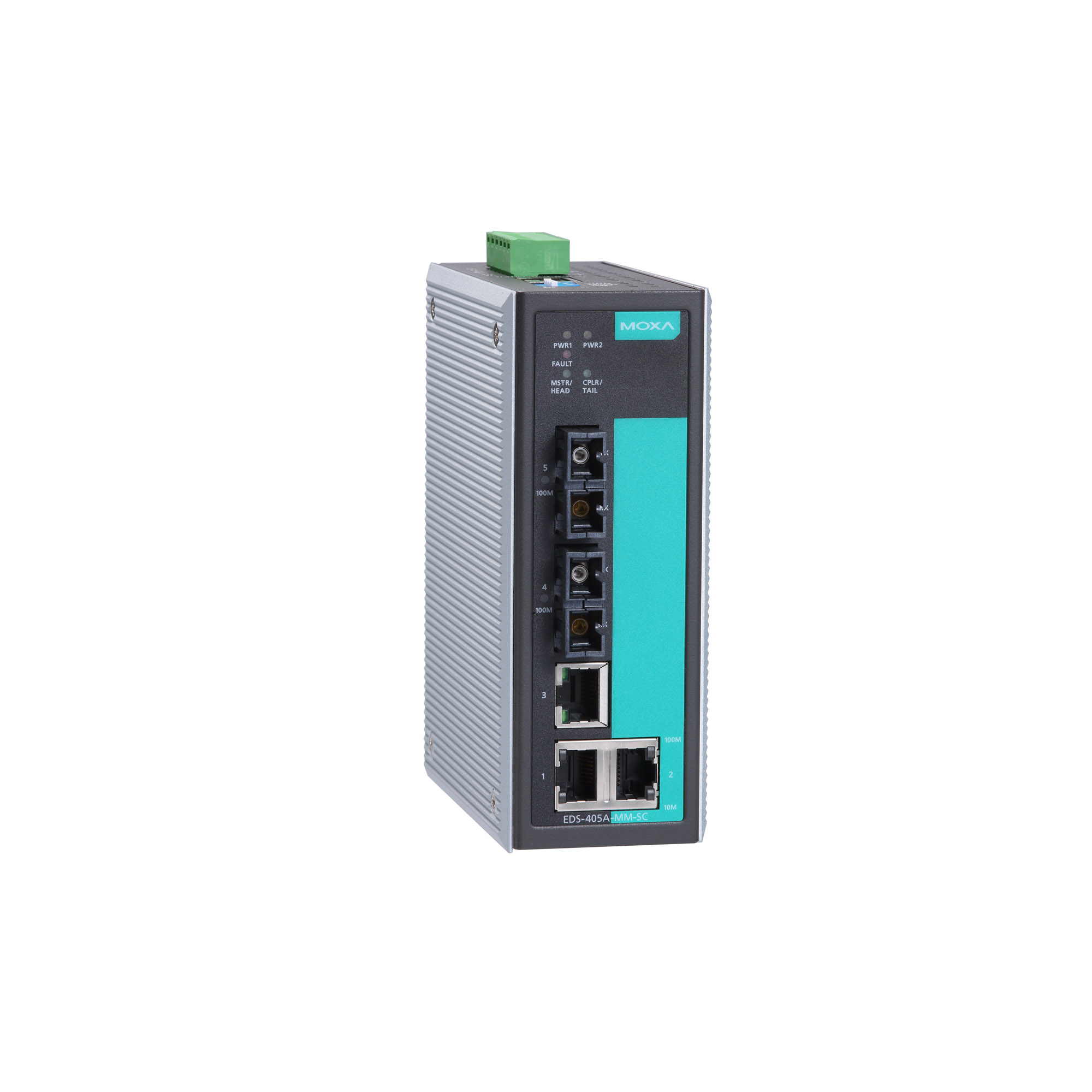

  • 100BaseFX Ports (multi-mode SC connector)

    EDS-405A-MM-SC models: 2

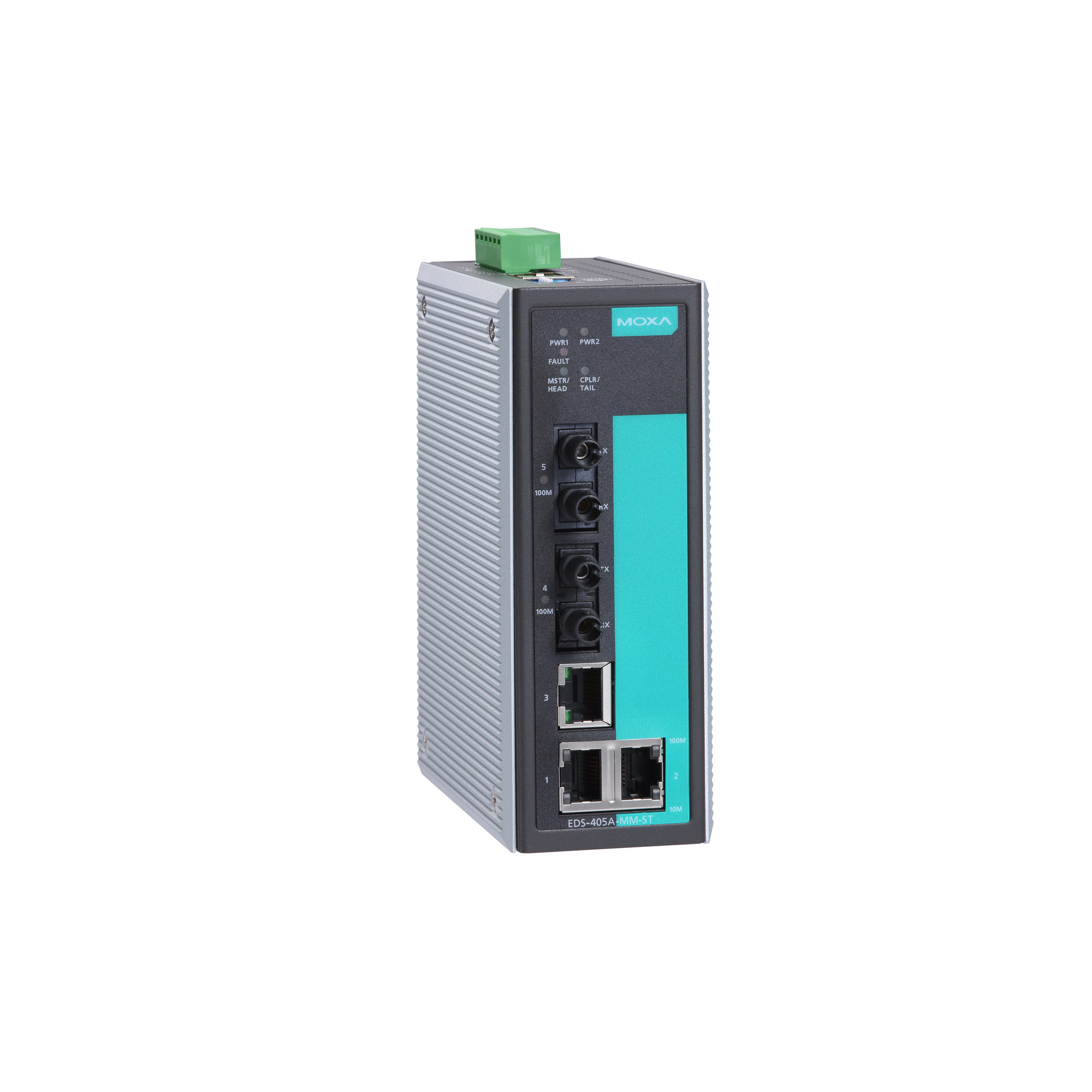

  • 100BaseFX Ports (multi-mode ST connector)

    EDS-405A-MM-ST models: 2

  • 100BaseFX Ports (single-mode SC connector)

    EDS-405A-SS-SC models: 2

  • Optical Fiber

    、


    		100BaseFX
    Multi-ModeSingle-Mode
    Fiber Cable TypeOM150/125 µmG.652
    800 MHz x km
    Typical Distance4 km5 km40 km
    WavelengthTypical (nm)13001310
    TX Range (nm)1260 to 13601280 to 1340
    RX Range (nm)1100 to 16001100 to 1600
    Optical PowerTX Range (dBm)-10 to -200 to -5
    RX Range (dBm)-3 to -32-3 to -34
    Link Budget (dB)1229
    Dispersion Penalty (dB)31
    Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
    Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).



  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1w for Rapid Spanning Tree Protocol

  • Filter

    802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

  • Industrial Protocols

    EtherNet/IP , Modbus TCP
    EDS-405A-PN models: PROFINET IO Device (Slave)

  • Management

    Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Time Management

    All models: NTP Server/Client, SNTP
    EDS-405A-PTP models: IEEE 1588v2 PTP (hardware-based)

  • IGMP Groups

    256

  • MAC Table Size

    EDS-405A, EDS-405A-EIP/MM-SC/MM-ST/PN/SS-SC models: 2 K
    EDS-405A-PTP models: 8 K

  • Max. No. of VLANs

    64

  • Packet Buffer Size

    1 Mbits

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • Console Port

    RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

  • Ethernet Interface

    Turbo Ring, Master, Coupler, Reserve

  • Alarm Contact Channels

    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Input Voltage

    12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Input Current

    EDS-405A, 405A-EIP/PN/MM-SC/MM-ST/SS-SC models:
    0.594 A @ 12 VDC
    0.286 A @ 24 VDC
    0.154 A @ 48 VDC

    EDS-405A-PTP models:
    0.23 A @ 24 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Connection

    1 removable 6-contact terminal block(s)

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

  • Weight

    EDS-405A-EIP/MM-SC/MM-ST/PN/SS-SC models: 650 g (1.44 lb)
    EDS-405A-PTP models: 820 g (1.81 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    All models: UL 508
    Non-PTP models: UL 60950-1

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    Non-PTP models:
    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8

    PTP models:
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8

  • Hazardous Locations

    Non-PTP models: ATEX, Class I Division 2

  • Maritime

    Non-PTP models: DNV

  • Traffic Control

    Non-PTP models: NEMA TS2

  • Freefall

    IEC 60068-2-31

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    EDS-405A, EDS-405A-EIP/PN models: 1,547,941 hrs
    EDS-405A-MM-SC/MM-ST/SS-SC models: 1,429,327 hrs
    EDS-405A-PTP models: 1,316,464 hrs

  • Standards

    Telcordia (Bellcore), GB
