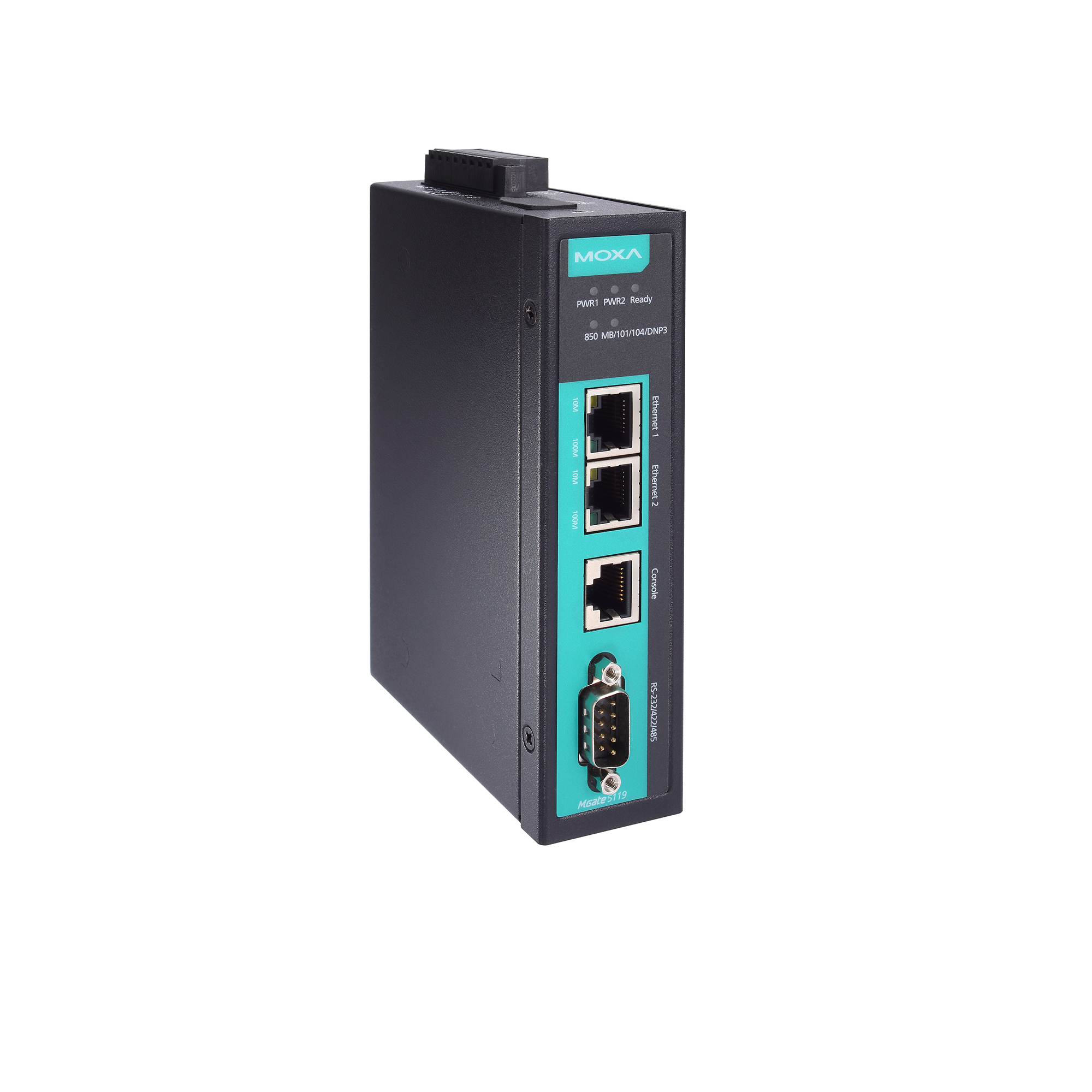

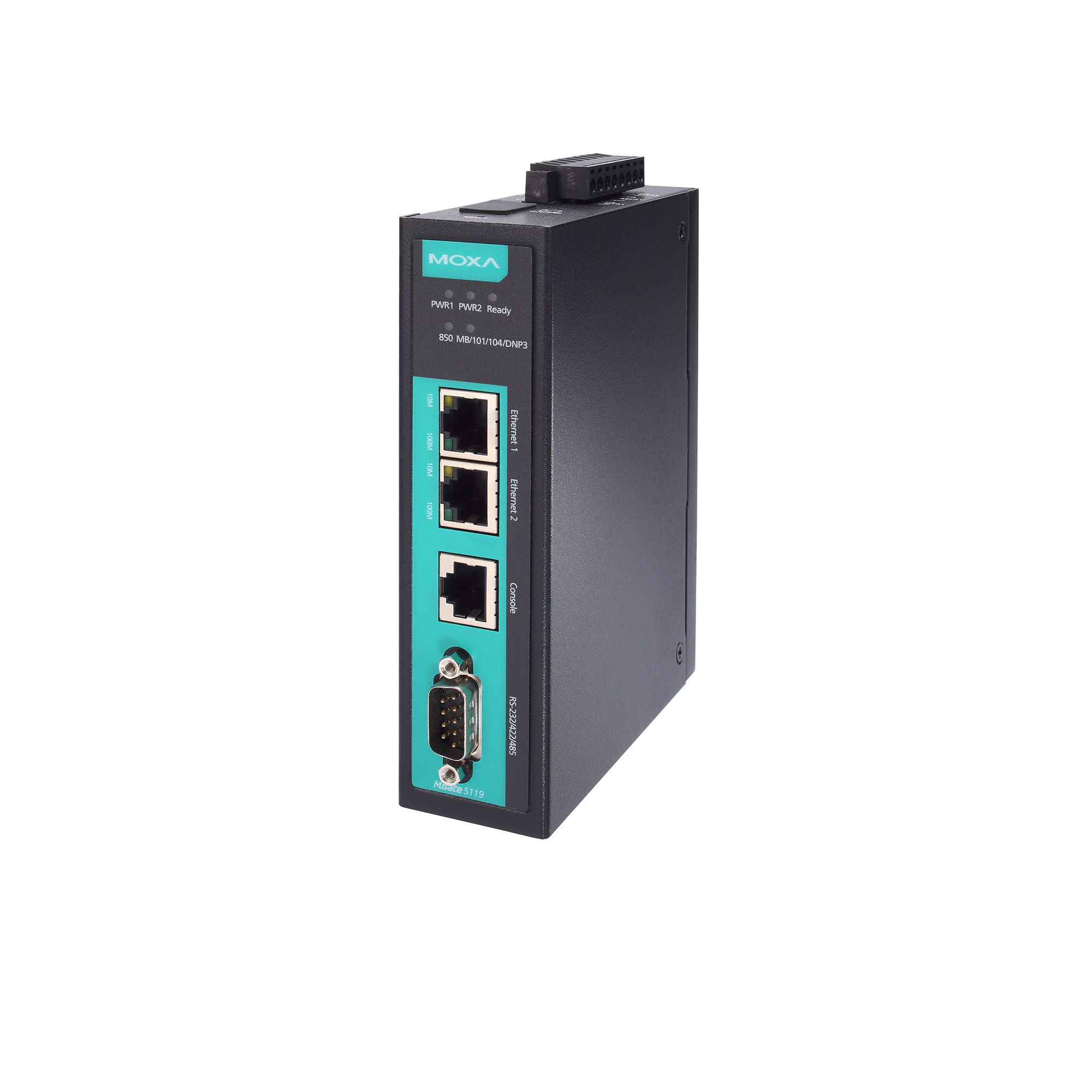

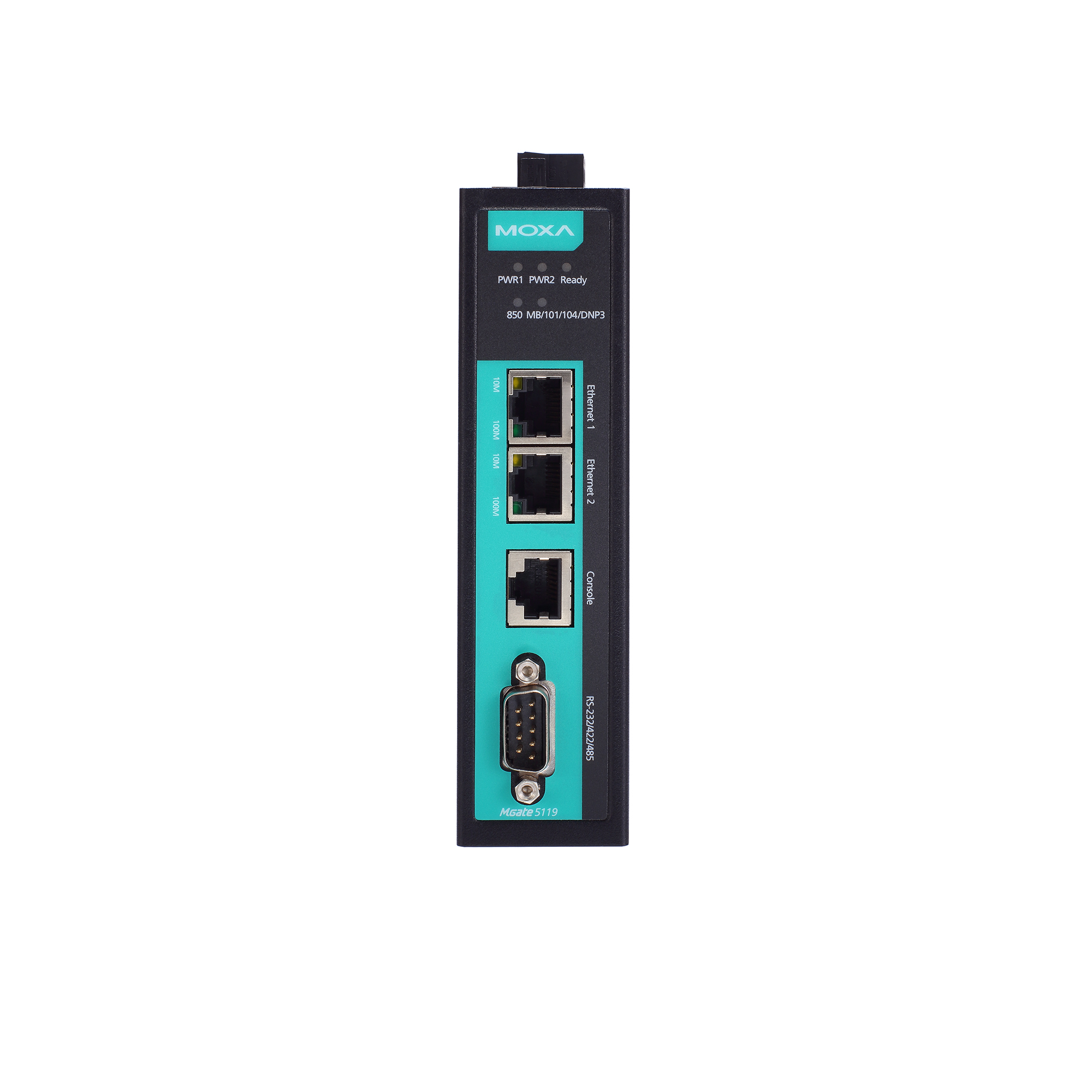

Quantity MGate 5119 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    Modbus TCP Client (Master), IEC 60870-5-104 Client, IEC 61850 MMS Server, DNP3 TCP Master

  • Configuration Options

    Web Console (HTTP/HTTPS), Device Search Utility (DSU)

  • Management

    ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • Authentication

    Local database

  • Encryption

    HTTPS, AES-128, AES-256, SHA-256

  • Security Protocols

    SNMPv3
    SNMPv2c Trap
    HTTPS (TLS 1.3)

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • No. of Ports

    1

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    Even, Mark, None, Odd, Space

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only), RTS/CTS

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    2 kV (built-in)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master, IEC 60870-5-101 Master (Balanced/Unbalanced), DNP3 Serial Master

  • Mode

    Master

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    128

  • Mode

    Client (Master)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Server Connections

    32

  • Max. No. of Commands

    128

  • Mode

    Client

  • Objects Supported

    Single point
    Double point
    Step position
    Bit string of 32 bit
    Measured value (normalized)
    Measured value (scaled)
    Measured value (floating)
    Integrated totals

  • Max. No. of Server Connections

    32

  • Max. No. of Information Objects

    1200 points

  • Mode

    Master (Balanced/Unbalanced)

  • Objects Supported

    Single point
    Double point
    Step position
    Bit string of 32 bit
    Measured value (normalized)
    Measured value (scaled)
    Measured value (floating)
    Integrated totals

  • Max. No. of Slave Connections

    1 (Balanced), 31 (Unbalanced)

  • Max. No. of Information Objects

    1200 points

  • Mode

    Master

  • Objects Supported

    Binary inputs
    Analog inputs
    Counters
    Frozen counters
    Binary outputs
    Analog outputs

  • Max. No. of Outstation Connections

    16

  • Max. No. of Objects

    1200 points

  • Mode

    Master

  • Objects Supported

    Binary inputs
    Analog inputs
    Counters
    Frozen counters
    Binary outputs
    Analog outputs

  • Max. No. of Outstation Connections

    16

  • Max. No. of Objects

    1200 points

  • Mode

    MMS Server

  • Max. No. of Client Connections

    16

  • Max. No. of Datasets

    99

  • Max. No. of Reports

    99

  • Max. No. of Data Objects

    1200 points

  • No. of Data Points Supported

    1,200 points

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    455 mA @ 12 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    36 x 120 x 150 mm (1.42 x 4.72 x 5.91 in)

  • Weight

    517 g (1.14 lb)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 60950-1, IEC 60950-1, IEC 62368-1, UL 60950-1, EN 62368-1, UL 62368-1

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V/m
    IEC 61000-4-8 PFMF: 100 A/m

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27
    IEC 61850-3 Edition 2.0

  • Power Substation

    IEEE 1613, IEC 61850-3

  • Vibration

    IEC 60068-2-6, IEC 60068-2-64, IEC 61850-3 Edition 2.0

  • Time

    1,180,203 hrs

  • Standards

    Telcordia SR332
