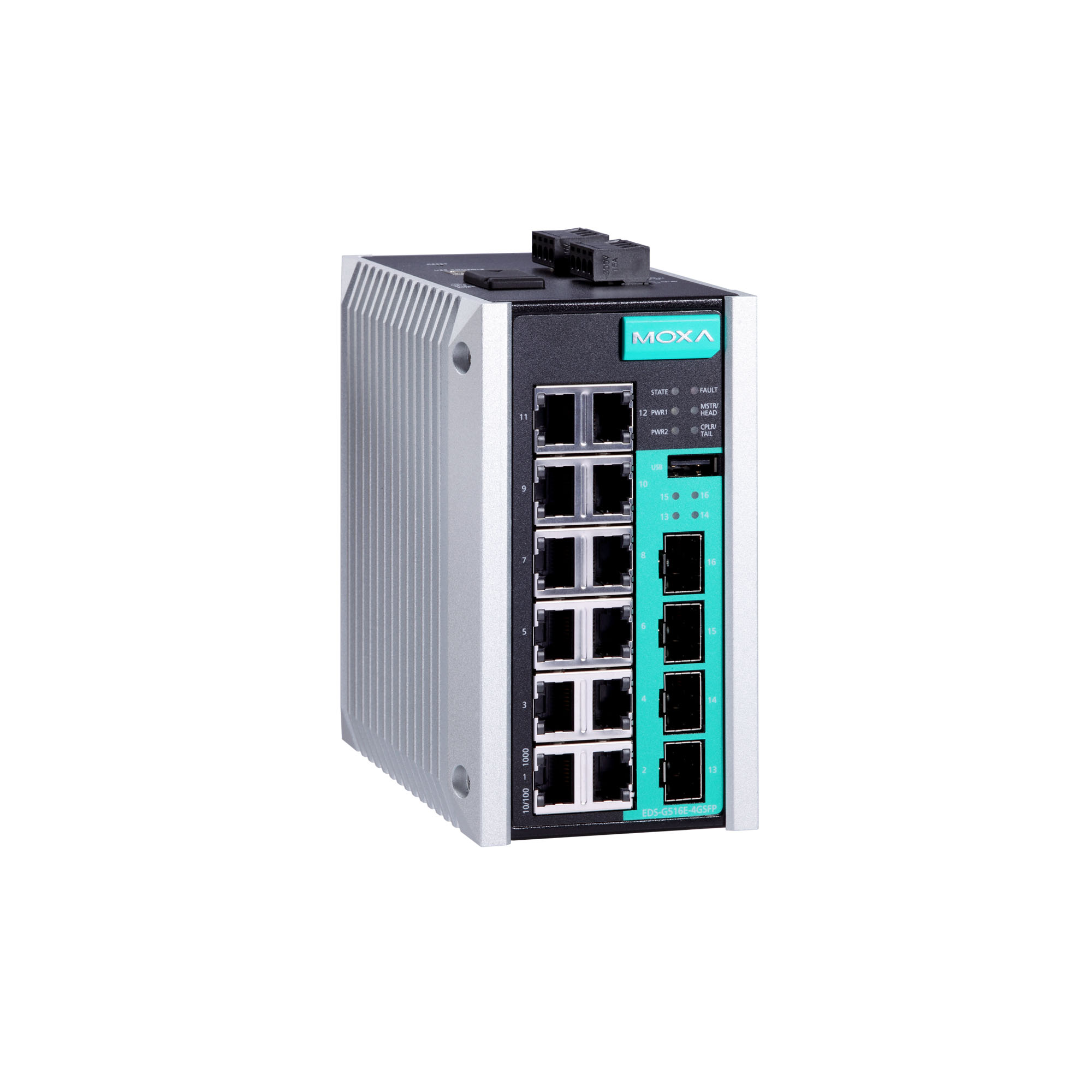

EDS-G516E

1
Relay output with current carrying capacity of 1 A @ 24 VDC

Reset button

1

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

12
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

4

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1p for Class of Service
IEEE 802.1Q for VLAN Tagging
IEEE 802.1X for authentication
IEEE 802.3ad for Port Trunk with LACP

802.1Q VLAN
BPDU Filter
BPDU Guard
GMRP
GVRP
IGMP v1/v2/v3
Port-based VLAN

EtherNet/IP
Modbus TCP
PROFINET IO Device

LLDP
Back Pressure Flow Control
BOOTP
Port Mirror
DHCP Option 66/67/82
DHCP Server/Client
Fiber check
Flow control
IPv4/IPv6
RARP
RMON
SCP
SMTP
SNMP Inform
SNMPv1/v2c/v3
Syslog
Telnet
TFTP

Ethernet-like MIB
MIB-II
Bridge MIB
P-BRIDGE MIB
Q-BRIDGE MIB
RMON MIB Groups 1, 2, 3, 9
RSTP MIB

Link Aggregation
MRP
MSTP
RSTP
STP
Turbo Chain
Turbo Ring v1/v2

Broadcast storm protection
HTTPS/SSL
TACACS+
SNMPv3
MAB authentication
Sticky MAC
NTP authentication
MAC ACL
Port Lock
RADIUS
SSH
SMTP with TLS

NTP Server/Client
SNTP

2048

9.6 KB

8 K

256

4 Mbits

4

VID 1 to 4094

USB Type A

PWR1, PWR2, STATE, FAULT, 10/100M (TP port), 1000M (TP port), 100/1000M (SFP port), MSTR/HEAD, CPLR/TAIL

USB-serial console (Type B connector)

Turbo Ring, Master, Coupler, Reserve

2 removable 4-contact terminal block(s)

0.39 A @ 24 VDC

12/24/48/-48 VDC
Redundant dual inputs

9.6 to 60 VDC

Supported

Supported

Metal

IP30

79.2 x 135 x 137 mm (3.1 x 5.3 x 5.4 in)

1440 g (3.18 lb)

DIN-rail mounting
Wall mounting (with optional kit)

EDS-G516E-4GSFP: -10 to 60°C (14 to 140°F)
EDS-G516E-4GSFP-T: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

UL 508

EN 61000-6-2/-6-4

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

ATEX
Class I Division 2

DNV-GL
LR
ABS
NK

IEC 61850-3
IEEE 1613

EN 50121-4

NEMA TS2

IEC 60068-2-27

IEC 60068-2-32

IEC 60068-2-6

805,491 hrs

Telcordia (Bellcore), GB
