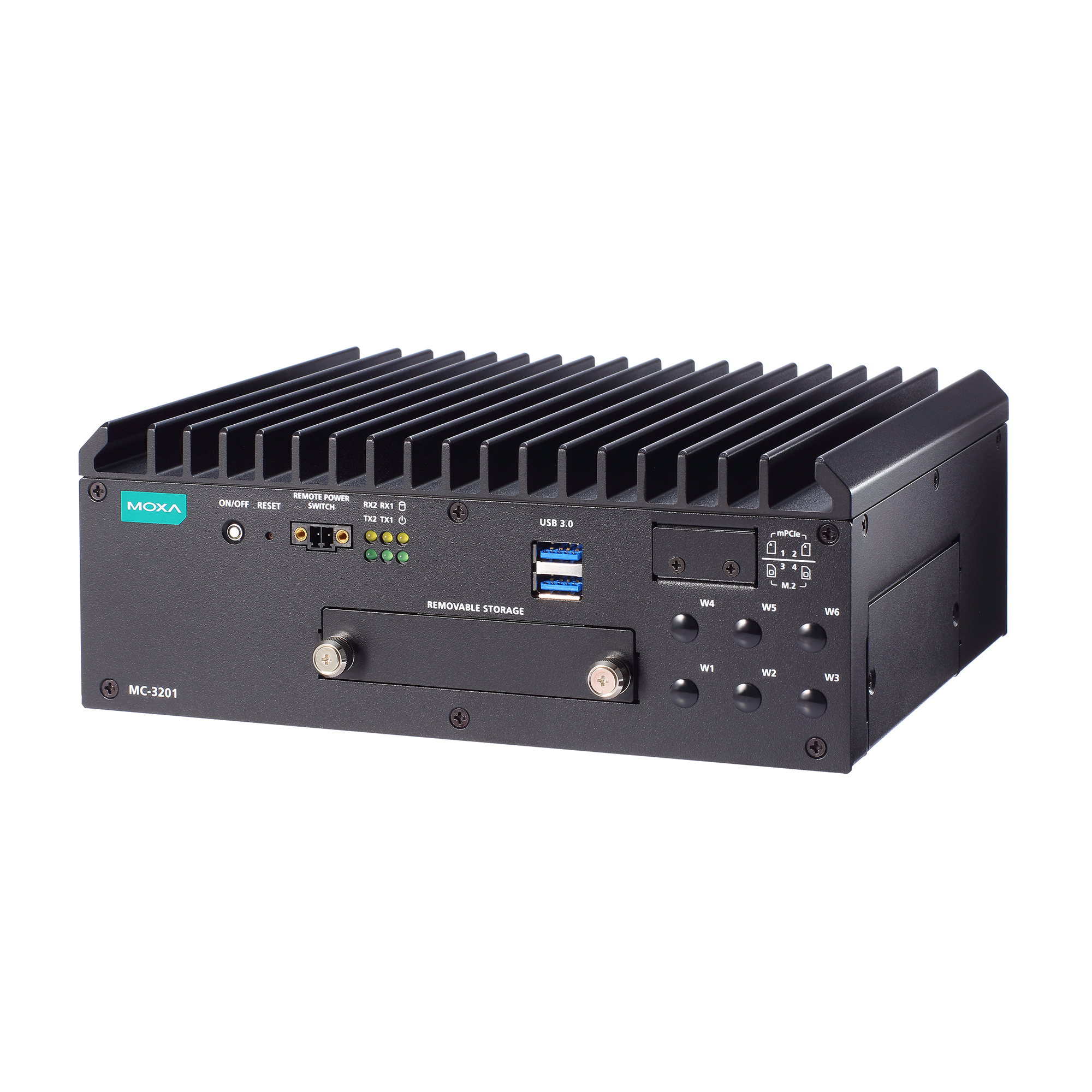

MC-3201

MC-3201-TGL7-M-S/S-S Models: Intel® Core™ i7-1185G7E processor (12M Cache, up to 1.8 GHz)
MC-3201-TGL5-M-S/S-S Models: Intel® Core™ i5-1145G7E processor (8M Cache, up to 1.5 GHz)
MC-3201-TGL3-M-S/S-S Models: Intel® Core™ i3-1115G4E processor (6M Cache, up to 2.2 GHz)
MC-3201-TGL1-M-S/S-S Models: Intel® Celeron® 6305E processor (4M Cache, up to 1.8 GHz)

Intel® Iris® Xe Graphics

8 GB DDR4

SODIMM DDR4 2133 slot x 2, up to 32 GB max.

Linux Debian 11, 64-bit, kernel 5.10
Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
(Both optional, available via CTOS)

External:
2.5-inch HDD/SSD slots x 1
Internal:
M.2 B key socket x 1
mPCIe socket x 1

Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

RS-232/422/485 ports x 2, software selectable (DB9 male)

M-S Models: DIs x 4

M-S Models: DOs x 4

USB 3.0 hosts x 2, type-A connectors

USB 2.0 hosts x 4, type-A connectors

DisplayPort x 2
up to 3840 x 2160 resolution at 60 Hz

Line in x 1, Line out x 1, 3.5 mm phone jack

Reset button
Power button

TPM v2.0

1.5 kV (built-in)

4

50 bps to 115.2 kbps

DB9 male

5, 6, 7, 8

RTS/CTS, XON/XOFF

None, Even, Odd, Space, Mark

1, 1.5, 2

4 kV contact, 8 kV air

Tx+, Tx-, Rx+, Rx-, GND

Tx+, Tx-, Rx+, Rx-, GND

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Data+, Data-, GND

Power x 1
Storage x 1

2 per port (Tx, Rx)

2 per port (10/100/1000 Mbps)

220 x 80 x 170 mm (8.66 x 3.15 x 6.69 in)

3,000 g (6.61 lb)

Metal

Wall mounting

M-S Models: 24 VDC
S-S Models: 9 to 36 VDC

-20 to 55°C (-4 to 131°F)

-30 to 60°C (-22 to 140°F)

5 to 95% (non-condensing)

EN 55032/35

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

UL 62368-1
EN 62368-1
IEC 62368-1
IEC 60950-1

IEC 60068-2-27

IEC 60068-2-64

M-S Models: IEC 60945, IACS E10

RoHS, CRoHS, WEEE

323,270 hrs

Telcordia (Bellcore) Standard TR/SR
