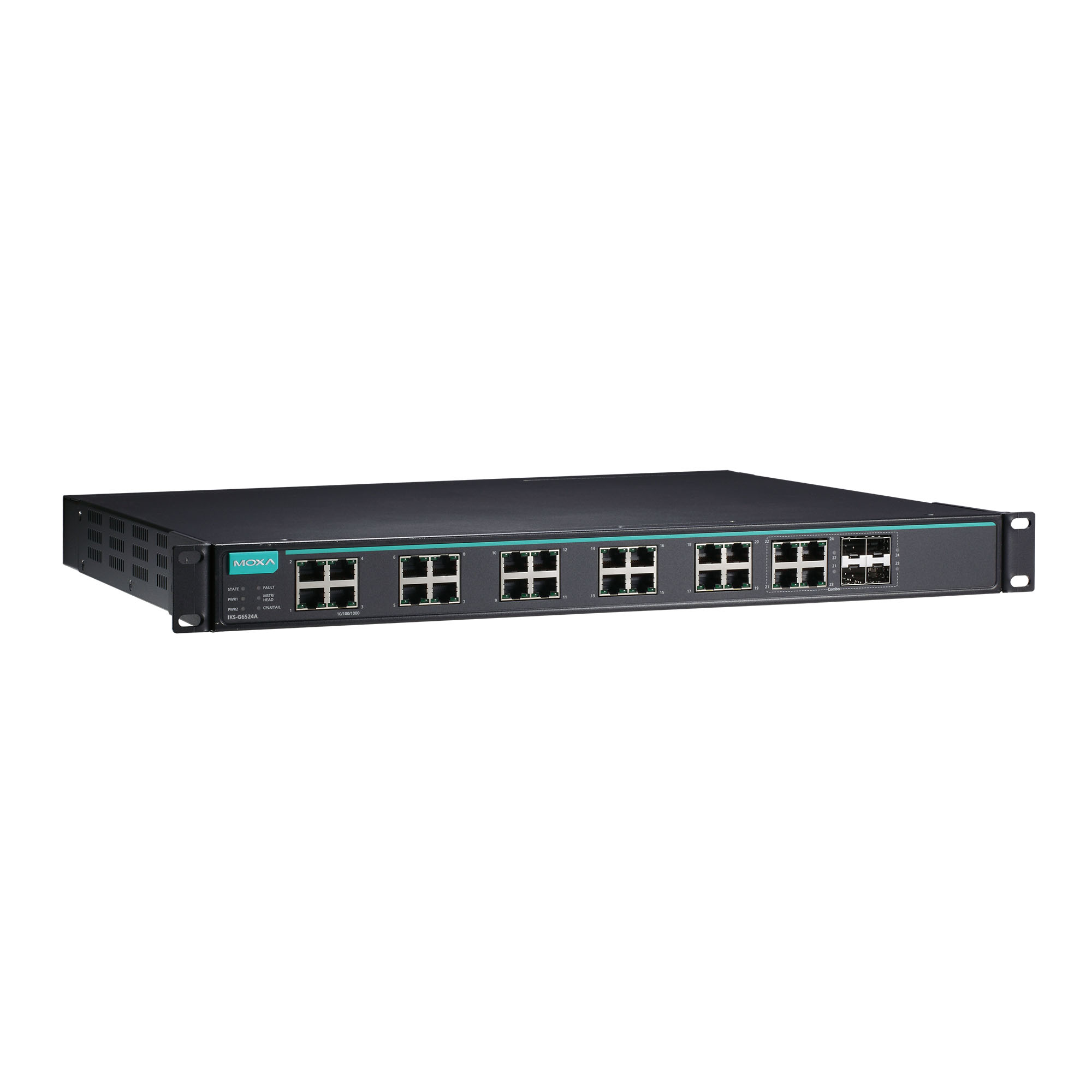

IKS-G6524A

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Quantity IKS-G6524A Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument

  • Alarm Contact Channels

    Relay output with current carrying capacity of 2 A @ 30 VDC

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    IKS-G6524A-4GTXSFP-HV-HV Series: 20
    IKS-G6524A-8GSFP-4GTXSFP-HV-HV Series: 12

  • 100/1000BaseSFP Ports

    IKS-G6524A-8GSFP-4GTXSFP-HV-HV Series: 8
    IKS-G6524A-20GSFP-4GTXSFP-HV-HV Series: 20

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)

    4

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

  • Management

    ARP
    Back Pressure Flow Control
    BOOTP
    DDM
    DHCP Option 66/67/82
    DHCP Server/Client
    IPv4/IPv6
    LLDP
    Port Mirror
    RMON
    SCP
    SNMP Inform
    SNMPv1/v2c/v3
    Syslog
    Telnet
    TFTP
    SMTP
    RARP
    Flow control

  • Filter

    802.1Q
    BPDU Filter
    BPDU Guard
    GMRP
    GVRP
    IGMP v1/v2/v3

  • Redundancy Protocols

    Link Aggregation
    MRP
    MSTP
    RSTP
    Turbo Chain
    Turbo Ring v1/v2
    V-ON

  • Security

    Access control list
    Broadcast storm protection
    HTTPS/SSL
    MAB authentication
    Sticky MAC
    NTP authentication
    Port Lock
    RADIUS
    SSH
    TACACS+

  • Time Management

    NTP Server/Client
    SNTP

  • Industrial Protocols

    EtherNet/IP
    Modbus TCP
    PROFINET

  • MIB

    Bridge MIB
    Ethernet-like MIB
    MIB-II
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • DRAM

    128 MB

  • Flash

    16 MB

  • IGMP Groups

    4096

  • Jumbo Frame Size

    9.6 KB

  • MAC Table Size

    16 K

  • Max. No. of VLANs

    256

  • Packet Buffer Size

    12 Mbits

  • VLAN ID Range

    VID 1 to 4094

  • Priority Queues

    8

  • Storage Port

    USB Type A

  • Console Port

    USB-serial console (Type B connector)

  • Input Voltage

    110 to 240 VAC
    Redundant dual inputs

  • Operating Voltage

    85 to 264 VAC

  • Input Current

    Max. 0.66 A @ 110 VAC
    Max. 0.39 A @ 220 VAC

  • Power Consumption

    Max. 37.83 W @ 110 VAC
    Max. 40.15 W @ 220 VAC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • IP Rating

    IP30

  • Dimensions

    440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)

  • Weight

    5100 g (11.25 lb)

  • Installation

    Rack mounting

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 62368-1
    IEC 62368-1
    UL 61010-2-201
    EN 61010-2-201

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    IKS-G6524A-4GTXSFP-HV-HV Series: 697,302 hrs
    IKS-G6524A-8GSFP-4GTXSFP-HV-HV Series: 648,494 hrs
    IKS-G6524A-20GSFP-4GTXSFP-HV-HV Series: 670,194 hrs

  • Standards

    Telcordia (Bellcore), GB
