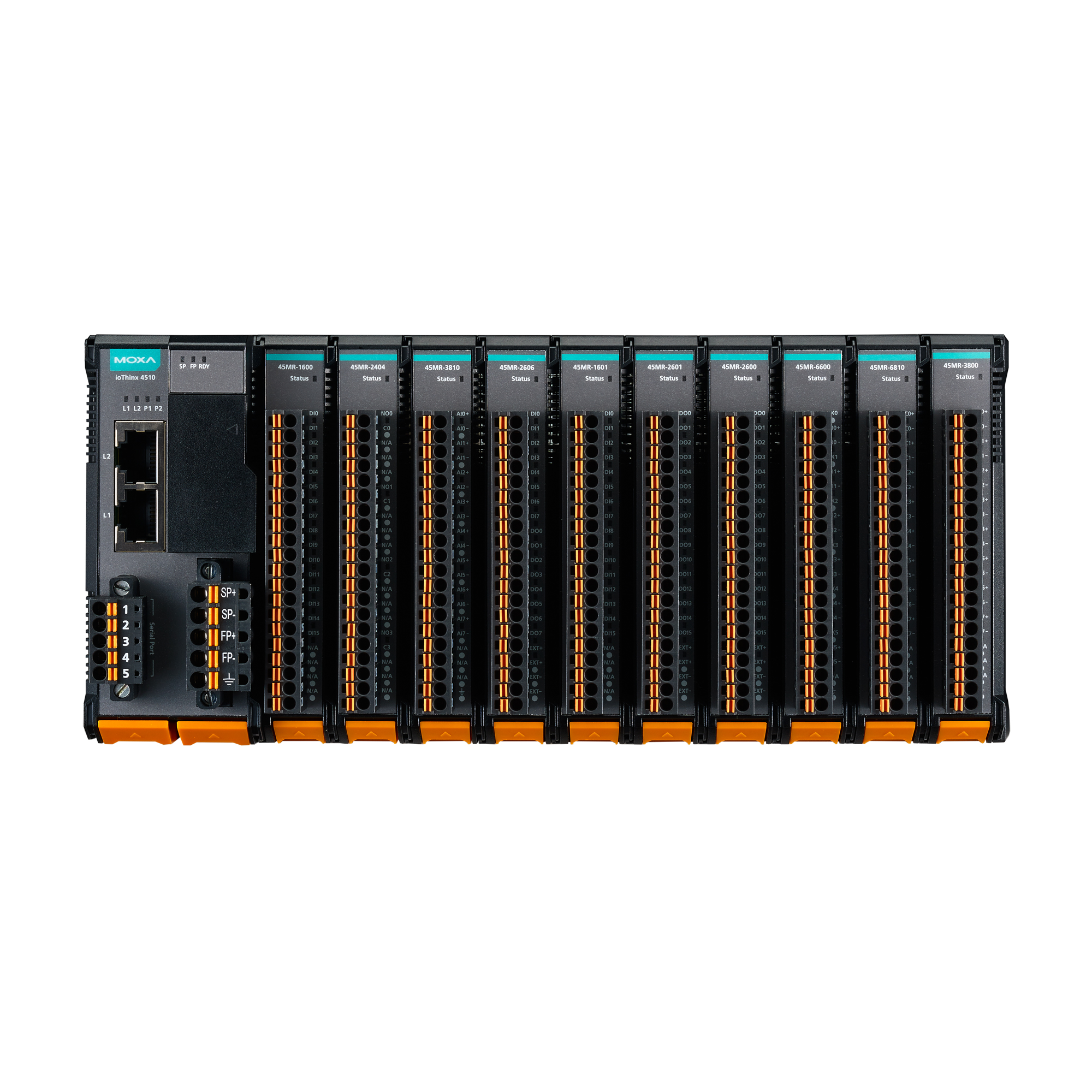

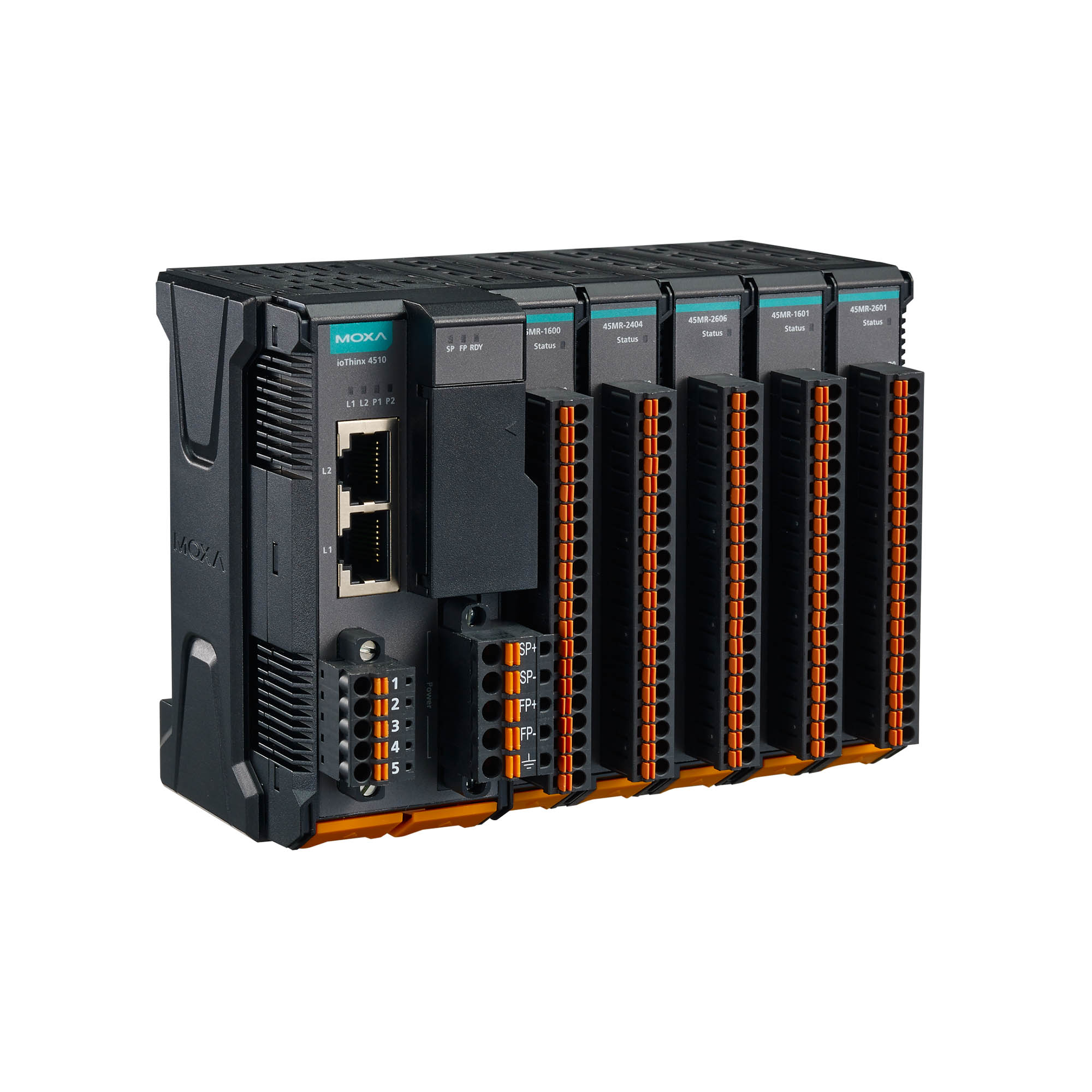

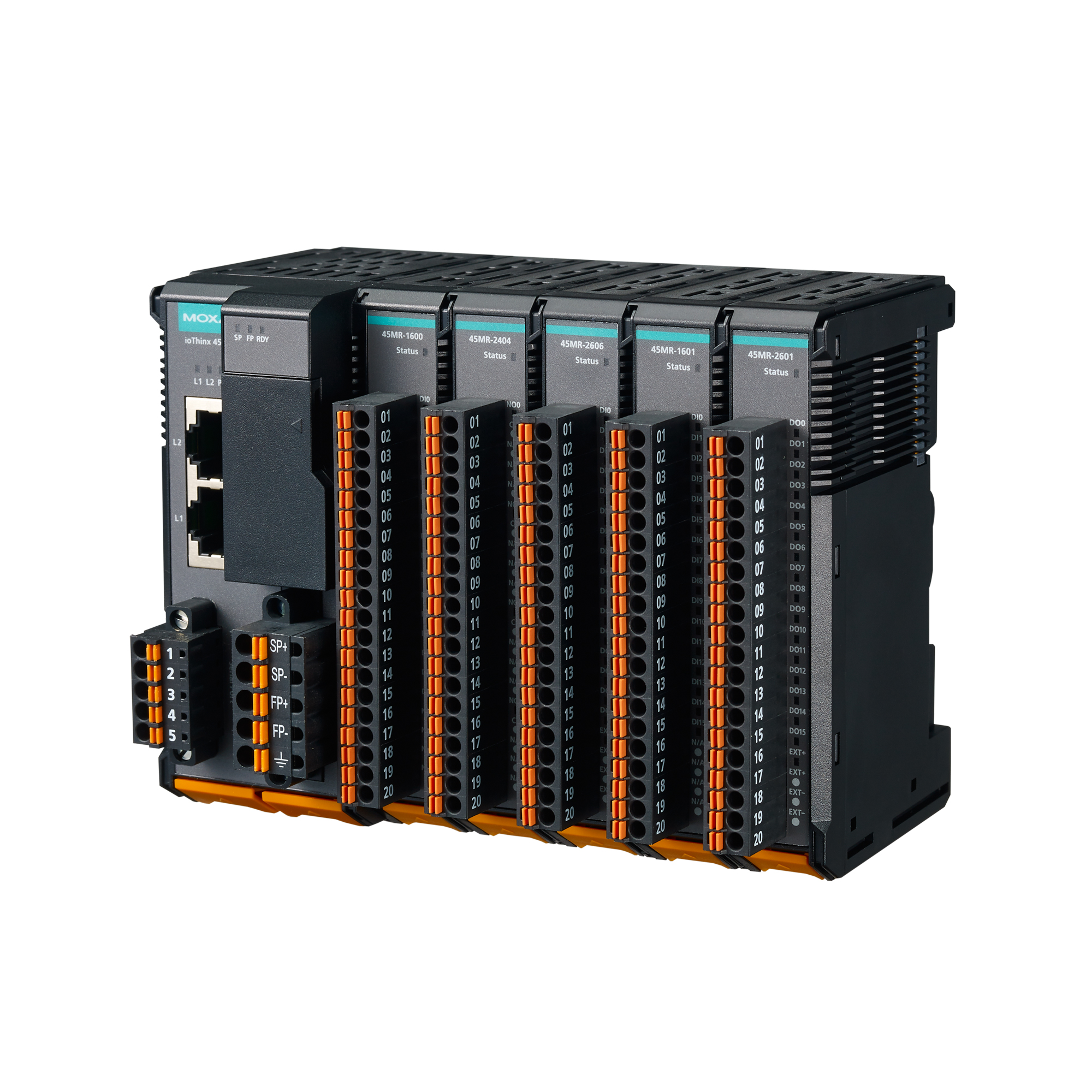

Quantity ioThinx 4510 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • Buttons

    Reset button

  • Expansion Slots

    Up to 32

  • Isolation

    3k VDC or 2k Vrms

  • 10/100BaseT(X) Ports (RJ45 connector)

    2, 1 MAC address (Ethernet bypass)

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP/HTTPS), Windows Utility (IOxpress), MCC Tool

  • Industrial Protocols

    Modbus TCP Server (Slave), RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, MQTT

  • Management

    SNMPv1/v2c/v3, SNMPv1/v2c/v3 Trap, SNMPv2c/v3 Inform, DHCP Client, IPv4, HTTP, UDP, TCP/IP

  • Authentication

    Local database

  • Encryption

    HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, ECC-256

  • Security Protocols

    SNMPv3
    HTTPS (TLS 1.2)
    SNMPv3 Trap

  • Connector

    Spring-type Euroblock terminal

  • Serial Standards

    RS-232/422/485

  • No. of Ports

    1 x RS-232/422 or 2 x RS-485 (2 wire)

  • Baudrate

    1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps

  • Flow Control

    RTS/CTS

  • Parity

    None, Even, Odd

  • Stop Bits

    1, 2

  • Data Bits

    8

  • RS-232

    TxD, RxD, RTS, CTS, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Industrial Protocols

    Modbus RTU Master

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 48 VDC

  • Power Consumption

    800 mA @ 12 VDC

  • Over-Current Protection

    1 A @ 25°C

  • Over-Voltage Protection

    55 VDC

  • Output Current

    1 A (max.)

  • Power Connector

    Spring-type Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12/24 VDC

  • Over-Current Protection

    2.5 A @ 25°C

  • Over-Voltage Protection

    33 VDC

  • Output Current

    2 A (max.)

  • Wiring

    Serial cable, 16 to 28 AWG
    Power cable, 12 to 18 AWG

  • Strip Length

    Serial cable, 9 mm
    Power cable, 12 to 13 mm

  • Housing

    Plastic

  • Dimensions

    42.3 x 99 x 75 mm (1.67 x 3.9 x 2.95 in)

  • Weight

    173.5 g (0.382 lb)

  • Installation

    DIN-rail mounting

  • Operating Temperature

    ioThinx 4510: -20 to 60°C (-4 to 140°F)
    ioThinx 4510-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    Up to 4000 m

  • Safety

    UL 61010-2-201

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Hazardous Locations

    Class I Division 2, ATEX

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    1,451,040 hrs

  • Standards

    Telcordia SR332
