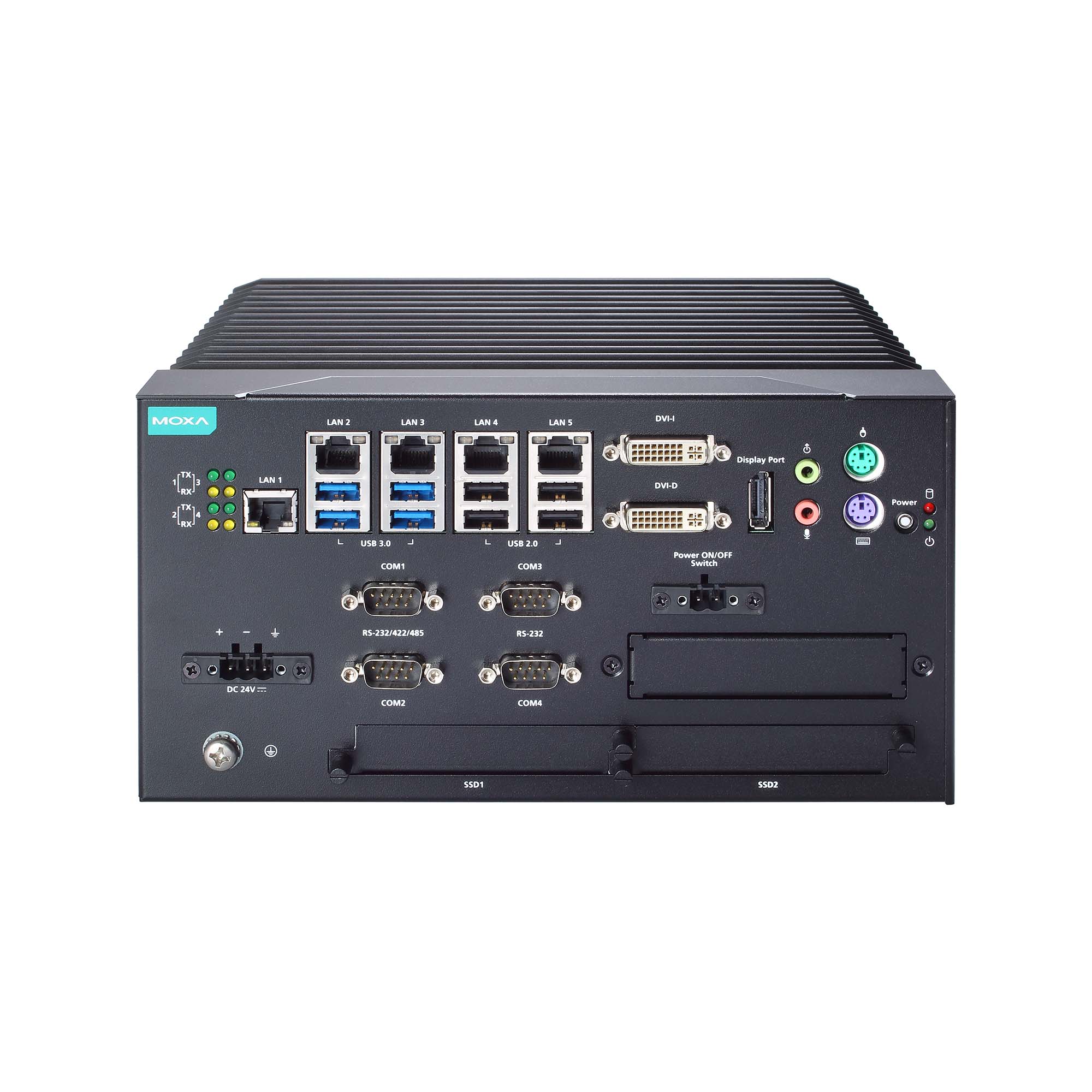

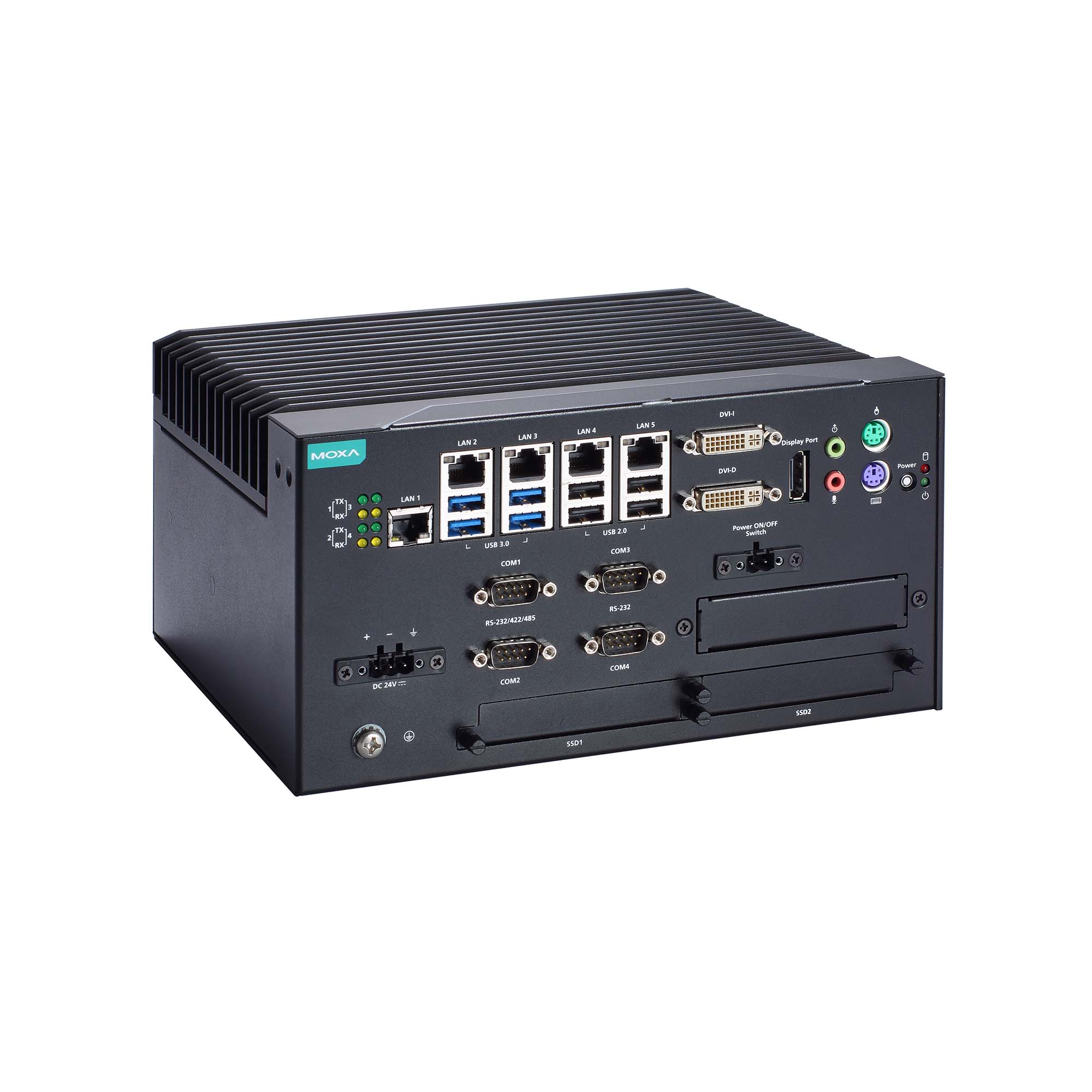

Quantity MC-7400 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • CPU

    Intel® Celeron® Processor G3902E (2M Cache, 1.60 GHz)
    Intel® Core™ i5-6442EQ Processor (6M Cache, up to 2.70 GHz)
    Intel® Core™ i7-6822EQ Processor (6M Cache, up to 2.80 GHz)

  • System Chipset

    Mobile Intel® QM170 Chipset

  • Graphics Controller

    Celeron: Intel® HD Graphics 510
    Core i5: Intel® HD Graphics 530
    Core i7: Intel® HD Graphics 530

  • System Memory Slot

    SODIMM DDR4 slot x 2

  • Supported OS

    Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA
    Linux Debian 9
    Note: OS available by CTOS

  • Storage Slot

    2.5" HDD/SSD slots x 2

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 5

  • Serial Ports

    RS-232 ports x 2 (DB9 male)
    RS-232/422/485 ports x 2, software selectable (DB9 male)

  • USB 2.0

    USB 2.0 hosts x 5, type-A connectors

  • USB 3.0

    USB 3.0 hosts x 4, type-A connectors

  • Audio Input/Output

    Line in x 1, Line out x 1, 3.5 mm phone jack

  • Digital Input

    DIs x 4
    Only for MC-7420 series

  • Digital Output

    DOs x 4
    Only for MC-7420 series

  • NMEA Port

    NMEA 0183 ports x 4 (terminal block)
    Only for MC-7420 series

  • Video Input

    DVI-D x 1, 29-pin DVI-D connector (female)
    DVI-I x 1, 29-pin DVI-I connector (male)

  • Video Output

    DisplayPort x 1

  • PS/2

    Keyboard PS/2 x 1 + Mouse PS/2 x 1

  • Connector

    Screw-fastened Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Contact Resistance

    50 milli-ohms (max.)

  • Initial Insulation Resistance

    1000 mega-ohms (min.) @ 500 VDC

  • Mechanical Endurance

    100,000,000 operations

  • Minimum Permitted Load

    20 A @ 30 VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Serial

    2 per port (Tx, Rx)

  • Baudrate

    50 bps to 115.2 kbps

  • Connector

    DB9 male

  • Data Bits

    5, 6, 7, 8

  • Flow Control

    ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF

  • Isolation

    None

  • Parity

    None, Even, Odd, Space, Mark

  • NMEA Interface

    NMEA 0183: RS-422
    Baudrate: 4800 bps
    Data Bits: 8
    Handshake: None
    Optical Isolation Protection: 3 kV
    Parity: None
    Stop Bits: 1, 1.5, 2

  • Power Consumption

    100 W

  • Input Voltage

    100 to 240 VAC, 24 VDC

  • Power Connector

    Terminal block (for DC models)

  • Automatic Reboot Trigger

    Built-in WDT

  • Weight

    MC-7410 Series: 5500 g (12.12 lb)
    MC-7420 Series: 6000 g (13.23 lb)

  • Dimensions (with ears)

    MC-7410 Series: 240 x 209 x 125 mm (9.45 x 8.23 x 4.92 in)
    MC-7420 Series: 240 x 209 x 160 mm (9.45 x 8.23 x 6.3 in)

  • Housing

    Metal

  • Operating Temperature

    -25 to 55°C (-13 to 131°F)

  • Storage Temperature (package included)

    -30 to 60°C (-22 to 140°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Maritime

    IEC 60945

  • Safety

    CE, IEC 62368-1, UL 60950-1

  • Radio Frequency

    FCC

  • EMC

    EN 55032/24

  • EMI

    CISPR 22, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE
