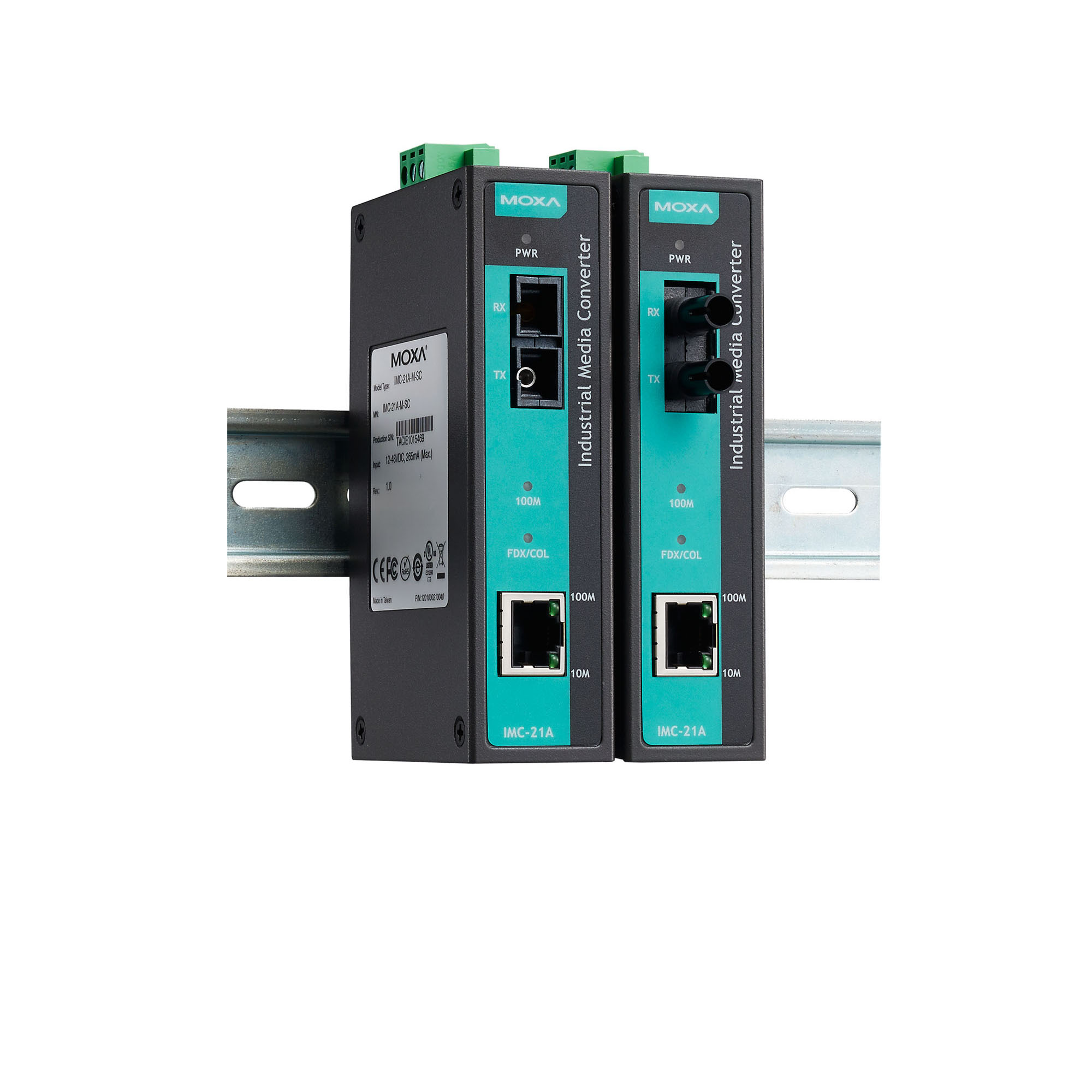

IMC-21A

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Quantity IMC-21A Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • 100BaseFX Ports (multi-mode SC connector)

    IMC-21A-M-SC Series: 1

  • 100BaseFX Ports (multi-mode ST connector)

    IMC-21A-M-ST Series: 1

  • 100BaseFX Ports (single-mode SC connector)

    IMC-21A-S-SC Series: 1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Optical Fiber



  • Input Current

    12 to 48 VDC, 265mA (Max.)

  • Input Voltage

    12 to 48 VDC

  • Overload Current Protection

    Supported

  • Power Connector

    Terminal block

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in)

  • Weight

    170 g (0.37 lb)

  • Installation

    DIN-rail mounting

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-2
    IEC 60068-2-3

  • Safety

    EN 60950-1, UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Time

    353,000 hrs

  • Standards

    MIL-HDBK-217F


Approximate specification product
