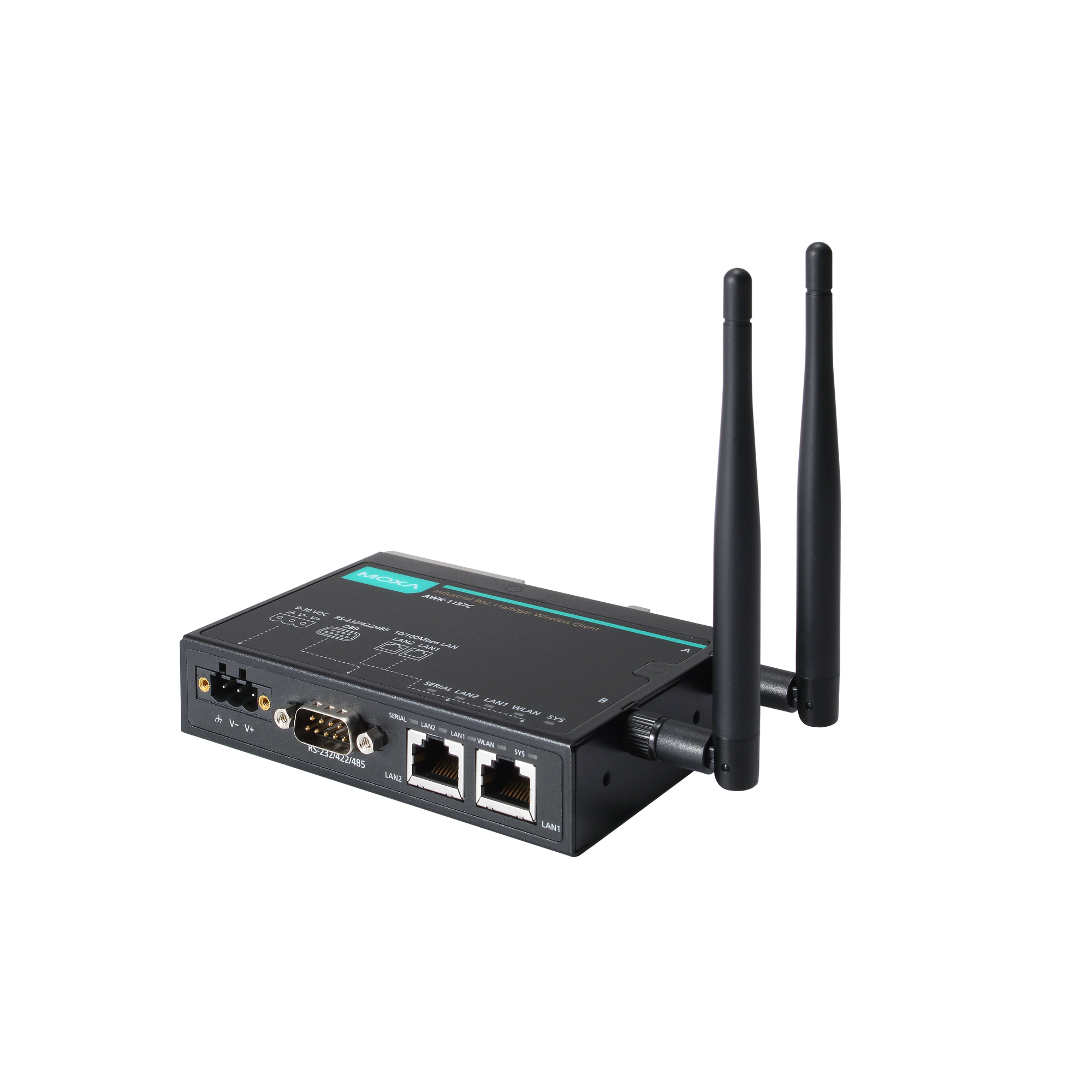

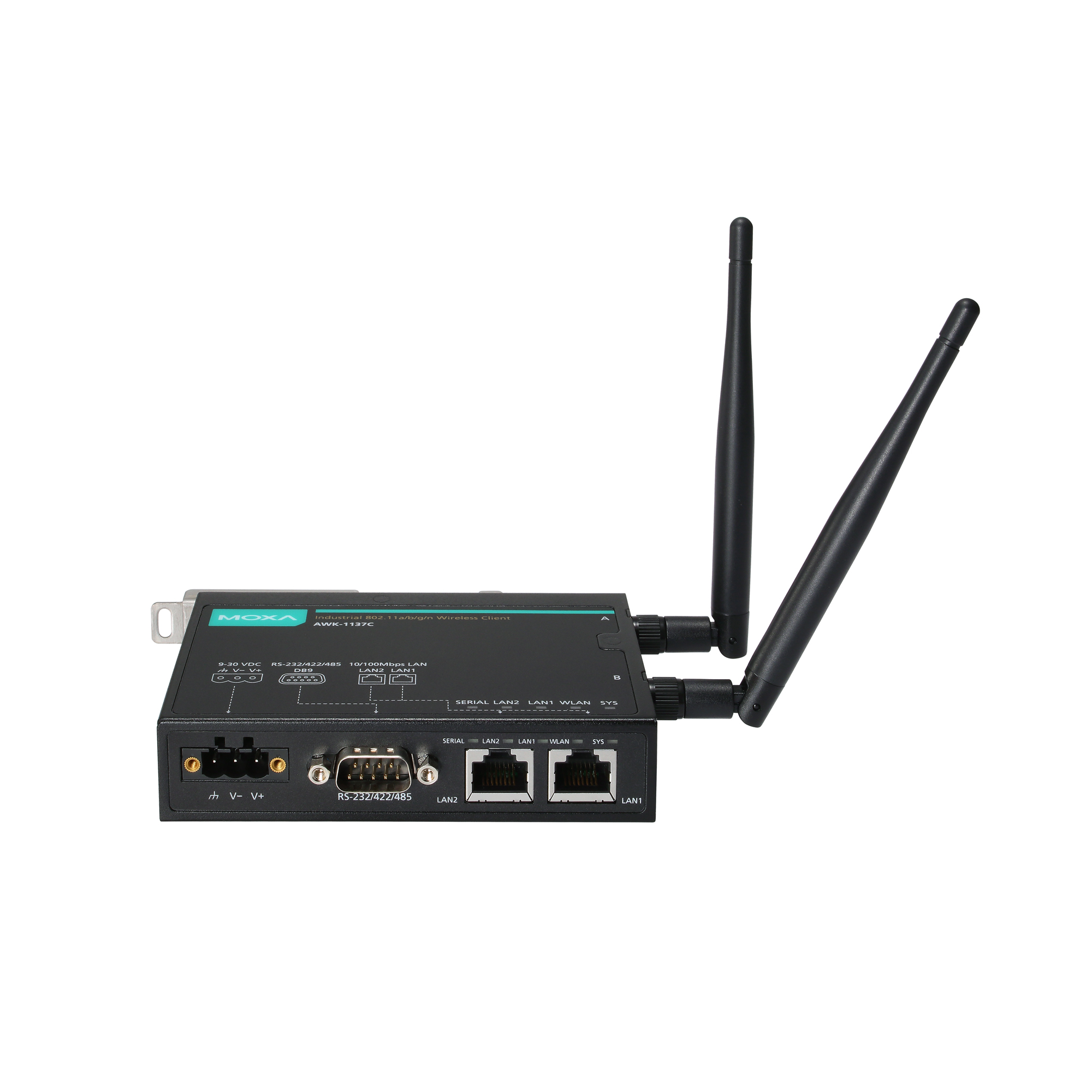

Quantity AWK-1137C Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • WLAN Standards

    802.11a/b/g/n
    802.11i Wireless Security

  • Modulation Type

    DSSS
    OFDM
    MIMO-OFDM

  • Frequency Band for US (20 MHz operating channels)

    2.412 to 2.462 GHz (11 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels)
    5.500 to 5.700 GHz (11 channels)
    5.745 to 5.825 GHz (5 channels)

  • Frequency Band for EU (20 MHz operating channels)

    2.412 to 2.472 GHz (13 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels)
    5.500 to 5.700 GHz (11 channels)

  • Frequency Band for JP (20 MHz operating channels)

    2.412 to 2.484 GHz (14 channels)
    5.180 to 5.240 GHz (4 channels)
    5.260 to 5.320 GHz (4 channels)
    5.500 to 5.700 GHz (11 channels)

  • Wireless Security

    WEP encryption (64-bit and 128-bit)
    WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
    WPA/WPA2-Personal

  • Transmission Rate

    802.11b: 1 to 11 Mbps
    802.11a/g: 6 to 54 Mbps
    802.11n: 6.5 to 300 Mbps

  • Transmitter Power for 802.11a

    23±1.5 dBm @ 6 to 24 Mbps
    21±1.5 dBm @ 36 Mbps
    20±1.5 dBm @ 48 Mbps
    18±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (5 GHz)

    23±1.5 dBm @ MCS0/8 20 MHz
    18±1.5 dBm @ MCS7/15 20 MHz
    23±1.5 dBm @ MCS0/8 40 MHz
    18±1.5 dBm @ MCS7/15 40 MHz

  • Transmitter Power for 802.11b

    26±1.5 dBm @ 1 Mbps
    26±1.5 dBm @ 2 Mbps
    26±1.5 dBm @ 5.5 Mbps
    25±1.5 dBm @ 11 Mbps

  • Transmitter Power for 802.11g

    23±1.5 dBm @ 6 to 24 Mbps
    22±1.5 dBm @ 36 Mbps
    20±1.5 dBm @ 48 Mbps
    19±1.5 dBm @ 54 Mbps

  • Transmitter Power for 802.11n (2.4 GHz)

    23±1.5 dBm @ MCS0/8 20 MHz
    17±1.5 dBm @ MCS7/15 20 MHz
    23±1.5 dBm @ MCS0/8 40 MHz
    17±1.5 dBm @ MCS7/15 40 MHz

  • Transmitter Power



  • Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

    Typ. -90 @ 6 Mbps
    Typ. -88 @ 9 Mbps
    Typ. -87 @ 12 Mbps
    Typ. -85 @ 18 Mbps
    Typ. -81 @ 24 Mbps
    Typ. -78 @ 36 Mbps
    Typ. -74 @ 48 Mbps
    Typ. -73 @ 54 Mbps
    Note

  • Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

    Typ. -69 dBm @ MCS7 20 MHz
    Typ. -70 dBm @ MCS15 20 MHz
    Typ. -64 dBm @ MCS7 40 MHz
    Typ. -66 dBm @ MCS15 40 MHz
    Note

  • Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

    Typ. -89 dBm @ 1 Mbps
    Typ. -89 dBm @ 2 Mbps
    Typ. -89 dBm @ 5.5 Mbps
    Typ. -88 dBm @ 11 Mbps

  • Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

    Typ. -88 dBm @ 6 Mbps
    Typ. -88 dBm @ 9 Mbps
    Typ. -88 dBm @ 12 Mbps
    Typ. -87 dBm @ 18 Mbps
    Typ. -84 dBm @ 24 Mbps
    Typ. -81 dBm @ 36 Mbps
    Typ. -77 dBm @ 48 Mbps
    Typ. -75 dBm @ 54 Mbps

  • Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

    Typ. -70 dBm @ MCS7 20 MHz
    Typ. -70 dBm @ MCS15 20 MHz
    Typ. -64 dBm @ MCS7 40 MHz
    Typ. -65 dBm @ MCS15 40 MHz

  • WLAN Operation Mode

    Client, Client-Router, Slave, Sniffer

  • Antenna

    External, 2/2 dBi, Omni-directional

  • Antenna Connectors

    2 RP-SMA female

  • 10/100BaseT(X) Ports (RJ45 connector)

    2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.1Q for VLAN Tagging

  • Management

    DHCP Server/Client, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Proxy ARP, VLAN, Wireless Search Utility, MXview, MXview Wireless, MXconfig

  • Routing

    Port forwarding, Static Route, NAT

  • Security

    HTTPS/SSL, RADIUS, SSH

  • Time Management

    NTP Client, SNTP Client

  • Filter

    ICMP, MAC address, IP protocol, Port-based

  • Connector

    DB9 male

  • Serial Standards

    RS-232, RS-422/485, RS-232/422/485

  • Operation Modes

    Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Baudrate

    75 bps to 921.6 kbps

  • Serial Data Log

    256 KB

  • RS-232

    TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • LED Indicators

    SYS, LAN1, LAN2, WLAN, Serial

  • Buttons

    Reset button

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions

    77.1 x 115.5 x 26 mm (3.04 x 4.55 x 1.02 in)

  • Weight

    470 g (1.03 lb)

  • Installation

    DIN-rail mounting, Wall mounting (with optional kit)

  • Input Voltage

    9 to 30 VDC

  • Power Connector

    1 removable 3-contact terminal block(s)

  • Power Consumption

    11.7 W (max.)

  • Reverse Polarity Protection

    Supported

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4, EN 55032/24

  • EMI

    CISPR 22, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Radio

    EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-1137C, ANATEL, MIC, NCC, SRRC, WPC, KC, RCM

  • Road Vehicles

    E mark E1

  • Safety

    EN 60950-1, UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Time

    1,125,942 hrs

  • Standards

    Telcordia SR332
