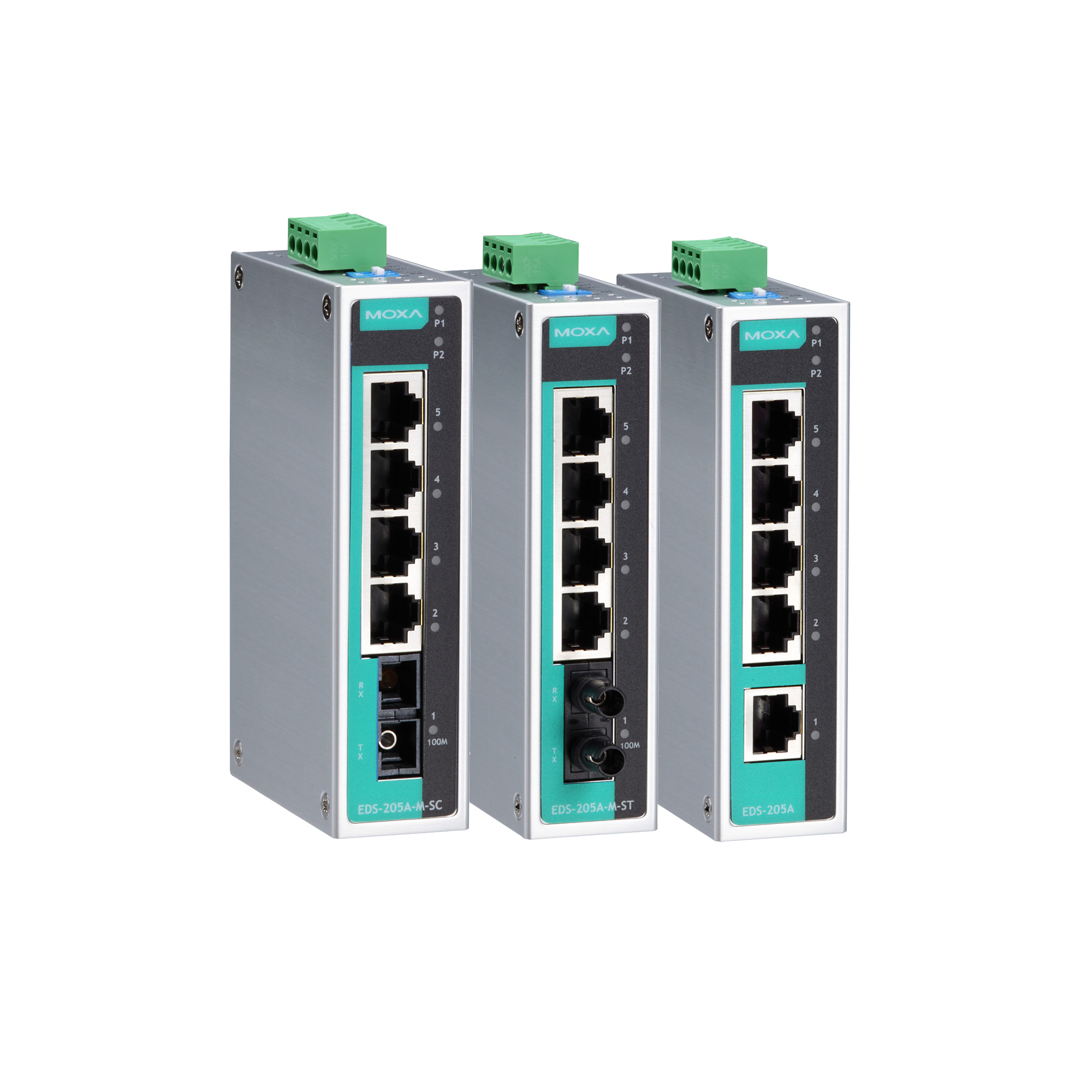

EDS-205A

EDS-205A/205A-T: 5
EDS-205A-M-SC/M-ST/S-SC Series: 4

All models support:
Auto negotiation speed
Full/half duplex mode
Auto MDI/MDI-X connection

EDS-205A-M-SC Series: 1

EDS-205A-M-ST Series: 1

EDS-205A-S-SC Series: 1

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control

Read more

1 K

384 kbits

Store and Forward

1 removable 4-contact terminal block(s)

EDS-205A/205A-T: 0.09 A @ 24 VDC
EDS-205A-M-SC/M-ST/S-SC Series: 0.1 A @ 24 VDC

12/24/48 VDC
Redundant dual inputs

9.6 to 60 VDC

Supported

Supported

Broadcast storm protection

Aluminum

IP30

30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)

175 g (0.39 lb)

DIN-rail mounting
Wall mounting (with optional kit)

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

-40 to 85°C (-40 to 185°F)

5 to 95% (non-condensing)

EN 55032/24

CISPR 32, FCC Part 15B Class A

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF

IECEx
ATEX
Class I Division 2

ABS
LR
NK
DNV

EN 50121-4

UL 508

IEC 60068-2-27

NEMA TS2

IEC 60068-2-6

IEC 60068-2-31

EDS-205A: 3,316,504 hrs
EDS-205A-M/S: 3,045,679 hrs

Telcordia (Bellcore), GB
