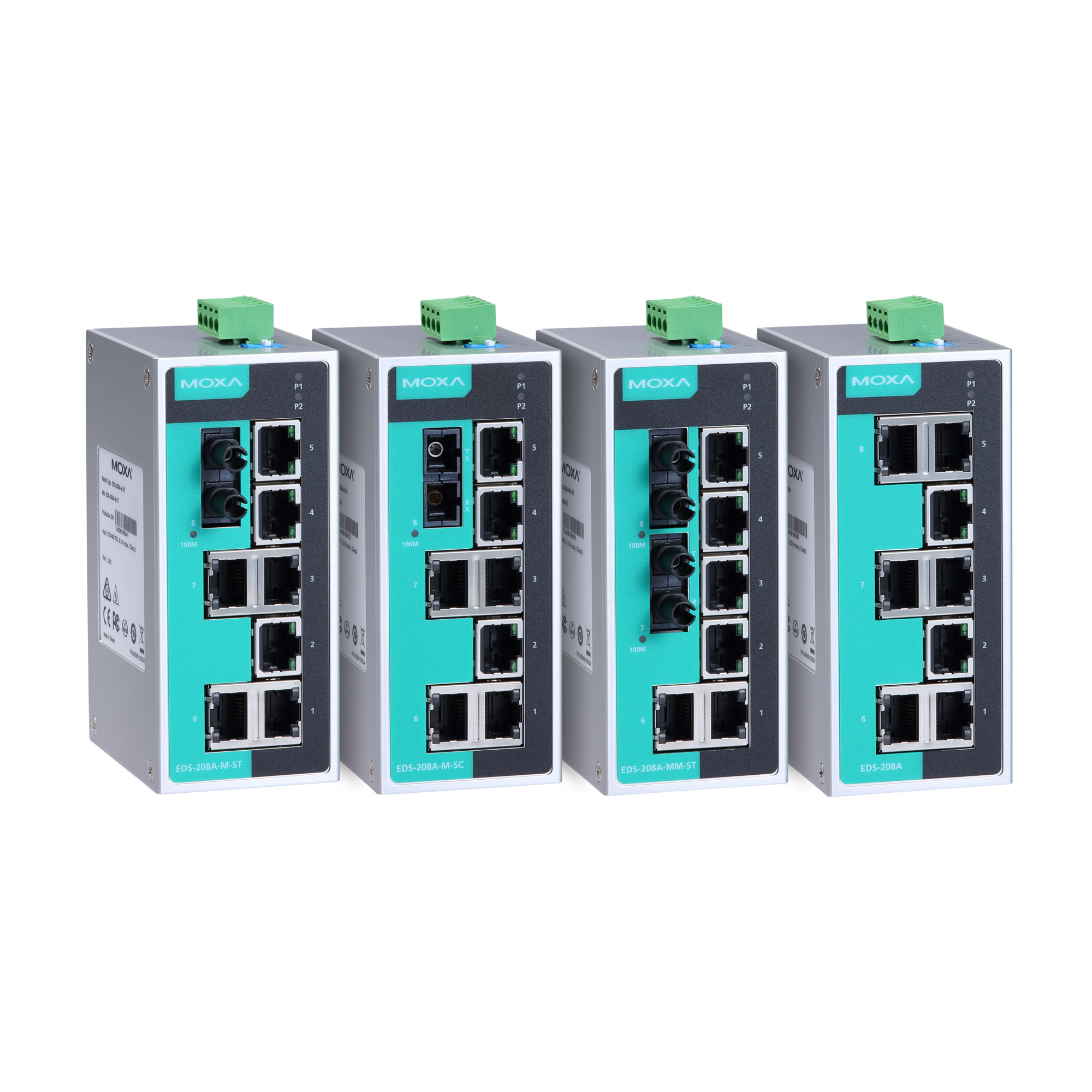

Quantity EDS-208A Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument
  • 10/100BaseT(X) Ports (RJ45 connector)

    EDS-208A/208A-T Models: 8
    EDS-208A-M-SC/M-ST/S-SC Models: 7
    EDS-208A-MM-SC/MM-ST/SS-SC Models: 6

    All Models Support:
    Auto negotiation speed
    Full/Half duplex mode
    Auto MDI/MDI-X connection

  • 100BaseFX Ports (multi-mode SC connector)

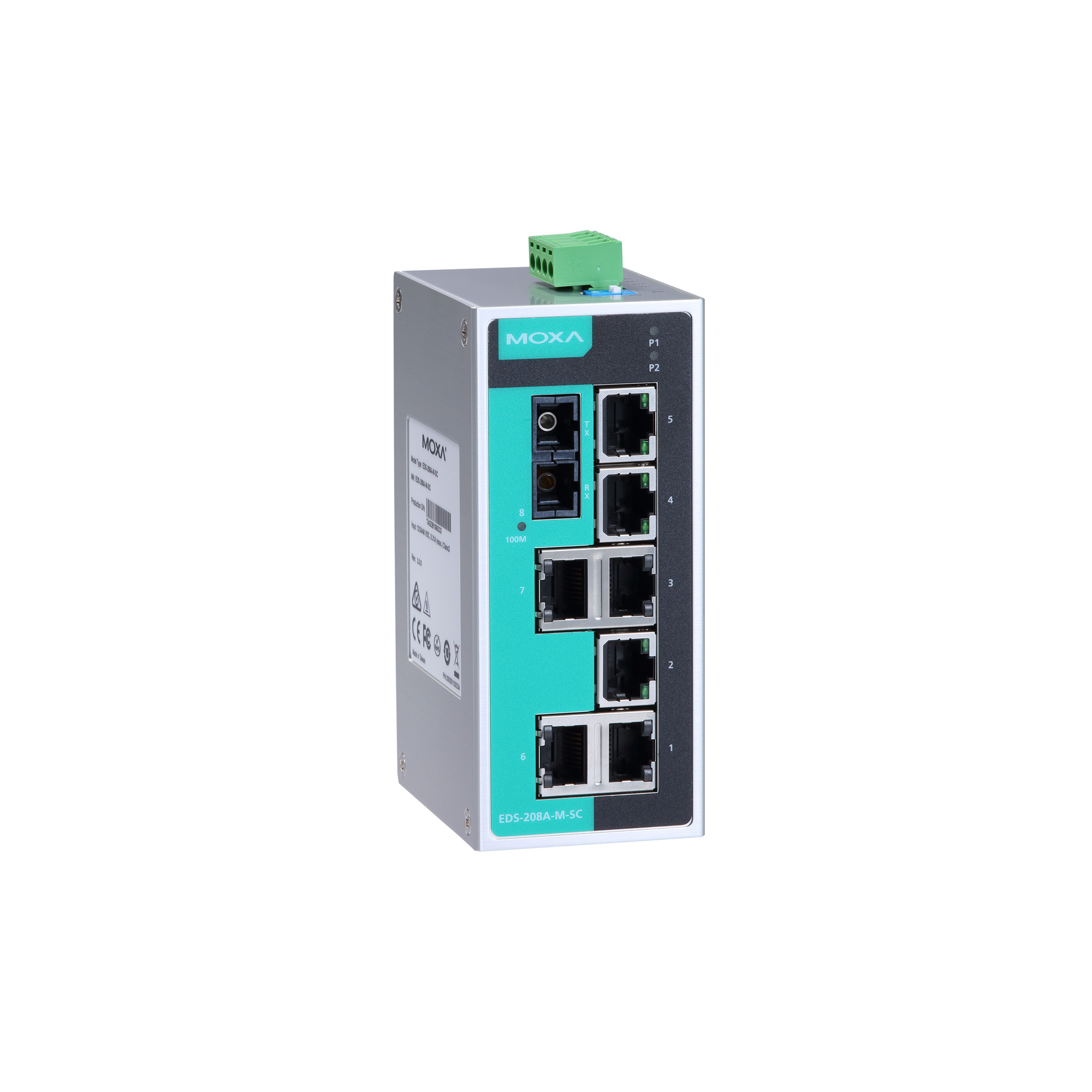

    EDS-208A-M-SC Models: 1
    EDS-208A-MM-SC Models: 2

  • 100BaseFX Ports (multi-mode ST connector)

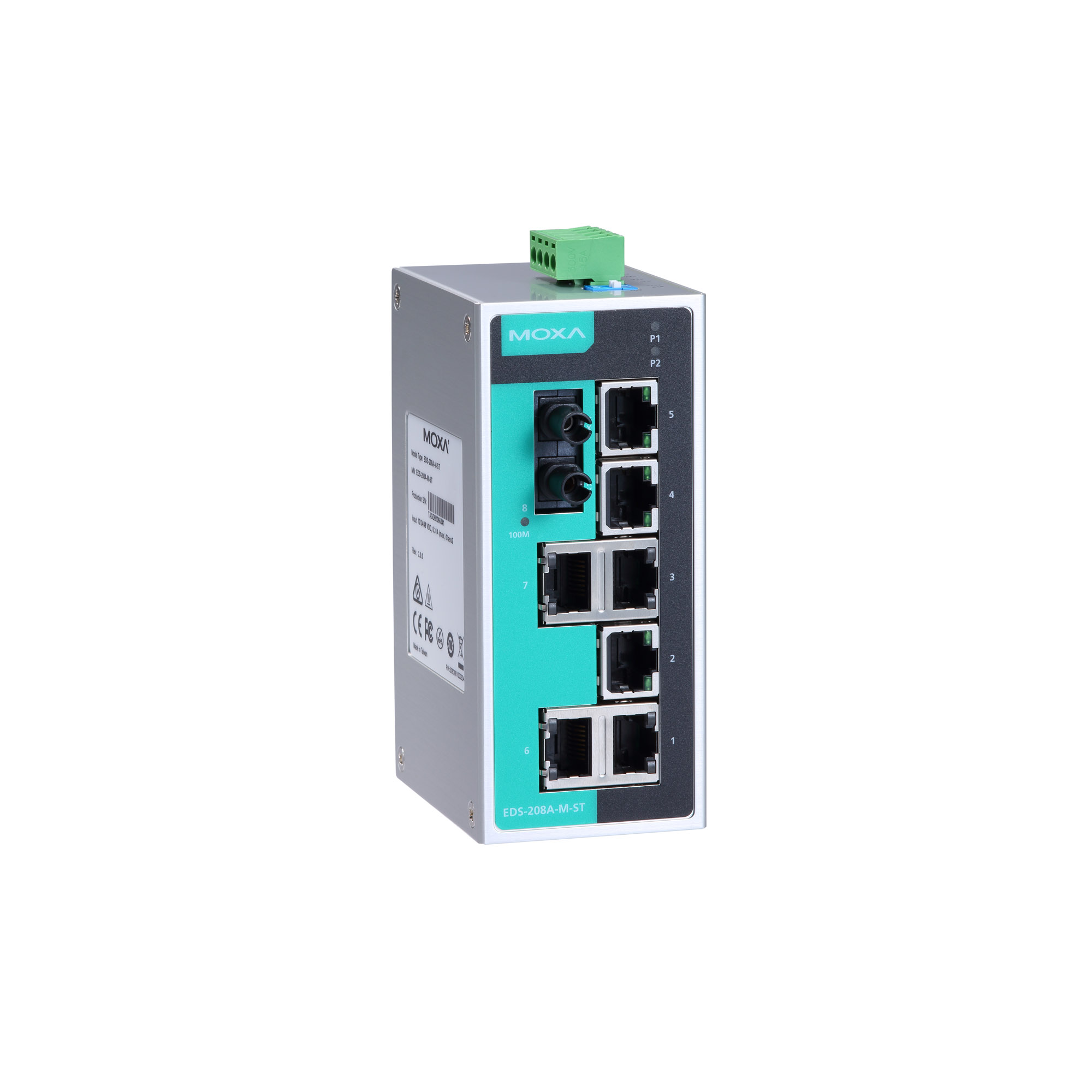

    EDS-208A-M-ST Models: 1
    EDS-208A-MM-ST Models: 2

  • 100BaseFX Ports (single-mode SC connector)

    EDS-208A-S-SC Models: 1
    EDS-208A-SS-SC Models: 2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X) and 100BaseFX
    IEEE 802.3x for flow control

  • Optical Fiber



  • MAC Table Size

    2 K

  • Packet Buffer Size

    768 kbits

  • Processing Type

    Store and Forward

  • Connection

    1 removable 4-contact terminal block(s)

  • Input Current

    EDS-208A/208A-T, EDS-208A-M-SC/M-ST/S-SC Models: 0.11 A @ 24 VDC
    EDS-208A-MM-SC/MM-ST/SS-SC Models: 0.15 A @ 24 VDC

  • Input Voltage

    12/24/48 VDC
    Redundant dual inputs

  • Operating Voltage

    9.6 to 60 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Ethernet Interface

    Broadcast storm protection

  • Housing

    Aluminum

  • IP Rating

    IP30

  • Dimensions

    50 x 114 x 70 mm (1.96 x 4.49 x 2.76 in)

  • Weight

    275 g (0.61 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 508
    EN 62368-1 (LVD)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Railway

    EN 50121-4

  • Traffic Control

    NEMA TS2

  • Vibration

    IEC 60068-2-6

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-31

  • Maritime

    ABS
    LR
    NK
    DNV

  • Time

    EDS-208A: 3,248,014 hrs
    EDS-208A-MM/SS: 2,705,157 hrs
    EDS-208A-M/S: 2,943,335 hrs

  • Standards

    Telcordia (Bellcore), GB
