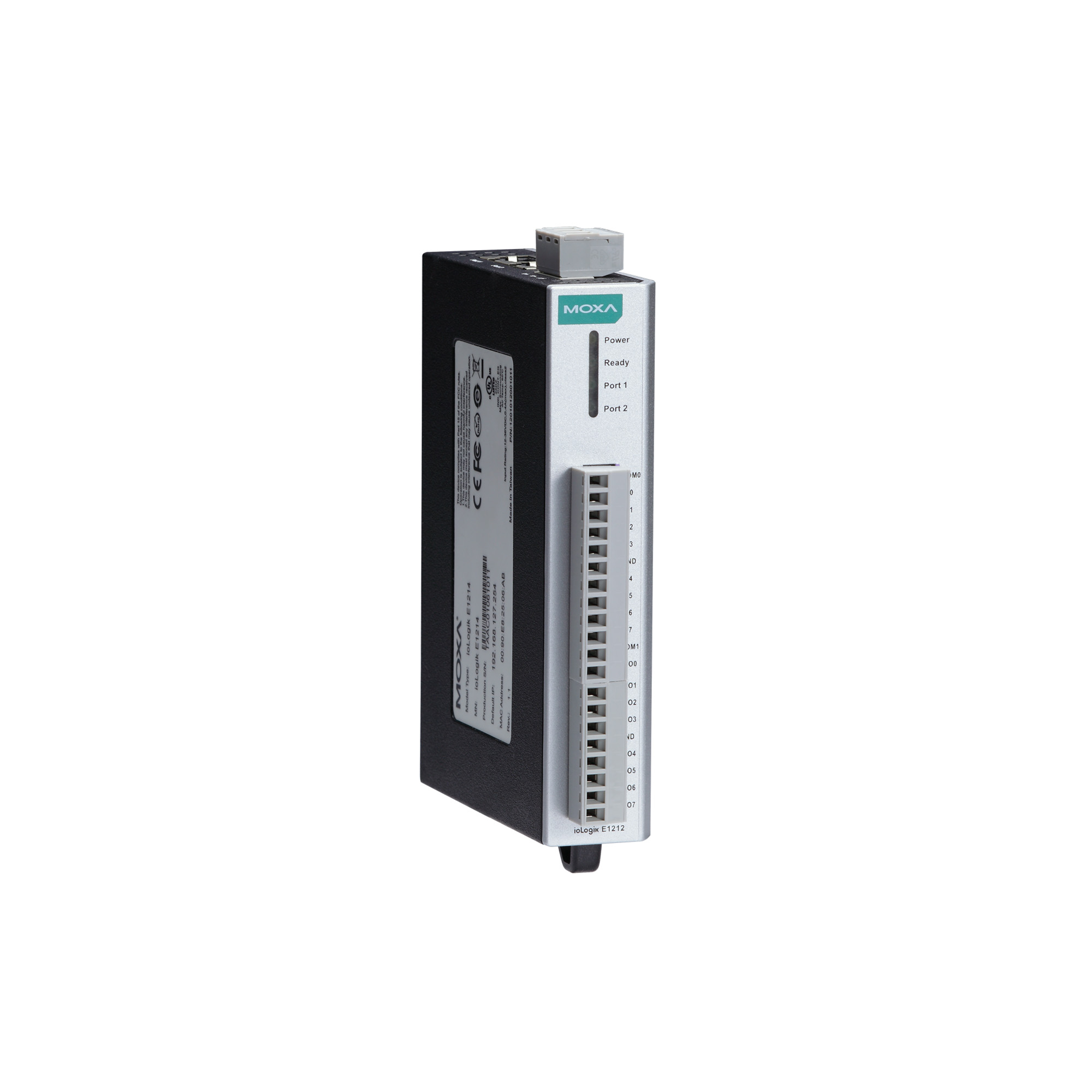

ioLogik E1200

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Quantity ioLogik E1200 Series
Type Medical wireless communication equipment
138-1629-4533
Attachment Download
DetailDocument

  • Digital Input Channels

    ioLogik E1210 Series: 16
    ioLogik E1212/E1213 Series: 8
    ioLogik E1214 Series: 6
    ioLogik E1242 Series: 4

  • Digital Output Channels

    ioLogik E1211 Series: 16
    ioLogik E1213 Series: 4

  • Configurable DIO Channels (by jumper)

    ioLogik E1212 Series: 8
    ioLogik E1213/E1242 Series: 4

  • Relay Channels

    ioLogik E1214 Series: 6

  • Analog Input Channels

    ioLogik E1240 Series: 8
    ioLogik E1242 Series: 4

  • Analog Output Channels

    ioLogik E1241 Series: 4

  • RTD Channels

    ioLogik E1260 Series: 6

  • Thermocouple Channels

    ioLogik E1262 Series: 8

  • Isolation

    3k VDC or 2k Vrms

  • Buttons

    Reset button

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    Dry contact
    Wet contact (NPN or PNP)

  • I/O Mode

    DI or event counter

  • Dry Contact

    On: short to GND
    Off: open

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Counter Frequency

    250 Hz

  • Digital Filtering Time Interval

    Software configurable

  • Points per COM

    ioLogik E1210/E1212 Series: 8 channels
    ioLogik E1213 Series: 12 channels
    ioLogik E1214 Series: 6 channels
    ioLogik E1242 Series: 4 channels

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Type

    ioLogik E1211/E1212/E1242 Series: Sink
    ioLogik E1213 Series: Source

  • I/O Mode

    DO or pulse output

  • Current Rating

    ioLogik E1211/E1212/E1242 Series: 200 mA per channel
    ioLogik E1213 Series: 500 mA per channel

  • Pulse Output Frequency

    500 Hz (max.)

  • Over-Current Protection

    ioLogik E1211/E1212/E1242 Series: 2.6 A per channel @ 25°C
    ioLogik E1213 Series: 1.5 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Over-Voltage Protection

    35 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Type

    Form A (N.O.) power relay

  • I/O Mode

    Relay or pulse output

  • Pulse Output Frequency

    0.3 Hz at rated load (max.)

  • Contact Current Rating

    Resistive load: 5 A @ 30 VDC, 250 VAC, 110 VAC

  • Contact Resistance

    100 milli-ohms (max.)

  • Mechanical Endurance

    5,000,000 operations

  • Electrical Endurance

    100,000 operations @ 5 A resistive load

  • Breakdown Voltage

    500 VAC

  • Initial Insulation Resistance

    1,000 mega-ohms (min.) @ 500 VDC

  • Note

    Ambient humidity must be non-condensing and remain between 5 and 95%. The relays may malfunction when operating in high condensation environments below 0°C.

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    Voltage/Current

  • I/O Type

    Differential

  • Resolution

    16 bits

  • Input Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA
    4 to 20 mA (with burn-out detection)

  • Accuracy

    ioLogik E1240/E1242:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1240-T/E1242-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C
    ±0.5% FSR @ -40 to 75°C

  • Sampling Rate

    ioLogik E1240: 12 samples/sec per module (shared between up to 8 channels)
    ioLogik E1242: 12 samples/sec per module (shared between up to 4 channels)

  • Built-in Resistor for Current Input

    120 ohms

  • Input Impedance

    10 mega-ohms (min.)

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    Voltage/Current

  • Output Range

    0 to 10 VDC
    0 to 20 mA
    4 to 20 mA

  • Resolution

    12-bit

  • Accuracy

    ioLogik E1241:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1241-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Load (Current Mode)

    Internal power: 400 ohms (max.)
    24 V external power: 1000 ohms (max.)

  • Voltage Output Short-Circuit Protection

    10 mA

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    PT1000 (-200 to 350°C)
    PT50, PT100, PT200, PT500 (-200 to 850°C)

  • Resistance Type

    310, 620, 1250, and 2200 ohms

  • Input Connection

    2- or 3-wire

  • Sampling Rate

    ioLogik E1260: 12 samples/sec per module (shared between up to 6 channels)

  • Resolution

    0.1°C or 0.1 ohms

  • Accuracy

    ioLogik E1260:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1260-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Input Impedance

    625 kilo-ohms (min.)

  • Connector

    Screw-fastened Euroblock terminal

  • Sensor Type

    J, K, T, E, R, S, B, N

  • Millivolt Type

    ±19.532 mV
    ±39.062 mV
    ±78.126 mV
    Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)

  • Resolution

    16 bits

  • Millivolt Accuracy

    ioLogik E1262:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -10 to 60°C

    ioLogik E1262-T:
    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • TC Accuracy

    Types J, T, E, S, B: ±5°C
    Types K, R, N: ±8°C

  • CJC Accuracy

    ±0.5°C @ 25°C
    ±1.5°C @ -40 to 75°C

  • Sampling Rate

    ioLogik E1262: 12 samples/sec per module (shared between up to 8 channels)

  • Input Impedance

    10 mega-ohms (min.)

  • 10/100BaseT(X) Ports (RJ45 connector)

    2, 1 MAC address (Ethernet bypass)

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP), Windows Utility (ioSearch), MCC Tool

  • Industrial Protocols

    Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, EtherNet/IP Adapter

  • Management

    RESTful API, SNMPv1/v2c, SNMPv1 Trap, HTTP, DHCP Client, BOOTP, IPv4, TCP/IP, UDP

  • MIB

    Device Settings MIB

  • Security

    Access control list

  • Authentication

    Local database

  • LED Indicators

    Power, Ready, Port 1, Port 2

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Mode

    Server (Slave)

  • Max. No. of Client Connections

    10

  • Mode

    Adapter

  • Max. No. of Scanner Connections

    9 (for read-only), 1 (for read/write)

  • Power Connector

    Screw-fastened Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 36 VDC

  • Power Consumption

    ioLogik E1210 Series: 110 mA @ 24 VDC
    ioLogik E1211 Series: 200 mA @ 24 VDC
    ioLogik E1212 Series: 155 mA @ 24 VDC
    ioLogik E1213 Series: 130 mA @ 24 VDC
    ioLogik E1214 Series: 188 mA @ 24 VDC
    ioLogik E1240 Series: 121 mA @ 24 VDC
    ioLogik E1241 Series: 194 mA @ 24 VDC
    ioLogik E1242 Series: 139 mA @ 24 VDC
    ioLogik E1260 Series: 110 mA @ 24 VDC
    ioLogik E1262 Series: 118 mA @ 24 VDC

  • Housing

    Plastic

  • Dimensions

    27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in)

  • Weight

    200 g (0.44 lb)

  • Installation

    DIN-rail mounting, Wall mounting

  • Wiring

    I/O cable, 16 to 26 AWG
    Power cable, 12 to 24 AWG

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    4000 m

  • EMC

    EN 55032/24, EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX, Class I Division 2

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    ioLogik E1210 Series: 671,345 hrs
    ioLogik E1211 Series: 923,027 hrs
    ioLogik E1212 Series: 561,930 hrs
    ioLogik E1213 Series: 715,256 hrs
    ioLogik E1214 Series: 808,744 hrs
    ioLogik E1240 Series: 474,053 hrs
    ioLogik E1241 Series: 888,656 hrs
    ioLogik E1242 Series: 502,210 hrs
    ioLogik E1260 Series: 660,260 hrs
    ioLogik E1262 Series: 631,418 hrs

  • Standards

    Telcordia SR332
