MKF 3 SW2.4LE-MED GP311

QR code
Quantity MKF 3 SW2.4LE-MED GP311

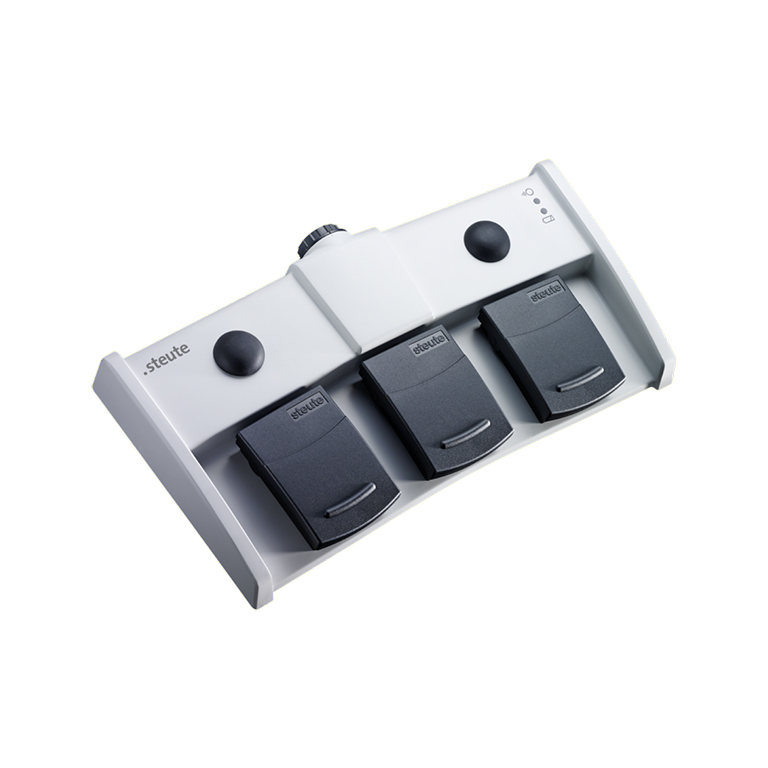

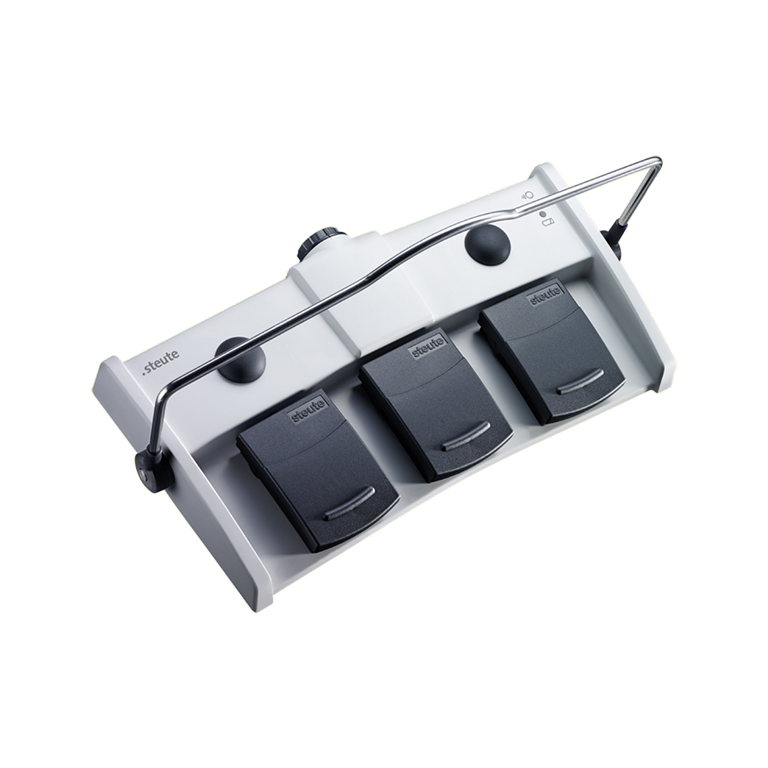

Type Three-pedal wireless medical foot switch
138-1629-4533
Attachment Download
DetailDocument
Applied standards
IEC 60601-1; ANSI/AAMI ES60601-1; IEC 62304; IEC 60529
Pedal
shock-proof thermoplastic, UL 94 V-0/V-2
Housing
shock-proof thermoplastic, UL 94 V-0, Pantone Cool Gray 1C
Degree of protection
IP X8 to IEC/EN 60529
Switching elements
reed contact / micro switch / Hall sensor
Switching system
1 – 2 NO contacts
Mechanical life
> 1 million operations
Voltage supply
3 commercially available batteries, type AA
Antenna
internal antenna
Wireless range
10 m (typical)
Radio technology
Frequency
2.4 - 2.4835 GHz
Channel bandwidth
2 MHz
Modulation principle
GFSK, adaptive frequency hopping of 40 channels
HF data rate
1 Mbps
Interface data rate
115.2 kBd (UART)
Output power
3 dBm - 7 dBm
Input sensitivity
-93 dBm
Conformity
Global: cCSAus IEC 60601-1, -1-2, -2-22, -2-43
Europe: CE EN 300 328; EN 62479; EN 301 489-1; EN 62368-1
USA: FCC Title 47 CFR, Part 15
Canada: IC RSS-247, Issue 1
Japan: ARIB STD-T66
Approximate specification product
