MKF 4-MED GP411
Type

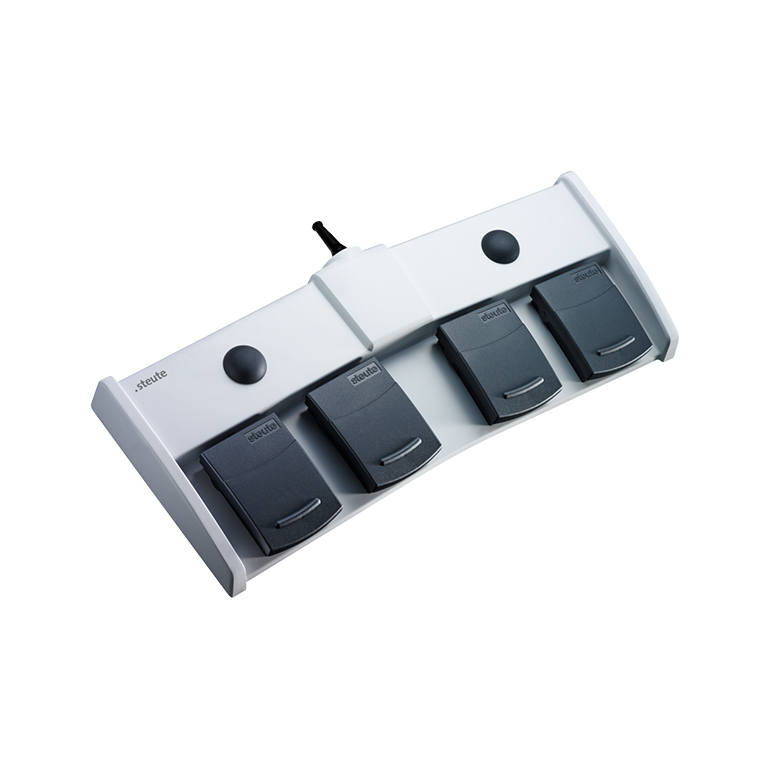

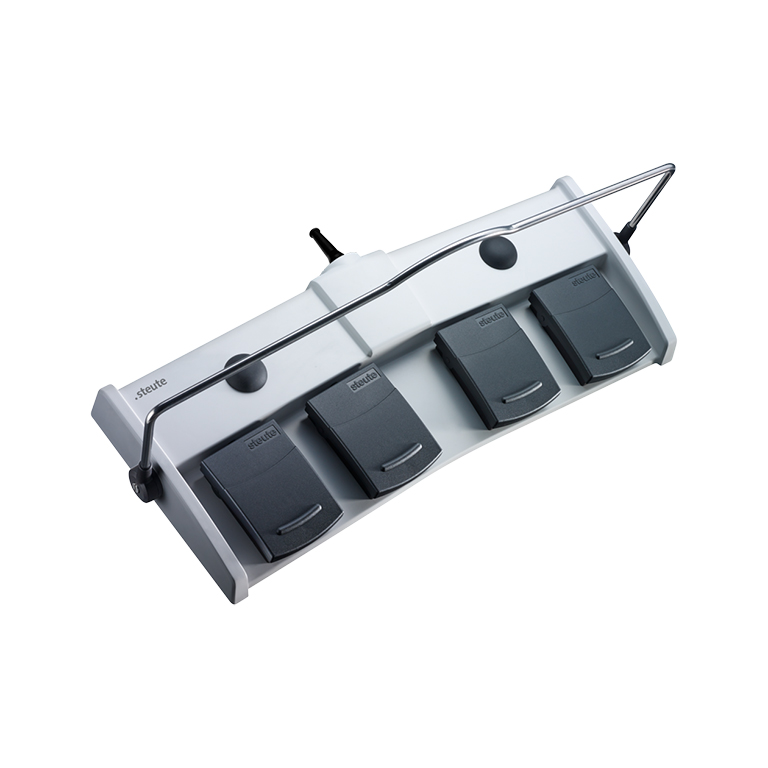

Wired medical foot switch with four pedals
138-1629-4533
Attachment Download
Detail
Document
Applied standards
IEC 60601-1; ANSI/AAMI ES60601-1; IEC 60529
Pedal
shock-proof thermoplastic, UL 94 V-0/V-2
Housing
shock-proof thermoplastic, UL 94 V-0, Pantone Cool Gray 1C
Degree of protection
IP X8 to IEC/EN 60529
Switching elements
reed contact / micro switch / Hall sensor
Switching system
1 – 2 NO contacts / 1 change-over / analogue output 0 … 10 VDC, 0 … 20 mA, 4 … 20 mA
Mechanical life
> 1 million operations
Connection
2 m cable, other lengths optionally available
Switching voltage
max. 25 VAC / 60 VDC
Switch-on current
max. 1 A
Switching capacity
Reed contacts: max. 20 VA, micro switch: max. 30 VA
Supply voltage Hall sensor
15 … 30 VDC / max. 25 mA
