MFS-MED GP71
    • 1/5

MFS-MED GP71

QR code
share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Quantity MFS-MED GP71
Type Configurable medical foot switch
138-1629-4533
Attachment Download
DetailDocument
Applied standards
IEC 60601-1; ANSI/AAMI ES60601-1; IEC 60529
Enclosure
GD-Al alloy, RAL 7035

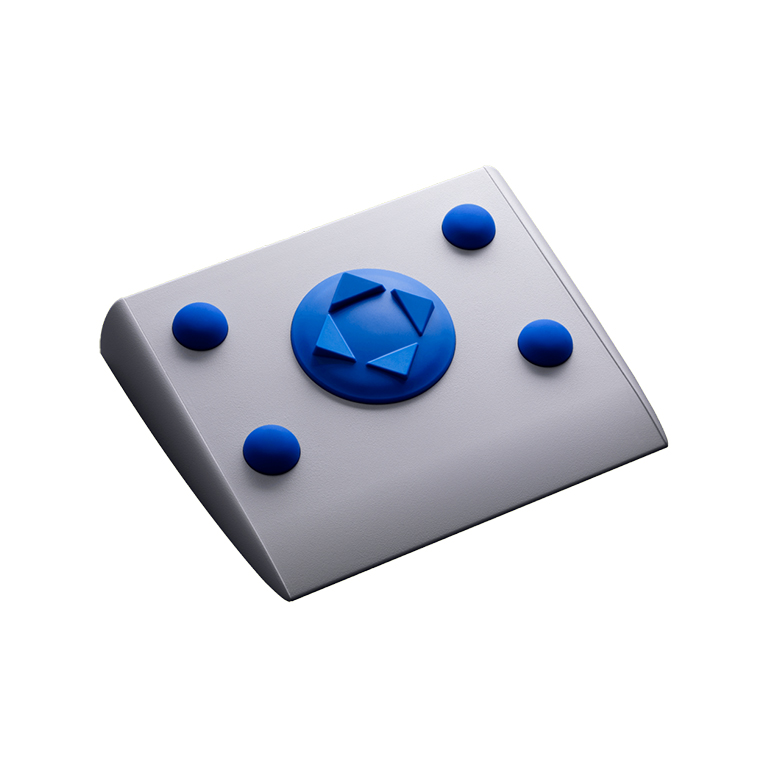

Joypad
robust, operating theatre approved silicone, RAL 5005
Actuator
robust, operating theatre approved silicone, RAL 5005
Rocker switch
GD-Zn alloy, RAL 7035
Degree of protection
IP X8 to IEC/EN 60529
Switching elements
joypad / actuator: micro switch,
rocker switch: reed contact / micro switch / Hall sensor
Switching system
joypad / actuator: 1 – 2 NO contacts,
rocker switch: 1 – 2 NO contacts / 1 change-over / analogue output 0 … 10 VDC, 0 … 20 mA, 4 … 20 mA
Mechanical life
> 1 million operations
Connection
2 m cable, other lengths optionally available
Switching voltage
max. 25 VAC / 60 VDC
Switch-on current
max. 1 A
Switching capacity
Reed contacts: max. 20 VA, micro switch: max. 30 VA
Approximate specification product
