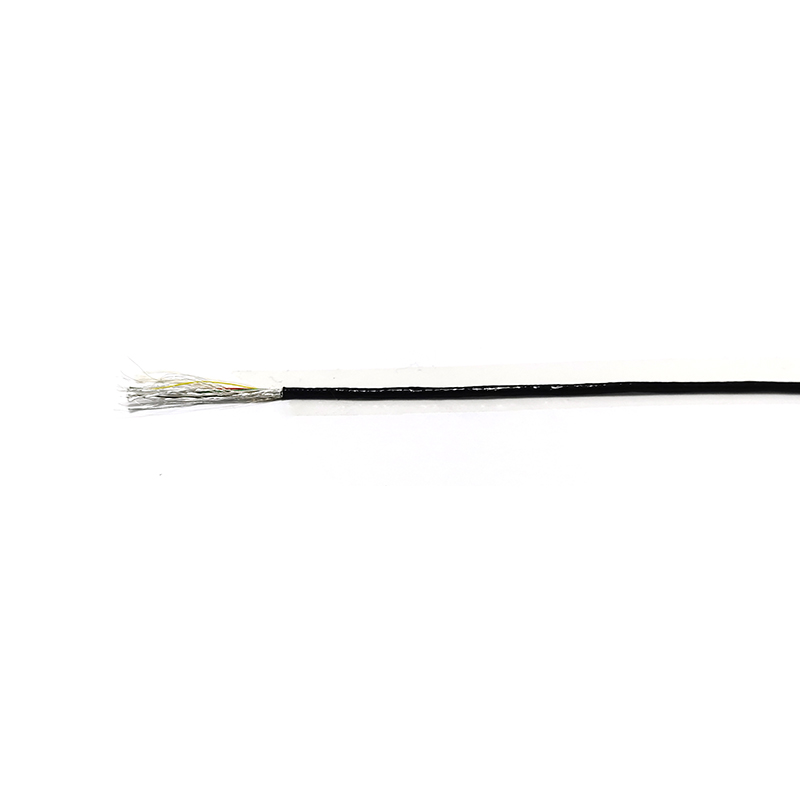

3Px36AWG+6Cx34AWG

QR code
Quantity SP30-010-112 Rev.1
Type Medical Wire
Material Tinned copper alloy
AWG specification 36
OD 2.2±0.1
Jacket Fluropolymer
Characteristic impedance 100
138-1629-4533
Attachment Download
DetailDocument

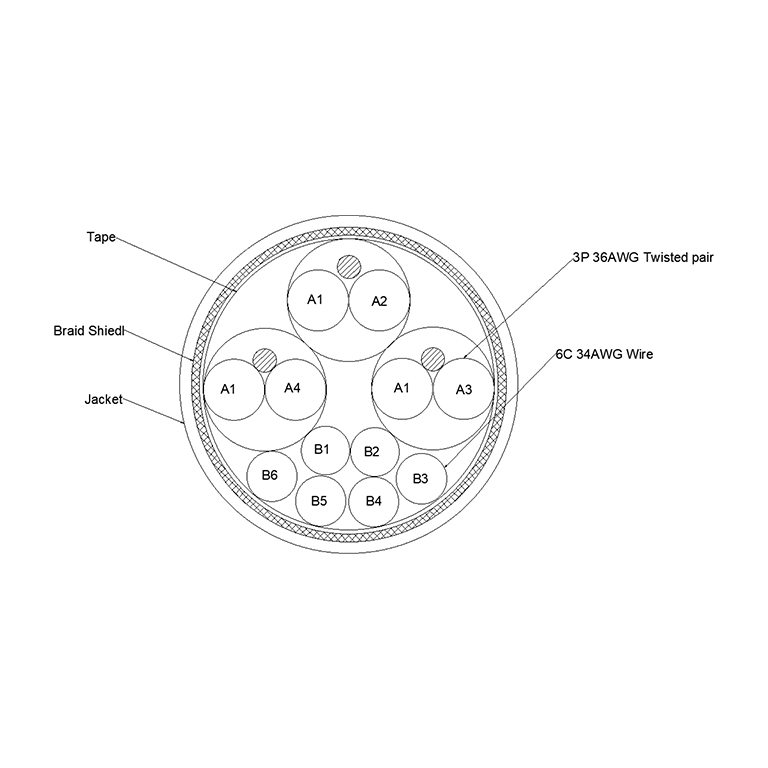

Conductor

        AWG:            3Px36                       6Cx34

        Material :      Tinned copper

        Stranding:     7/0.05 No./mm        7/0.064 No./mm

        Diameter :        0.15   mm                 0.42 mm




Insulation

        Material:     Fluropolymer

        Thickness:   0.115 mm           0.06 mm

        Diameter:    0.38 mm             0.32 mm

        Drain Wire:    7/0.05 Tinned copper




Shield

        Material :   AL-Foil / Mylar

        Thickness 0.025mm

        Overlap :    Min.25 %




Twisted

        Pitch    :   Max. 5.0 mm




BinderTape

        Material:   AL-Foil / Mylar




Braid Shield

        Material:        Tinned copper

        Strand :      0.05mm

        Coverage :    Nom.85 %


Approximate specification product
