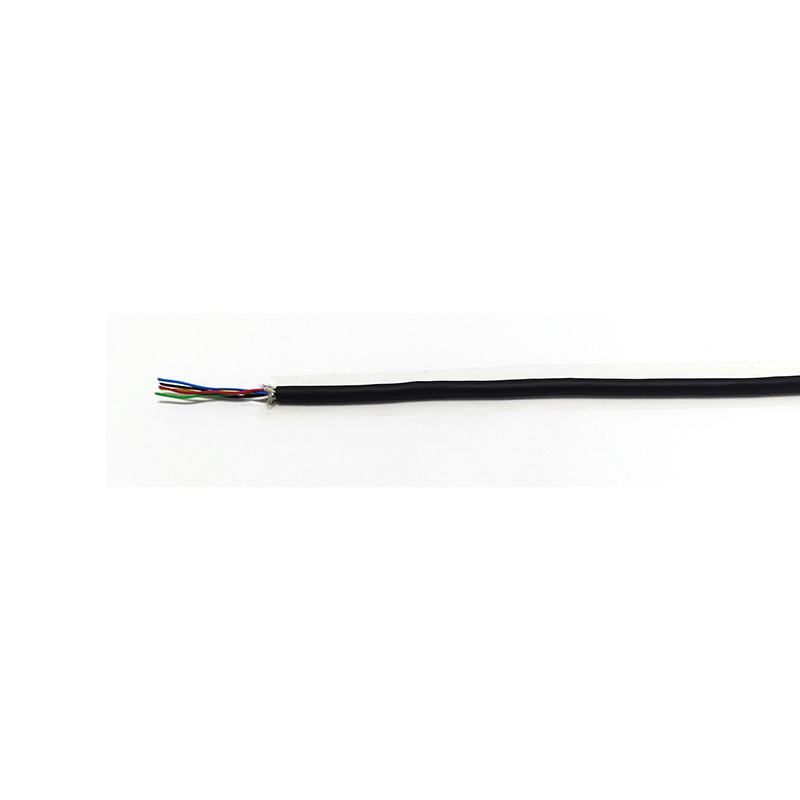

Quantity SP30-010-252 Rev.1
Type Medical Wire
Material Tinned copper
AWG specification 28
OD 4.4±0.2
Jacket PVC
Characteristic impedance 100
138-1629-4533
Attachment Download
DetailDocument

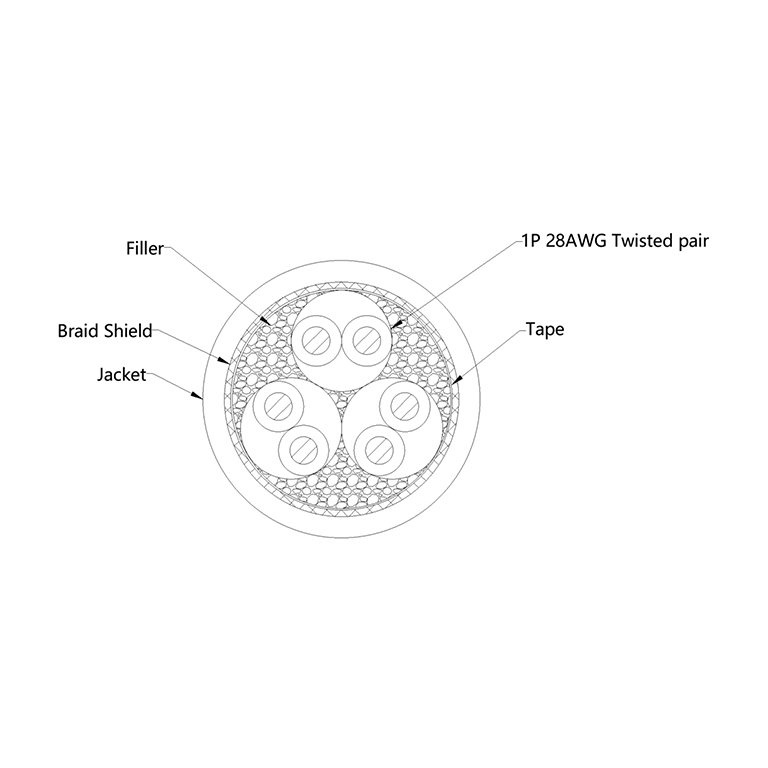

Conductor

        AWG:            3Px28

        Material :      Tinned copper

        Stranding:     19/0.08 No./mm




Insulation

        Material:                HDPE

        Thickness(Nom) :   0.20 mm

        Diameter :                 0.80 mm




Braid Shield

        Material :           Tinned copper

        Strand (Nom.) :   0.08 mm

        Coverage :          Nom.90 %




Jacket

        Material:                   Matte PVC

        Thickness(Nom) :   0.5 mm

        Diameter :                 4.4±0.2 mm


Approximate specification product
