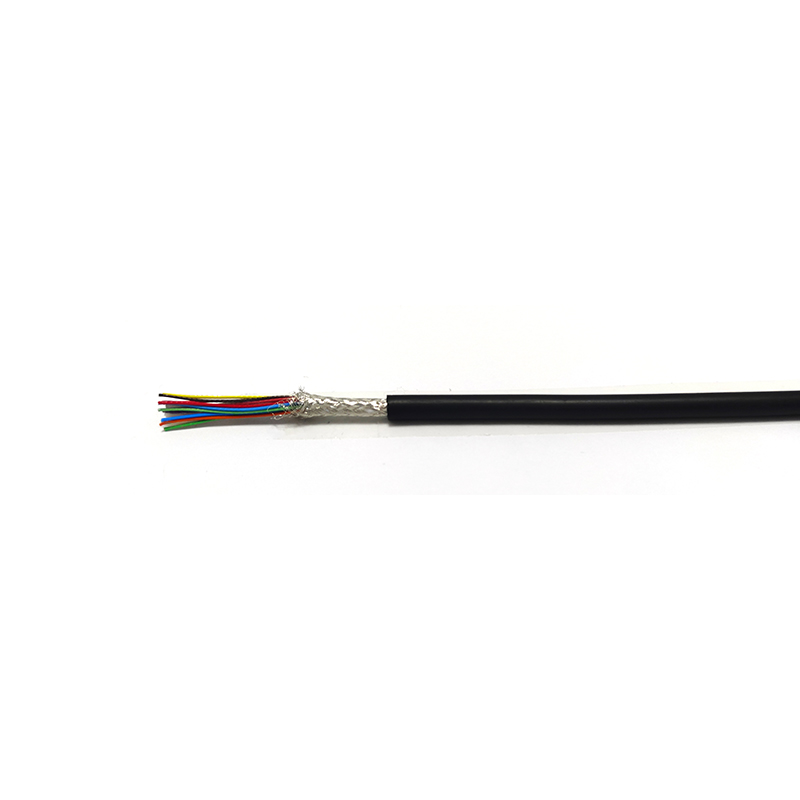

18x26AWG TPE

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-259 Rev.1

Type Medical Wire

Material Silver-plated copper

AWG specification 26

OD 6.00±0.25

Jacket TPE

Characteristic impedance Not Required

138-1629-4533

Attachment Download

DetailDocument

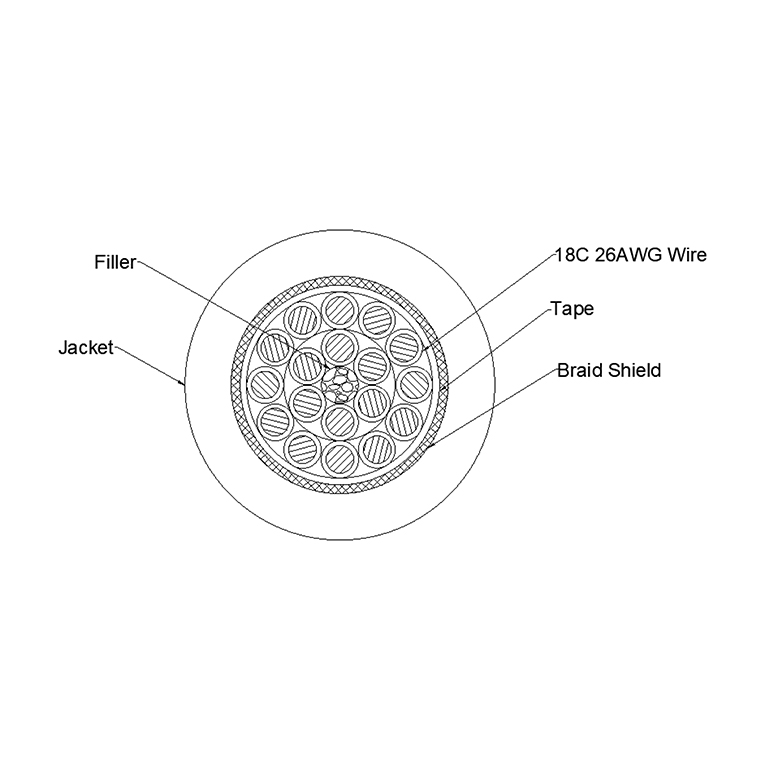

Conductor

AWG： 18x26

Material ： Tinned copper

Stranding： 19/0.10 No./mm

Insulation

Material： Fluoropolymer

Thickness： 0.10 mm

Diameter： 0.70 mm

Binder Tape

Material : PTFE

Braid Shield

Material : Tinned copper

Strand : 0.08 mm

Coverage : Nom .90 %

Jacket

Material： TPE

Thickness: 0.90 mm

Diameter : 6.00±0.25 mm
