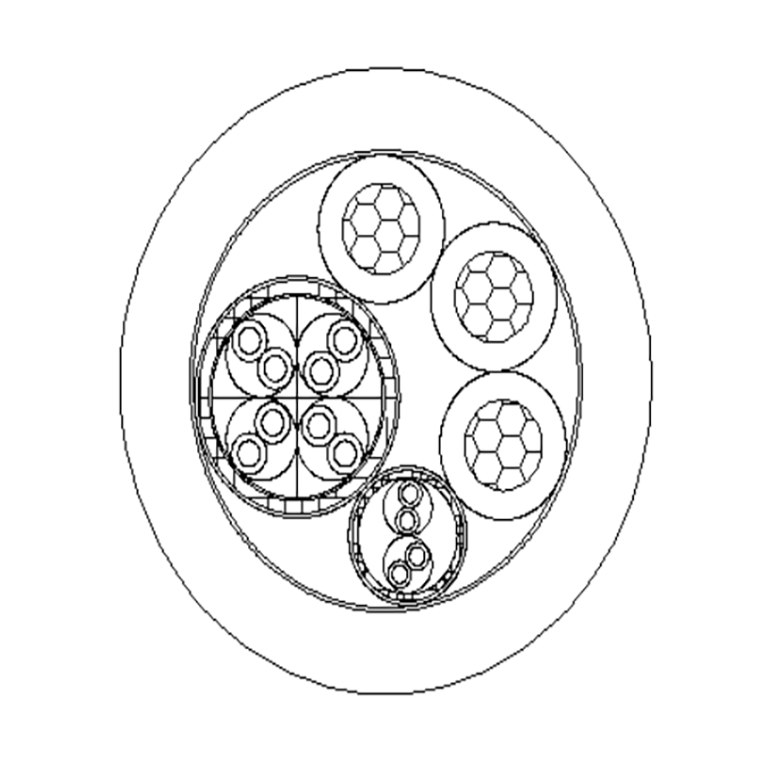

CAT6+14AWGx3C+24AWGx2P

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-295

Type Medical Wire

Material Tinned copper

AWG specification 24

OD 13.6±0.5

Jacket TPV

Characteristic impedance Not Required

138-1629-4533

Attachment Download

DetailDocument

Conductor

AWG： 3Cx14 2Px24

Material ： Tinned copper

Stranding： 1.8±0.1 No./mm 0.58±0.05 No./mm

Insulation

Material： PVC PE

Thickness： 0.7 mm 0.2 mm

Diameter： 3.2±0.1 mm 1.0±0.05 mm

Jacket

Material： TPV

Thickness： 1.5 mm

Diameter : 13.6±0.5 mm
