1/2

196x40AWG 110PF

QR code

share

WeChat

Sina Weibo

QQ

QQ space

Douban

Baidu Post Bar

Quantity SP30-010-240 Rev.1

Type Medical Wire

Material Tinned copper

AWG specification 40

OD 8.3±0.3

Jacket Medical PVC

Characteristic impedance Not Required

138-1629-4533

Attachment Download

DetailDocument

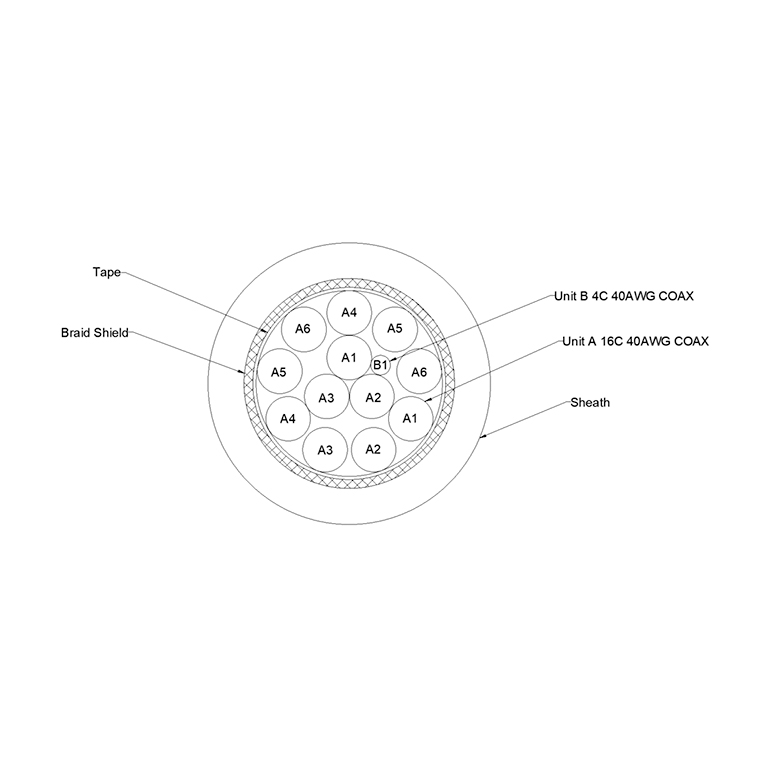

Conductor

AWG： 196x40

Material ： Tinned copper allloy

Stranding : 7/0.03 No./mm

Insulation

Material： PFA

Thickness： 0.075 mm

Diameter : 0.24 mm

Spiral Shield

Material： Tinned copper

Coverage： Min.95 %

Braid Shield

Material ： Tinned copper alloy

Strand (Nom.) : 0.08 mm

Coverage : Nom.90 %

Sheath

Material： Medical PVC

Thickness(Nom) : 0.75 mm

Diameter : 8.3±0.3 mm
