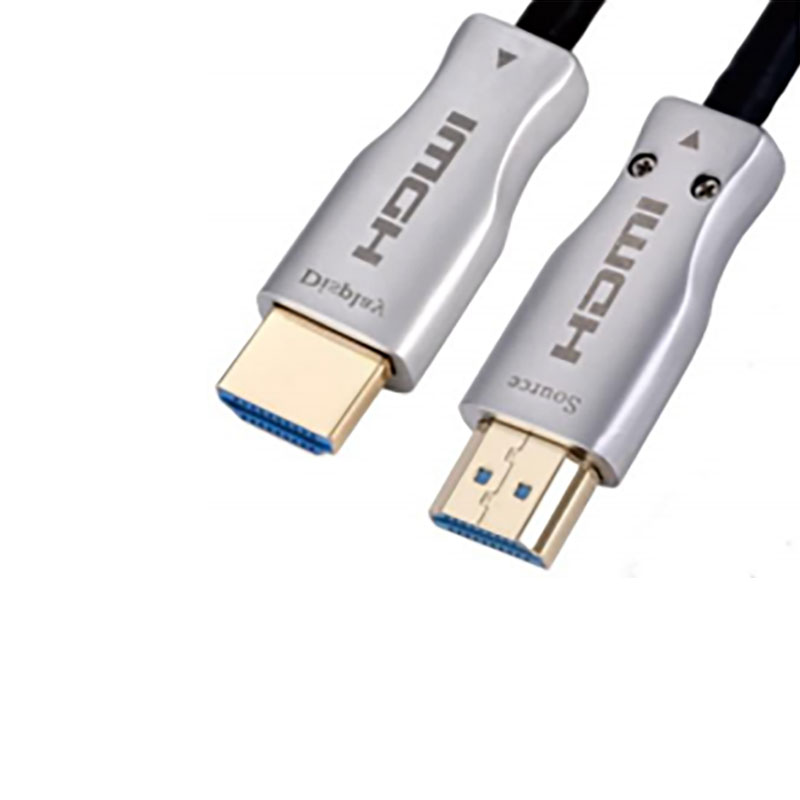

HDMI 2.1 AOC

Standard HDMI interface,compatible for HDMI 2.1 specification,support HDCP2.2;

The transmitted image signal has no compression and the image quality is not distorted;

Support 8K@60Hz photoelectric conversion;

Without the external power supply or signal amplifer,it can work through plug and play,can reach 100 meters;

The diameter of cable is only 4.6mm,which is suitable for installation and construction in narrow space;

Support customized product design.

Product Parameters

Parameter                         Min         Typcial       Max

Transmission rate               —             —        48Gbps

Operating temperature      -20 ℃        25℃        70℃

Operating consumption        —          0.35W        —

Support Association

Standard                      HDMI 2.1、HDMI 2.0、HDMI1.4

Refresh Rate                         Up to 120 Hz(4K)

Resolution                               Up to 8K(60Hz)

HEC、ARC、CEC，

HPD、 HDCP、HDR                         YES

Cable Length                                   1-100 M

CONN Type                                     TYPE-AM

Jacket Material                                    PVC

Color                                                  BLACK
