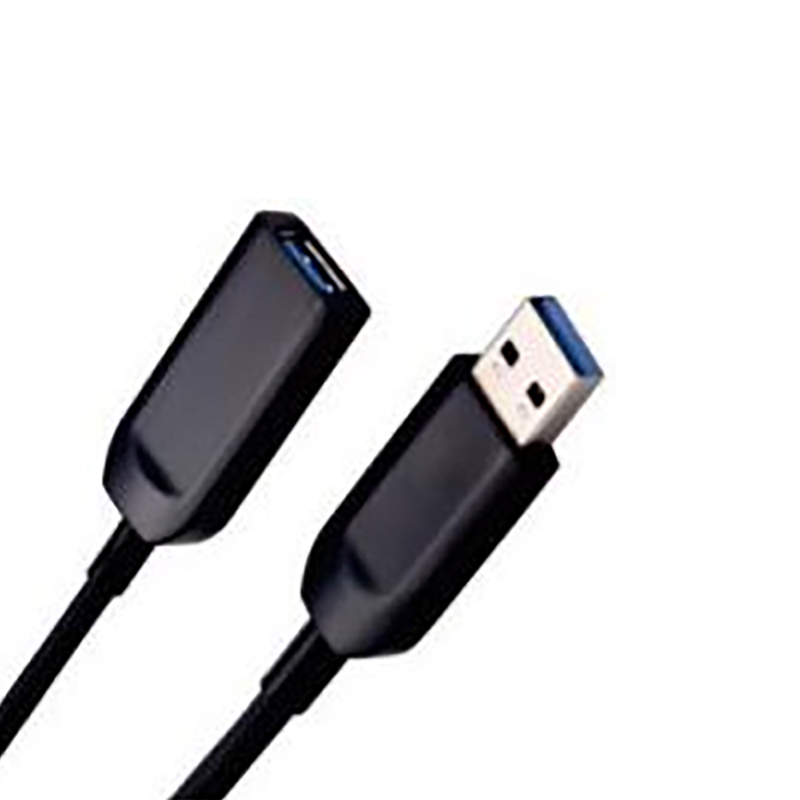

USB 3.2 TYPE AM to TYPE AF AOC U32-AA

QR code
Quantity U32-AA
Type USB
Material Tinned copper
Color BLACK
Jacket TPE
138-1629-4533
DetailDocument
Main Features


Standard USB Type C interface, compatible with USB specifications;


Support USB3.2Gen2 signal transmission, theoretical maximum support 10Gbps rate;


Support USB 2.0 signal transmission, support the theoretical maximum speed of 480Mbps;


Excellent EMI performance;


The diameter of the cable is only 4.6mm, which is suitable for installation and construction in narrow space;


Support custom product design.




Product Parameters


Parameter                         Min         Typcial       Max      Remark


Transmission rate               —             —        10Gbps     Usb3.2


Transmission rate               —             —        480Mbps   Usb2.0


Operating temperature      -20 ℃        25℃        70℃


Operating consumption        —           0.6W          —


Support Association

Standard                                  USB 3.2/USB 2.0


Bit Error Rate                                 1.00E- 12


Hot Plug                                             YES


E-marker                                             NO


Cable Length                                     1-40 M


CONN Type                                Type-AMAF


Jacket Material                                    TPE


Color                                                  BLACK

Approximate specification product
